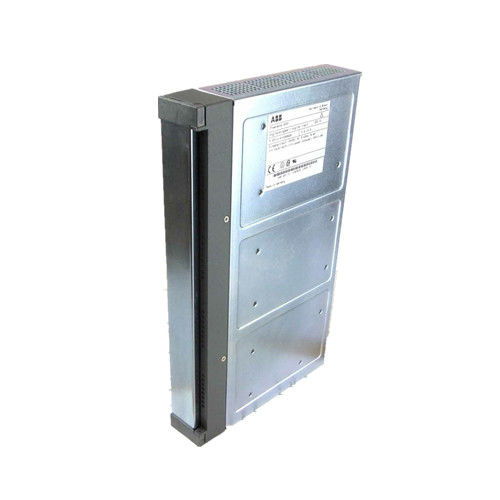

ABB 0369626M-EXC Exchange of DDI 01, Digital input as of V 3

From: | Author:Wang | Time :2025-04-29 | 70 visit: | Share:

ABB 0369626M-EXC Exchange of DDI 01, Digital input as of V 3

Product Overview

The ABB 0369626M-EXC DDI 01 Digital Input Module (V3 and above) is a key device for digital signal acquisition and transmission in industrial automation control systems. The ‘Exchange’ indicates that the module may be a product for replacement or updating, with mature and stable performance. It is mainly responsible for accurately converting and transmitting all kinds of digital signals on site, such as switch status, sensor signals, etc., to the control system, so as to carry out the subsequent logical judgement and control decision-making, which is widely used in electric power, chemical industry, manufacturing industry and other industrial fields, to ensure the efficient and stable operation of the industrial production process.


Technical Specification Parameters

Model number: 0369626M-EXC (DDI 01, version V3 and higher). This model number specifies the product identity of the module, where ‘Exchange’ indicates that it may be used for replacement or updating.

Number of input channels: 8. The module is capable of accessing 8 digital signals at the same time, which can meet the demand for digital signal acquisition on a certain scale, for example, in small and medium-sized automated production lines, where the operating status signals of several devices can be monitored at the same time.

Signal type: supports dry contact and wet contact signals, and can be flexibly configured according to the actual application scenarios. This means that it can be adapted to different types of on-site signal sources, such as dry contact signals from mechanical switches or wet contact signals from proximity sensors.

Input voltage range: 24 VDC. 24 VDC is used as the input power supply, which is the standard voltage used in industrial automation and is stable, easy to access and manage.


Resolution: 12-bit. Higher resolution enables the module to more accurately identify and distinguish between different states of digital signals, reduce signal errors and improve the accuracy of data acquisition, which is more suitable for industrial applications that require certain signal accuracy.

Communication interface: It has RS-485 and Ethernet interfaces, and supports a variety of industrial communication protocols, such as Modbus, PROFINET and so on. The RS-485 interface can realise long-distance communication connection, which is suitable for communication between industrial field devices; the Ethernet interface provides higher data transmission rate and more convenient network connection, which is convenient for data interaction with superior control system and monitoring system.

Operating temperature range: -20℃ to + 70℃. The module is able to work stably in a wide temperature range, whether in industrial environments in cold regions or in high-temperature workshops and other scenarios, it can perform digital signal acquisition tasks normally.

Humidity range: 5% to 95% (non-condensing). Can be operated in higher humidity environment, as long as the environment does not exist in the condensation phenomenon, will not have a significant impact on the performance of the module, suitable for such as textile workshop, food processing workshop and other industrial places with high humidity.

Protection class: IP20, which means that the module has a basic dustproof ability, can prevent the intrusion of solid foreign objects with a diameter of more than 12.5mm, to provide a certain degree of protection for the internal circuitry, suitable for general indoor industrial control environments.


Core features

High-precision Signal Acquisition: Advanced signal processing technology is used to accurately capture digital input signals, ensuring that the acquired signals accurately reflect the true state of the equipment on site. In automated production lines that require high signal accuracy, it can avoid equipment malfunction caused by signal errors and improve the reliability of the production process and product quality.

Stable communication performance: It supports a variety of industrial communication protocols, such as Modbus, PROFINET, etc., and can achieve stable and fast data interaction with different brands and models of PLC, DCS and other control systems. Equipped with reliable communication interface and good anti-interference ability, it can guarantee the accuracy and stability of signal transmission in the complex industrial electromagnetic environment and ensure that the control system obtains accurate digital input information in time.

Flexible Channel Configuration: The module has multiple digital input channels, and users can flexibly configure the channel parameters, such as signal type (dry contact or wet contact signal), filtering time, etc., according to the actual application requirements. This flexible configuration allows it to adapt to diverse industrial scenarios, whether it is a simple equipment status monitoring, or complex multi-signal acquisition system, can be easily dealt with.

Highly reliable design: with perfect self-diagnostic function, it can monitor the working status of the module itself in real time, and once a fault is detected, such as channel abnormality, communication interruption, etc., it can send out an alarm signal in time, and feed back to the operator through the indicator light or communication interface, so as to facilitate rapid positioning and troubleshooting. At the same time, the module adopts rugged hardware design, which can adapt to harsh industrial environments, such as high temperature, high humidity, strong vibration, etc., reducing equipment failures caused by environmental factors and improving the overall reliability of the system.


Precautions for use

1. Installation: Make sure the module is firmly installed to avoid vibration and shaking affecting signal acquisition and transmission. Connect the power supply and signal lines in strict accordance with the wiring diagram to ensure that the power supply voltage is stable and meets the requirements of 24VDC, and that the signal lines are connected correctly to prevent damage to the module or signal abnormality caused by wiring errors. At the same time, pay attention to the shielding of the signal lines, and ground the shielding layer reliably to enhance the anti-interference capability.

2. Configuration and debugging: Before configuring and debugging the parameters of the module, be sure to read the user manual carefully and operate according to the prescribed steps. In the process of configuration, pay attention to the signal type of the input channel, range and other parameter settings to ensure that it matches the actual access to the signal source. During debugging, gradually check the signal acquisition and transmission function of each channel, observe the status indicator of the module and the feedback information of the control system, and find and solve problems in time.

3. Daily maintenance: Clean the module regularly, use a dry soft cloth to wipe the surface dust, to prevent the accumulation of dust affecting the module heat dissipation and normal operation. Check whether the connecting cable of the module is loose and whether the interface is damaged to ensure stable and reliable communication and power connection. Regularly check the module's self-diagnostic information and alarm records, and carry out timely investigation and treatment of potential faults and dangers to prolong the module's service life and ensure the stable operation of the system.
