Product basic information

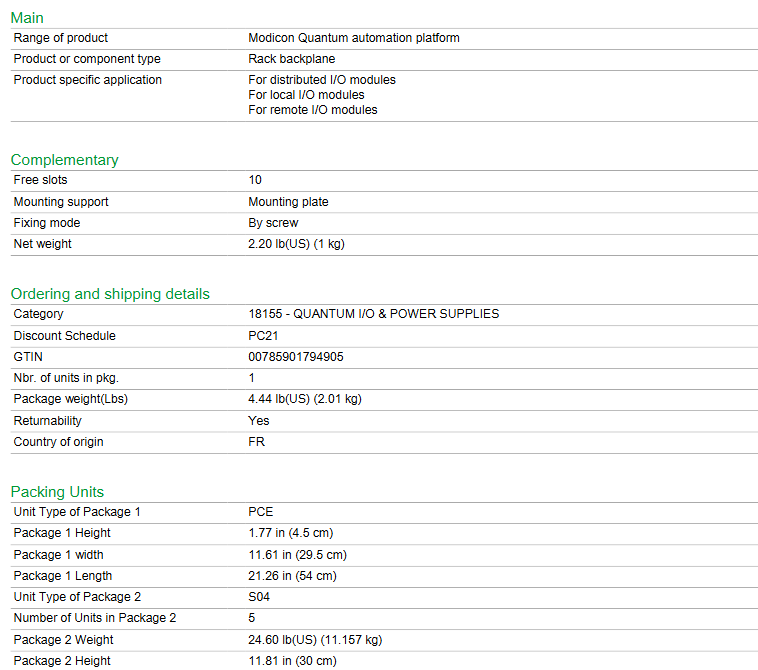

Product positioning: A rack backplane belonging to the Modicon Quantum automation platform, suitable for distributed I/O modules, local I/O modules, and remote I/O modules, with 10 free slots available for module installation.

Inventory and Logistics: Currently in stock, usually stocked in distribution facilities; A single package contains 1 unit of this product, with a packaging weight of 4.44 pounds (2.01 kilograms). There is also S04 type packaging, with 5 units per package, weighing up to 24.60 pounds (11.157 kilograms). The product is originally from France and supports returns.

Order related: The product is classified as 18155- QUANTUM I/O&POWER SUPERIES category, with a discount plan of PC21 and a global trade item code (GTIN) of 00785901794905.

Product Physical and Installation Properties

Weight and size: Net weight of the product is 2.20 pounds (1 kilogram); Package 1 measures 1.77 inches (4.5 centimeters) in height, 11.61 inches (29.5 centimeters) in width, and 21.26 inches (54 centimeters) in length. Package S04 measures 11.81 inches (30 centimeters) in height.

Installation method: It needs to be installed with the help of an installation plate and fixed with screws.

Compliance and environmental requirements

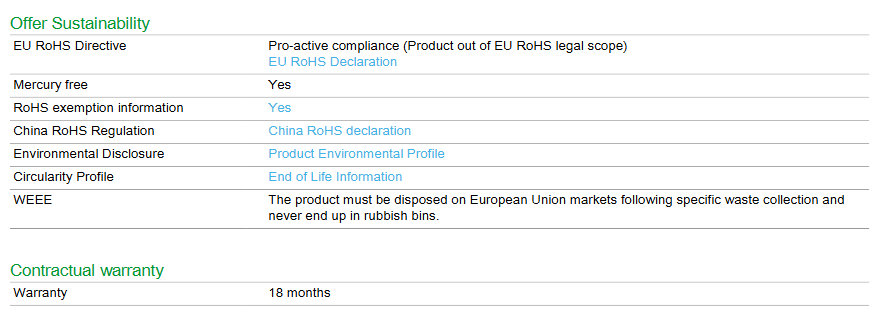

Environmental compliance: Compliant with the EU RoHS directive (proactive compliance, products beyond the scope of EU RoHS laws, providing EU RoHS declaration), free of mercury, and possessing RoHS exemption information; At the same time, it complies with China's RoHS regulations, provides a China RoHS declaration, and also has environmental disclosure documents such as product environmental profile and recycling profile (including scrap information).

Waste disposal: According to WEEE requirements, when this product is discarded in the EU market, it must be disposed of according to specific waste collection methods and is strictly prohibited from being thrown into ordinary garbage bins.

Precautions

Safety specifications are generally applicable to control system handling. Instructions and warnings related to a specific subject or operation of the product.

The following norms must be strictly observed:

  must strictly comply with the technical specifications and typical applications of the product system

  Personnel training: Only trained personnel shall install, operate, maintain or repair the product system. must

Provide guidance and explanation of the situation in danger areas to these personnel.

  Unauthorized changes: Changes or structural changes to the product system may not be made.

  Maintenance responsibility: Must ensure that the product system is used only under appropriate conditions and in full fitness for use.

 Working environment: The user must meet the specified environmental conditions:

Safety regulation

The following safety provisions of EN 50110-1 shall be fully complied with when handling product systems (maintenance) :

1 Disconnect completely.

2 Secure to prevent reconnection.

3 Verify that the installation is complete.

4 Ground and short-circuit the device.

Warning: Only qualified maintenance personnel can remove and insert the module. In order to ensure the personal safety of the operator, before each pulling out or inserting, you must

Disconnect the power supply and ensure that there is no voltage on all terminals at the back, and the product is effectively grounded with the ground screw at the back.
