Product Overview

DANAHER MOTION 15M246U-3/15M246U3 is an important product in the field of Danaher motion control. With Danaher Group's deep accumulation in industrial technology, this product is built with advanced manufacturing processes. Its design aims to meet the needs of multiple scenarios such as industrial automation and precision equipment operation, and can provide stable and reliable support for various types of equipment. It is a key component to ensure efficient and precise operation of equipment.

Key advantages

（1） Reliable quality

Relying on the strict quality control system of Danaher Group, every link from raw material procurement to production and manufacturing is strictly inspected. By adopting advanced production processes and high-quality materials, we ensure that our products have excellent quality from the moment they leave the factory. The brand new product state enables them to achieve optimal performance in the early stages of use, effectively reducing the risk of malfunctions during use and providing reliable user protection.

（2） Leading technology

Thanks to DANAHER MOTION's long-term technological accumulation in the field of motion control, the 15M246U-3/15M246U3 incorporates many cutting-edge technologies and innovative design concepts. Compared with similar products, it has significant advantages in control accuracy, operating efficiency, stability, etc., which can better meet the high requirements of modern industrial automation and intelligent development for equipment performance.

（3） Strong adaptability

With flexible design and rich functional configurations, it can be widely used in various industries and devices. Whether it is different types of industrial production lines, precision scientific instruments, or emerging intelligent manufacturing equipment, they can be perfectly compatible with equipment systems, meet diverse application scenarios, and provide users with convenient selection and user experience.

Precautions

（1） Installation requirements

The installation process must strictly follow the specifications in the product installation manual to ensure a stable installation position and correct wiring. The installation environment should be kept dry and clean to avoid damage to the product caused by environmental factors such as moisture, dust, and corrosive gases. At the same time, it is necessary to stay away from sources of strong magnetic and electric fields to prevent electromagnetic interference from affecting the normal operation and control accuracy of the product.

（2） Usage and maintenance

During the operation of the product, it is strictly prohibited to arbitrarily change the parameter settings of the equipment. If adjustments are needed, they must be carried out by professional technicians in a shutdown state. Regularly clean and inspect the product, promptly remove dust and debris from the surface, and check whether the connection parts are loose and in good contact. According to the requirements of the product maintenance manual, regularly perform performance testing and maintenance on the product to ensure that it always maintains good working condition.

Servo Amplifiers – MMC Smart Drive amplifiers provide 500W to 65kW continuous output power in a compact, easy-to-apply  package.

Available in 230V single phase and  460V three phase versions, the MMC Smart

Drives feature an integral power supply, standard auxiliary feedback, plug and play power and feedback cables to standard Danaher Motion motors.

Servo Motors - MMC Smart Drives connect  with plug-and-play power and feedback cables to

Danaher Motion’s AKM, Goldline DDR and Cartridge DDR motor families. Use Motion Solutions Sizing Software to select a motor and drive combination for your machine’s mechanical configuration.

A complete system solution

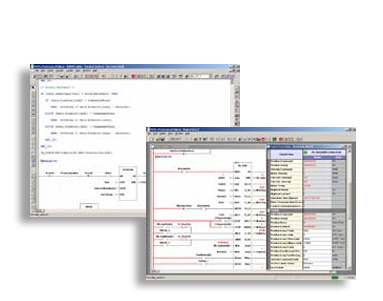

PiCPro Software – PiCPro is used for IEC61131  application program development, and drive setup and  tuning.

Through a single point connection to the Digital  MMC Control, a virtual connection is made to every drive on the Digital network.

Use the PiCPro oscilloscope and drive list to monitor and tune the drives on the network. Download  parameters and firmware to all drives at once with a single click of the mouse.

At the same time, use PiCPro for  application program development with IEC61131 ladder  logic, function block and structured text languages.

PiCPro provides all of the tools you need for high-performance integrated machine and motion control applications.

Digital MMC Controls

The Digital MMC family of controls includes a drive-resident control card for applications up to 16 axes and a stand-alone control for applications up to 64 axes.

The drives are daisy-chained to  the control card using shielded CAT5 Ethernet cable. Up to 16 drives can be daisy-chained on one network branch.

Cimrex and Exter HMI – Use  the  Cimrex and Exter family of HMI terminals to provide machine status and feedback to the operator.

With a complete family of Terminals including compact 2-line displays up to 15” color touch screens, and a tag-name database scheme to communicate to the Digital MMC Controls, these HMI terminals are the final piece to form a complete Digital MMC System.

Expansion Capability

The D32 and D64 controls are expandable. Up to four field-installable  option modules can be used in a system.

Use the 32 Input / 32 Output  module to expand the I/O capability beyond what is available on the  drives alone.

Use the optional DeviceNet or Profibus module to control intelligent  I/O devices.

Digital Motion Control Network

10/100 Ethernet for Device Connectivity

The built-in 10/100 Ethernet port provides a wide variety of connectivity options.

Connect to third-party devices using our OPC Server, Modbus TCP or other control protocols, transfer recipe or data files to and from the RAMDISK using TFTP file transfer, share data between controls using UDP packets, and access your plant network.

You can also simultaneously run PiCPro over Ethernet either directly or remotely.

Daisy-chain up to 16 Digital MMC Smart Drives off each branch with a simple RJ45 connection and readily available CAT5 cable. 230V and 460V versions of the drives are available in power ranges from 500W to 65kW.

Real-time data from the drives such as torque, current and fault history is available to the application program over the Digital Link. Download firmware or parameters to all of the drives on the network at once with a single click of the mouse using PiCPro.
