ABB AP100 pH/Redox (ORP) cartridge sensors with water-wash option

From:ABB | Author:Wang | Time :2025-01-06 | 455 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

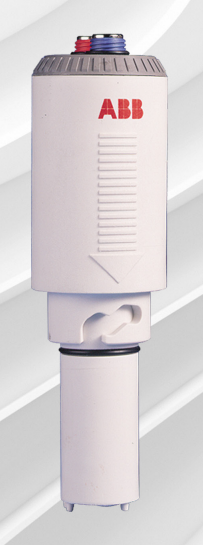

ABB AP100 pH/Redox (ORP) cartridge sensors  with water-wash option

Measurement made easy
Tough and durable sensors for
on-line pH measurement
Compact 'all-in-one' cartridge design
• simplifies sensor replacement, minimizing downtime
Detachable cable option
• ensures rapid and easy installation and commissioning
'Wetted' sensor
• ready-to-go straight from the box
Low resistance 'blue-glass' version
• unique solution for cold water applications
Flow, dip, insertion and submersible systems
• satisfies a wide range of applications
Small-bore flow system
• for use on applications where only small volumes
of sample are available
Stainless steel flow system option
• for use on low conductivity samples
Water-wash option
• minimizes maintenance where coating of the
glass electrode is a problem
Replaceable liquid junction
• maximizes sensor life and enables replacement of the electrolyte
The cartridge
The cartridge sensing system has a proven track record in a
wide range of applications. New features such as the low
resistance ‘blue-glass’ and the small-bore flow version for low
volume samples reinforces the performance and extends the
applications that can be fulfilled using this versatile and welltested system.
Manufactured in glass-coupled polypropylene, the all-in-one
sensor can be supplied for flow-through, dip and submersible
applications.
Flow systems – can be supplied with a choice of process
connections and materials to meet the demands of the
sample to be measured. The bayonet snap-fit enables rapid
and convenient access for calibration – just twist and turn and
the sensor is released for easy and quick calibration.
Pipeline adaptor (7670/063) – is available to enable the
sensor to be inserted directly into a pipe.
Dip systems – available in 1, 2 and 3 m (39, 78 and 117 in)
lengths for use in open channels and tanks.
Submersible systems – available with an integral sealed
connection cable enabling the sensor to be completely
submerged – ideal for boreholes or where there is a large rise
and fall in the sample to be measured. Provision is made for a
support chain to be attached to the system. A wide range of
standard cable lengths is available.
Water-wash options – available for flow and dip systems
where coating of the pH glass causes maintenance issues.
Water-wash has proven very successful in many applications.

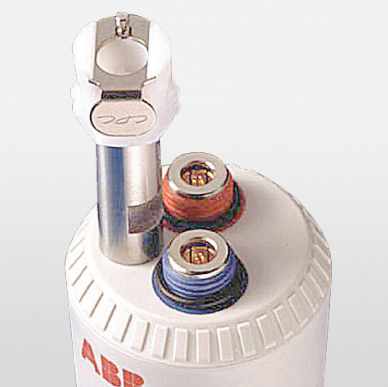

Detachable cables – an option that makes replacing the
sensor a simple, easy-to-do operation. The use of IP67 plug
and socket connectors ensures that problems caused by
moisture ingress do not occur and enables reliable operation
in the most demanding applications.


The cartridge
Double-junction PTFE reference – a key feature to minimize
the risk of blocking of the junction and protect against
poisoning of the electrolyte.
Supplied ready-to-go – fitted with a wetted teat to ensure
the sensor is in optimum condition and requires no
preconditioning prior to installing and commissioning.
Small-bore flow systems – ideal for applications where only
small sample volumes are available (between 100 and 500 ml/
minute [0.176 and 0.88 pints/minute]) for continuous analysis.
These flow systems are offered in a choice of two materials,
stainless steel and Delrin, both widely used on low
conductivity water. Being small and compact they help to
keep the panel size to a minimum when used on multi parameter packages and are a very cost effective solution.
Low resistance glass – a unique glass designed particularly
for cold water samples where conventional sensors perform
sluggishly due to low sample temperatures (below 10 °C down
to 0 °C [below 50 °F down to 32 °F]). This sensor is used
extensively on potable water treatment works where the
sample temperature is commonly below 10 °C (50 °F). A
further benefit of the low resistance glass is improved speed
of response where the sample has a low conductivity (less
than 100 µS/cm and down to 20 µS/cm).
Water-wash systems – have proven extremely successful on
potable water treatment plants where iron or manganese
coat the glass electrode, increasing maintenance levels. The
frequency and duration of the clean is controlled via the
AX400 Analyzer and during the clean cycle the current output
and alarms are frozen to prevent spurious alarms.
Redox (ORP) sensors – supplied in flow, dip and submersible
systems, with water-wash options available for flow and dip
systems. They are used widely in the treatment of waste
water and, in particular, for electro-plating for the treatment
of cyanide and chromate waste liquor.


Reference electrode refurbishment kit
To allow the maximum working life of the sensor to be
achieved, a refurbishment kit is available (Part No. 7670/088).
The kit contains a replacement PTFE liquid junction, a bottle
of 3.5M KCl reference electrolyte solution and pipette, a liquid
junction removal/refitting tool and all necessary O-rings.
Many sensors are replaced because the liquid junction
becomes blocked due to the nature of the sample or because
the electrolyte solution is exhausted. Replacing the junction
and electrolyte extends sensor life and reduces the cost of
ownership.
Flow systems
pH range
• 0 to 14 pH – standard glass
• 0 to 10 pH – low resistance glass
Temperature range
• 0 to 100 °C (32 to 212 °F) – standard glass
• 0 to 70 °C (32 to 158 °F) – low resistance glass
Pressure
0 to 100 psi at 25 °C (77 °F)
Process connections
• 1/2 in or 1 in BSP
• 1/2 in or 1 in NPT
• 3
/8 in NPT (low volume version)
O-ring material
Viton
Temperature compensation
3-wire Pt100
Material of construction
• Glass-coupled polypropylene
• Stainless steel or Delrin (low volume version)
7670-063 pipeline adaptor
Material of construction
Glass-coupled polypropylene
Temperature range
0 to 100 °C (32 to 212 °F)
Pressure
0 to 80 psi at 25 °C (77 °F)
Process connection
11/2 in BSP
Dip systems
pH range
• 0 to 14 pH – standard glass
• 0 to 10 pH – low resistance glass
Temperature range
• 0 to 100 °C (32 to 212 °F) – standard glass
• 0 to 70 °C (32 to 158 °F) – low resistance glass
Fixing bracket
Not supplied
Immersion length
1 m (39 in), 2 m (78 in) or 3 m (118 in)
O-ring material
Viton
Material of construction
Glass-coupled polypropylene and polypropylene (dip tube)
Temperature compensation
3-wire Pt100
Submersible systems
pH range
2 to 12 pH
Temperature range
0 to 50 °C (32 to 122 °F)
Immersion length
Dependent on cable length:
• Minimum cable length supplied 10 m (32.5 ft)
• Maximum cable length supplied 30 m (98 ft)
Temperature compensation
3-wire Pt100
Material of construction
Glass-coupled polypropylene
Support chain
Not supplied
