ABB CONTROL UNIT SYN 5201A-Z,V277 3BHB006714R0277

From: | Author:Wang | Time :2025-07-14 | 130 visit: | Share:

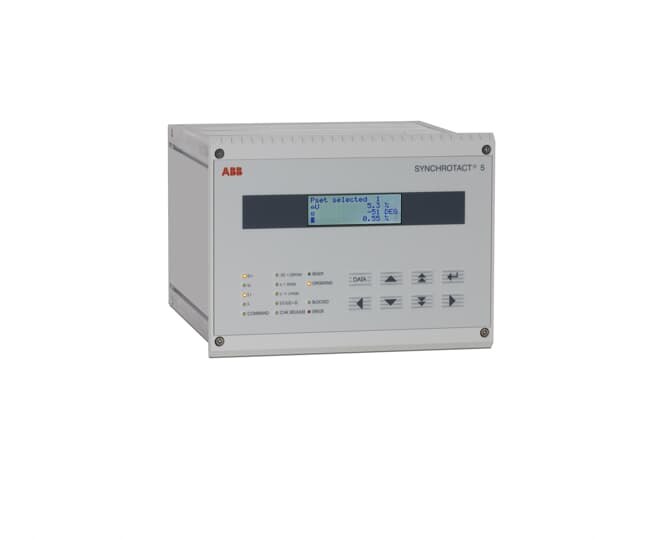

ABB CONTROL UNIT SYN 5201A-Z,V277 3BHB006714R0277

Product Overview

ABB Control UNIT SYN 5201A-Z, V277 3BHB006714R0277 is a control unit launched by ABB for synchronous and parallel operations, belonging to the ABB SYNC HROTACT series products. This product features a dual channel configuration, with one channel monitoring the operation of the other, greatly improving operational safety. It can be used to ensure precise timing and control in complex industrial systems and plays an important role in the field of industrial automation.


Product Usage

Mainly used to ensure precise timing and control in complex industrial systems, it is a key component in industries such as power generation, telecommunications, and industrial automation, where precise synchronization is crucial.

Performance characteristics

Rich communication interfaces: Supports logically independent dual Profibus DP buses, can set dip switches to specific communication rates or adaptively, can flexibly choose 1-2 Profibus DP electrical interfaces and 1-2 155 Mbps fiber optic interfaces, supports redundant dual network and fiber ring network topologies.

Long communication distance: Fiber optic communication distance exceeds 20 kilometers, with a 155 Mbps high-speed optical interface, which can better support long-distance reliable transmission of burst data.

Clear status indication: equipped with 5 dual color LED status indicator lights, with fiber optic link and power failure relay output alarm function.

Good protection performance: The electrical interface has 4000V lightning protection, 1.5A overcurrent, and 600W surge protection, meeting industrial design standards and passing EMC testing certification. Adopting DC (12-36V) wide redundant dual power supply, with reverse protection function, protection level of IP30, and shell reinforced with corrugated aluminum material.

Easy installation: Using standard industrial 35mm guide rail installation method, it is convenient to install in the control cabinet.

Technical parameters:

Safety level: PL e, SIL 3- SIL CL 3- PL e - Cat. 4.

Input/output: There are 8 digital inputs, 2 OSSD PNP outputs (400 mA at 24 VDC) with short circuit, overload, and reverse polarity protection, 2 PNP status outputs (100 mA), and 4 test outputs.

Working temperature: -10 ℃ to 55 ℃, storage temperature: -20 ℃ to 85 ℃.

Power supply: 24V DC ± 20%.

Dimensions: Approximately 108mm × 22.5mm × 114.5mm, gross weight of approximately 206.8g.


Key advantages

High security: With a dual channel design, one channel monitors the operation of the other channel, greatly improving the safety during the operation process and reducing the risk of system abnormalities caused by equipment failures.

Wide applicability: It not only supports 50/60Hz standard power grid, but also supports 16 2/3Hz frequency, suitable for various types of power generation equipment and complex power grid environments, whether it is conventional power plants or some special industrial self owned power plants.

Accurate synchronization performance: With advanced digital technology and precise algorithms, high-precision frequency and voltage matching and synchronization operations can be achieved, effectively improving the stability and reliability of power grid operation, reducing power fluctuations and equipment losses caused by poor synchronization.

Powerful communication capability: supports multiple communication protocols, facilitates integration with various devices, achieves intelligent management and remote control of the system, and can meet the needs of different users for centralized monitoring and management of the system.

High reliability: Complies with industrial design standards and has passed EMC testing certification. The electrical interface has 4000V lightning protection, 1.5A overcurrent, 600W surge protection, and adopts DC (12-36V) wide redundant dual power supply with reverse protection function. The protection level is IP30, and the shell is reinforced with corrugated aluminum material, which can operate stably in harsh industrial environments.


Precautions

During the installation process, it is necessary to strictly follow the instructions in the product manual to ensure the correct installation position and avoid equipment damage or performance degradation caused by improper installation. Special attention should be paid to the firmness and correctness of electrical connections to prevent problems such as short circuits or open circuits.

Before use, carefully inspect the appearance of the equipment for any damage and ensure that all components are complete. At the same time, it is necessary to confirm whether the parameters of the input power supply are consistent with the equipment requirements, in order to avoid irreversible damage to the equipment caused by power problems.

During operation, regular inspections of the equipment should be carried out to observe whether the operating status indicator lights are normal and whether there are any abnormal noises or heating phenomena. If any abnormalities are found, the machine should be stopped immediately for troubleshooting. Do not forcefully restart the equipment until the fault is resolved.

When setting and maintaining equipment parameters, it must be operated by professional personnel and carried out in the event of a power outage to prevent safety accidents or equipment failures caused by misoperation. At the same time, after the operation is completed, carefully check the parameter settings to ensure that they are correct and error free.

The device should be stored in a dry, ventilated, and non corrosive gas environment, avoiding direct sunlight and strong electromagnetic interference. If the device is not used for a long time, it is recommended to conduct regular power on checks to ensure that the device is functioning properly.


Similar model supplement

SYN5200A-Z: also belongs to the ABB SYNC HROTACT series products, similar to SYN 5201A-Z, designed for industrial automation synchronous control. The working voltage is 24V DC, and the communication protocol supports Ethernet/IP, Profibus, and Modbus. The difference lies in that its performance parameters such as processor speed may differ from SYN 5201A-Z, and there may also be differences in input and output capacity. For example, SYN5200A-Z may support a different number of I/O points in certain application scenarios, and users can choose according to their specific system requirements and budget.

ABB SYN5201a-Z, V217: This is also an automatic synchronization device, belonging to the SyncHROTACT 5 series product line. Compared with SYN 5201A-Z, V277, the input voltage range (measured input U1, U2) is 50 to 130 VAC (rated), and the auxiliary power supply (AC/DC) is 24-250 V DC, 100-230 V AC. There are differences in some detailed parameters, and there may also be differences in applicable conditions such as working environment temperature. For example, its working environment temperature is+5 to+70 ° C, and users need to choose it reasonably according to their actual usage environment and working conditions.
