Product Overview

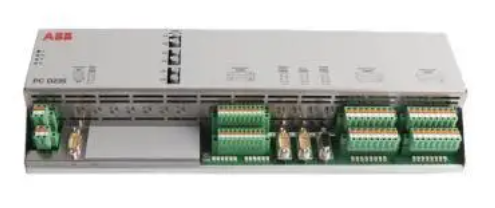

The ABB 3BHE027632R0101 excitation control controller module is a core component used for precise control of excitation systems in power systems and various industrial drive equipment. It is mainly responsible for precise regulation of the excitation current of generators and other equipment. By monitoring the operating parameters of the generator, such as voltage, frequency, load, etc., it adjusts the excitation output in real time according to established control strategies to ensure that the generator maintains stable output voltage and frequency, and guarantees the reliability and stability of the power system. This module, with advanced design concepts, high reliability hardware architecture, and efficient control algorithms, is widely applicable to various power generation scenarios, from traditional thermal power generation and hydropower generation to emerging wind power generation, photovoltaic power generation, etc., playing a key role in the entire energy field.

Specification parameters

Input voltage range: 180-264V AC (wide voltage input, suitable for different power grid environments)

Control accuracy: Voltage control accuracy: ± 0.5%; Frequency control accuracy: ± 0.1Hz (ensuring stability and high quality of generator output)

Communication interface: Supports multiple industrial standard communication protocols such as Modbus RTU and Ethernet/IP, making it easy to integrate with the upper control system

Working temperature range: -20 ℃ to+60 ℃ (suitable for a wide range of environmental temperatures and can operate stably under different climatic conditions)

Storage temperature range: -40 ℃ to+85 ℃ (to ensure that the performance of the module is not affected during long-term storage or transportation)

Protection level: IP20 (suitable for indoor control cabinet installation environment, effectively dustproof)

Working principle

During the operation of the generator, the 3BHE027632R0101 module first obtains real-time operating parameters such as output voltage, current, and frequency of the generator through its signal acquisition circuit. After pre-processing such as filtering and amplification, these analog signals are transmitted to the core microprocessor inside the module. The microprocessor analyzes and calculates the excitation current required by the generator under current operating conditions based on preset control algorithms, such as PID control algorithm (proportional integral derivative control algorithm), by analyzing and calculating the collected parameters. Subsequently, the microprocessor outputs corresponding control signals, which pass through the power amplification circuit to drive the excitation power unit to adjust the excitation current output to the generator rotor. By continuously monitoring and feedback adjusting in real-time, the generator is ensured to be in a stable operating state and output high-quality electricity. At the same time, the fault diagnosis circuit inside the module monitors the current, voltage, temperature and other parameters of each part of the circuit in real time. Once an abnormality is detected, the protection action is immediately triggered, the excitation output is stopped, and the fault information is fed back to the upper control system through the communication interface.

Key advantages

High reliability: By using high-quality electronic components and advanced manufacturing processes, and undergoing rigorous quality inspection and reliability testing, it can operate stably in complex industrial environments for a long time, effectively reducing equipment failure rates and maintenance costs.

Precise control performance: With extremely high control accuracy, it can accurately regulate the excitation current, ensure the stability of the generator output voltage and frequency, and meet various application scenarios with strict requirements for power quality, such as precision manufacturing, medical equipment power supply, etc.

Powerful compatibility: Supports multiple industrial standard communication protocols, seamlessly integrates with different brands, types of upper control systems, and other power equipment, facilitates the construction of complex power automation systems, and improves the system's versatility and scalability.

Comprehensive fault diagnosis and protection functions: With a comprehensive fault diagnosis mechanism and fast response protection measures, various potential faults can be detected and dealt with in a timely manner, effectively protecting generators and other power equipment, and improving the overall safety and reliability of the system.
