ABB 3BSE013064R1 PU516 Engineering Board -PCI

From: | Author:Wang | Time :2025-07-14 | 224 visit: | Share:

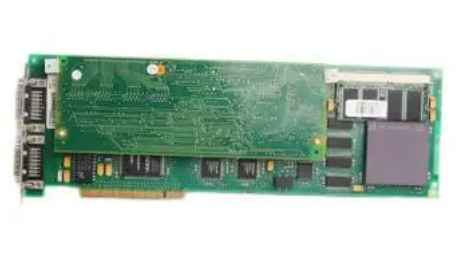

ABB 3BSE013064R1 PU516 Engineering Board -PCI

Product overview

ABB PU516 Engineering Board PCI (Product ID: 3BSE013064R1) is a communication module designed specifically for the industrial control field, belonging to the ABB Advant series hardware products. It is equipped with one MB300 interface and one RS-232 port, suitable for 5V 32-bit 33MHz PCI bus, built-in 16MB memory, mainly used for data transmission and communication connection in industrial control systems, and is a key component of Advant OCS and other system engineering configurations. This product is exempt from the restrictions of the 2011/65/EU (RoHS) directive and meets compliance requirements in specific industrial scenarios.


Basic information

Product identification: Product ID is 3BSE013064R1, ABB model name is PU516, catalog description is PU516 Engineering Board PCI, replacement part number is EXC3BSE013064R1.

Product Description: This product is a PU516 engineering board with one MB300 and one RS-232 port, suitable for 5V 32-bit 33MHz PCI bus, equipped with 16MB memory. In addition, this component is exempt from the 2011/65/EU (RoHS) scope, as per Article 2 (4) (c), (e), (f), and (j), with reference to document 3 BSE088609 – EU DECLARATION OF CONFORMITY - ABB Advant Master Process Control System。


Technical and physical parameters

Dimensions: The net depth/length of the product is 126mm, the net height is 18mm, and the net width is 324mm.

Weight: The net weight of the product is 0.38kg.

HS code: 853890, belongs to parts that are only or mainly applicable to devices listed in heading 85.35, 85.36, or 85.37, other categories.

Customs tariff number: 85389091.


Classification information

Belonging to Control System Products - Control&Communication - Advance Common Hardware - Advance Common - Communication Modules - PU516 MasterBus 300 Interfaces - PU516 MasterBus 300 Interface.

It also belongs to Control Systems Advant OCS with Master SW Engineering Advant Station 100 Engineering Board - PCI Communication Modules.

The product type is Communication-Module.


Core functions

Communication interface expansion: Connect to the MasterBus 300 network through the MB300 interface, supporting high-speed data exchange between industrial control devices; The RS-232 port can be used to connect debugging devices or external terminals for local configuration and data transmission.

Data caching and processing: 16MB of memory can temporarily store and transmit data, reducing communication latency and ensuring continuous transmission of real-time data in industrial control systems.

PCI bus adaptation: Compatible with 5V 32-bit 33MHz PCI standard, it can be directly inserted into the PCI slot of industrial computers or control hosts to achieve hardware integration with the system.


Precautions

Installation environment: It should be installed in a dry and ventilated control cabinet to avoid dust, corrosive gases, and severe vibrations. The working environment temperature should comply with the general standards for industrial grade equipment (usually recommended -10 ℃ to 60 ℃).

Bus adaptation: Ensure that the host PCI bus is 5V 32-bit specification to avoid hardware damage caused by voltage or bit mismatch.

Interface protection: The RS-232 interface is designed for non isolation, and it is recommended to install lightning protection or surge protection devices when connecting external devices, especially in outdoor or strong electromagnetic interference environments.

Compliant use: Although exempt from RoHS restrictions, it is necessary to confirm whether the usage scenario complies with relevant environmental regulations in the region to avoid illegal applications.

Maintenance: Regularly check whether the connection between the board and the PCI slot is loose, clean the interface dust, and ensure good communication contact.


Similar model supplement

ABB PU515: Belonging to the Advant series communication board, the difference lies in the interface configuration. PU515 may only support MB300 interface, without RS-232 port, suitable for scenarios that do not require serial communication, and the price is relatively low.

ABB CI854: Modern industrial Ethernet communication module, supporting protocols such as PROFINET, with higher speeds, suitable for new systems that require high-speed network communication. Compared with PU516, the interface and protocol are more advanced, but the compatibility with the old Advant system is weaker.
