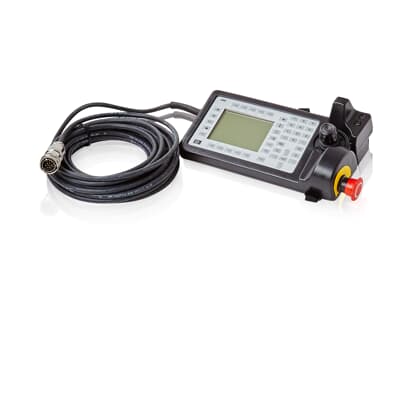

ABB 3HNE00313-1 (with 10 m cable and plug)

ABB 3HNE00313-1 (with 10 m cable and plug)

Historical background of the brand

ABB (ASEA Brown Boveri) as the world's leading power and automation technology group,

its industrial automation business can be traced back to the world's first industrial robot launched in 1974.

After decades of development, ABB in the field of industrial robots, automation control systems have accumulated a deep technical heritage,

especially in high-precision control, complex systems integration at the forefront of the industry.

Its products are widely used in automotive manufacturing, electronics, new energy and other fields,

with a global installed capacity of more than 160,000 units.

Second, the basic information of the product

Model name: ABB 3HNE00313-1 TILLV.0317 Machine No. 64-25653 (including 10 m cable and plug)

Product type: Industrial robot teach pendant (programming unit)

Core function: for offline programming, real-time debugging and operation monitoring of industrial robots,

supporting multi-language operation interface and graphical programming tools.

Physical Characteristics:

Size: 140mm x 90mm x 65mm (module body)

Weight: 0.5kg (module) + 0.8kg (10m cable and plug)

Shell material: high strength ABS engineering plastic, excellent impact resistance.

Cable & Plug:

Length: 10 metres flexible drag chain cable, suitable for frequent movement scenarios.

Interface type: M12 circular connector (8-pole), supports high-speed data transmission (such as EtherCAT protocol).

Protection level: IP20 (module body), cable part IP65 (need to cooperate with waterproof connector).

Core technical parameters

Electrical parameters

Power supply voltage: DC 24V ±10%

Power consumption: ≤15W

Communication protocol: PROFINET, EtherCAT, Modbus TCP

Performance Parameters

Screen resolution: 1024 × 768 (TFT LCD touch screen)

Response time: ≤ 50ms

Storage capacity: 8GB (built-in)

Environmental parameters

Operating Temperature: -25℃~+60

Humidity: 5%~95% (non-condensing)

Anti-vibration: IEC 60068-2-6 (10~55Hz)

Cable Characteristics

Conductor: Multi-stranded tinned copper wire (AWG 24)

Shield: Aluminium foil Mylar + tinned copper braid (shielding efficiency ≥ 90%)

Sheath: polyurethane (PUR), oil-resistant, abrasion-resistant, bend-resistant

Technical Advantages

High precision control capability

Supports sub-millimetre level programming of the robot's motion trajectory, with positioning accuracy up to ±0.1mm,

suitable for precision assembly, welding and other processes.

Built-in adaptive PID algorithm can automatically optimise the control parameters according to the load changes to ensure the stability of dynamic response.

Communication and Integration Advantages

The 10-metre cable is twisted and shielded, supporting high-speed data transmission (up to 100Mbps) and strong anti-interference capability.

Compatible with a wide range of industrial protocols, it can be seamlessly interfaced with ABB robotics controllers (e.g. IRC5) and third-party devices.

Reliable design

The main body of the module is IP20 certified, and the cable portion supports IP65 protection (external waterproof connector is required)

to adapt to harsh industrial environments.

Mean Time Between Failure (MTBF) ≥ 50,000 hours, reducing maintenance costs.

Optimised human-computer interaction

The 10-inch touch screen supports glove operation, and the brightness of the backlight is automatically adjusted to adapt to different lighting conditions.

Physical emergency stop buttons and enabling devices comply with ISO 10218-1 safety standards to ensure operator safety.

Application Areas

Industrial robot programming

Automotive manufacturing: used for welding robot trajectory teaching, support spot welding, arc welding and other process parameters real-time adjustment.

Electronic manufacturing: for high-precision motion control of semiconductor chip packaging equipment, such as mounter, AOI inspection equipment.

Automated production line debugging

Food packaging: in filling machines, palletising machines and other equipment,

through the oscillator to achieve rapid programming and verification of the action sequence.

Metal processing: tool path editing and machining parameter optimisation for CNC machines.

Research and Education

Colleges and research institutions for the development and verification of robot control algorithms,

support for secondary development interfaces (such as Python API).

Notes

Installation and Wiring

Cables should be avoided to be laid in parallel with power cables, the recommended spacing is ≥30cm,

and metal pipes need to be worn to isolate the crossover.

Plugs should be firmly connected, and the sealing of interfaces should be checked regularly to prevent loose signals from being interrupted.

Environmental Adaptability

IP20 module body should be installed in the control cabinet to avoid direct exposure to dust and liquid environment.

Long-term high-temperature environment (>50℃) is recommended to configure a cooling fan to prevent overheating of the device.

Maintenance and Upgrade

Clean the surface of the touch panel regularly with a non-corrosive cleaning agent.

Software version upgrade should be through the official ABB tool, to avoid the use of non-authorised firmware resulting in compatibility problems.

Other Models

3HNE00314-1 Alternative model, support higher resolution screen (1280×1024), add USB 3.0 interface.

3HNE00131-1 Basic version, no backlight screen, only supports RS485 communication.

3HNE00313-2 Version with 20 m cable, with fibre optic interface, suitable for long distance transmission (e.g. large production lines).

3HNE00313-3 Explosion-proof version (ATEX certified) for hazardous environments such as chemical, oil and gas.
