ABB 57160001-GF DSDP 150 Pulse Encoder Input Unit

From: | Author:Wang | Time :2025-07-17 | 143 visit: | Share:

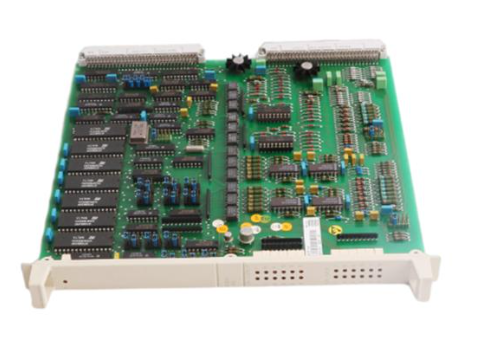

ABB 57160001-GF DSDP 150 Pulse Encoder Input Unit

Product Overview

ABB 57160001 - GF DSDP 150 Pulse Encoder Input Unit( Pulse encoder input unit is a key equipment used for precise position and velocity monitoring in the field of industrial automation. It focuses on efficiently processing and converting the pulse signals transmitted by the encoder, providing precise information such as position, velocity, and direction for the control system. In scenarios where high precision and stability are required for equipment operation, such as industrial automation production lines, machine tool processing, elevator operation, and material handling, this unit plays an indispensable role in ensuring that equipment operates accurately according to predetermined procedures, effectively improving production efficiency and product quality.


Brand background

ABB, as a globally renowned leader in power and automation technology, has a long history of over 130 years. Headquartered in Zurich, Switzerland, our business covers over 100 countries and regions worldwide, with a total of more than 100000 employees. ABB, with its profound technological foundation and continuous innovation spirit, is at the forefront of the industry in multiple fields such as energy management, industrial automation, robotics, and motion control. Its products and solutions are widely used in key industries such as power, industry, transportation, and infrastructure, contributing significantly to global sustainable development and earning high trust from customers worldwide.


Basic Product Information

Identification information: Product ID is 57160001-GF, ABB model name is DSDP 150, belonging to I/O module.

Function description: This is a pulse encoder input unit suitable for 12V DC, which can be used for pulse counting and frequency measurement. Its input can be connected to a pulse generator with a frequency of up to 10kHz.

Special note: This component is not subject to the 2011/65/EU (RoHS) directive, in accordance with Article 2 (4) (c), (e), (f), and (j) of the directive (reference: 3BSE088609- EU Declaration of Conformity - ABB Advant Master Process Control System).

Order information: Order number is 57160001-GF, exchange number is EXC5716001-GF, HS code is 853890, customs tariff number is 85389091.


Product specifications

Size and weight: The net depth/length of the product is 360mm, the net height is 15mm, the net width is 250mm, and the net weight is 0.425kg.

Environment related: The WEEE category is 5 (small equipment with no external dimensions exceeding 50cm), and the number of batteries is 0.


Applicable kits

When used as part of the kit, the identifiers, corresponding descriptions, and types involved are as follows:

3BSE019923R1: DSDP 150K05 pulse encoder input, 12 channels, belonging to the kit.

3BSE019924R1: DSDP 150K06 pulse encoder input, 12 channels, belonging to the kit.

3BSE019950R1: DSDP 150K07 pulse encoder input group 10kH, belonging to the kit.

3BSE019951R1: DSDP 150K08 pulse encoder input group, belonging to the kit.

3BUR002100R1: DSDP 150K10 pulse encoder input group, belonging to the kit.

5730030-UU: Pulse encoder group, belonging to the kit.


CLASSIFICATION

This product has clear attribution under multiple classification systems, mainly including:

Control System Products - I/O Products - S100 I/O - S100 I/O - Modules - DSDP 150 Pulse Input - DSDP 150 Pulse Input.

Control system -800xA - I/Os - S100 I/O - I/O modules.

Control system - Advant OCS with Master software - Controller - MasterPiece 200 and 200/1 I/O modules.

Control system - Advant OCS with Master software - I/Os - S100 I/O - I/O modules.

Control system - Advant OCS - I/Os - S100 I/O - I/O module with MOD 300 software.

Control System - Compact Product Kit - I/Os - S100 I/O - I/O Modules.


Precautions

Installation environment selection: Try to choose a location that is dry, well ventilated, has stable temperature, and is far away from strong electromagnetic interference sources. Avoid installation in environments with direct sunlight, humidity, high dust, or severe vibrations to avoid affecting the performance and service life of the equipment.

Encoder connection: When connecting the encoder to the input unit, it is necessary to strictly follow the requirements of the equipment manual to ensure correct and secure wiring. Use cables of appropriate specifications and pay attention to the shielding and grounding of the cables to reduce signal interference. At the same time, it is necessary to avoid excessive external force on the encoder shaft to prevent damage to the encoder.

Power stability: To ensure the normal operation of the equipment, a stable 24VDC power supply must be provided. It is recommended to install a suitable voltage regulator and filtering device at the power input end to prevent damage to the equipment caused by power fluctuations and electromagnetic interference. Regularly check if the power connection is loose to ensure the reliability of the power supply.

Software version and compatibility: During use, it is important to promptly follow the software update information released by ABB to ensure that the software version used by the equipment is the latest and compatible with other system components. When performing software upgrades or system integration, it is essential to conduct thorough testing to avoid equipment failures or abnormal system operation caused by software incompatibility.

Daily maintenance and inspection: Regularly clean the equipment, remove dust and debris from the surface. Check the operating status of the equipment, observe whether the indicator lights are displaying normally, and whether there are any abnormal alarm messages. Regularly test the performance of the equipment, such as pulse counting accuracy, communication stability, etc., to ensure that the equipment is always in good operating condition.
