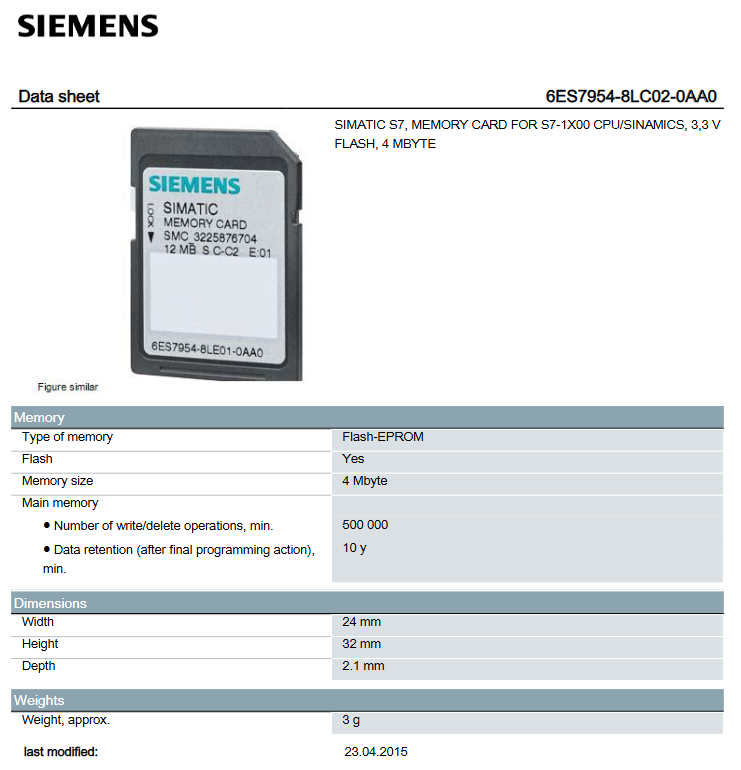

Siemens 6ES7954-8LC02-0AA0 SIMATIC Memory Card

Siemens 6ES7954-8LC02-0AA0 SIMATIC Memory Card

Product positioning and core identification

6ES7954-8LC02-0AA0 is an industrial grade memory card designed by Siemens specifically for SIMATIC S7-1X00 series CPUs and SINAMICS series driver devices. Its core function is to provide program storage, data log storage, and firmware upgrade carriers, adapting to the stable and high durability storage medium requirements of small and medium-sized industrial automation systems, ensuring program and data security of equipment in harsh industrial environments.

Core hardware and storage specifications

1. Storage performance and durability

Category specific parameters

Storage type Flash EPROM, powered by 3.3 V (industrial standard voltage, compatible with S7-1X00 CPU and SINAMICS devices)

Storage capacity of 4 MB, meeting the storage needs of small and medium-sized user programs, system configuration files, and a small amount of process data logs

Read and write lifespan of at least 500000 erase and write operations, far exceeding consumer grade storage media, suitable for frequent program updates in industrial scenarios

Data retention period: At least 10 years after the final programming operation (without power supply), no battery backup is required, reducing maintenance costs

2. Physical dimensions and weight

Dimensions: Width 24 mm x Height 32 mm x Thickness 2.1 mm (Compact design, compatible with standard memory card slots for S7-1X00 CPU and SINAMICS devices);

Weight: about 3 grams, lightweight design, does not increase the overall load-bearing burden of the equipment, easy to install and replace.

Adapt devices and application scenarios

1. Compatible devices

Core adaptation: SIMATIC S7-1X00 series programmable controllers (such as S7-1200, S7-1500 series CPUs), used as program loading and data storage carriers;

Extended adaptation: SINAMICS series industrial drive equipment (such as frequency converters, servo drives), used to store drive parameter configurations, firmware files, and operation logs.

2. Typical applications

Program storage: Store user programs (such as ladder diagrams and structured text programs) and system configuration files for S7-1X00 CPU, ensuring that the CPU can load programs normally after power on;

Data log: Save industrial site process data (such as production counting, equipment operation status) without relying on external storage devices, making it easy to trace and analyze data in the later stage;

Firmware upgrade: As a firmware upgrade medium for S7-1X00 CPU or SINAMICS driver, after storing the upgrade file in the memory card, the device can automatically read and complete the firmware update.

Installation precautions

First, the importance of industrial equipment installation

In modern industrial production, various equipment and machines are widely used in various fields, such as manufacturing, energy industry, chemical industry and so on. The installation of industrial equipment is directly related to production efficiency and product quality. Proper installation and commissioning of good equipment can ensure the stable operation of the production line, improve production efficiency and product quality, reduce maintenance costs, and ensure the safety of employees.

Second, the steps of industrial equipment installation

1. Preparation: Before the installation of industrial equipment, it is necessary to carry out adequate preparation work. This includes the tools and equipment required for installation, cleaning and preparation of the installation site, and making installation plans and schedules.

2. Determine the installation position: Determine the installation position of the equipment according to the requirements of the equipment and the layout of the production line. When determining the location, the weight and size of the equipment need to be considered, as well as the coordination of the equipment with the surrounding environment.

3. Install the device: Assemble and install the device according to the installation instructions. Ensure that the device is securely and accurately connected, while protecting the appearance and internal components of the device.

4. Connect power supplies and pipelines: For devices that require power supplies and power supplies, properly connect power supplies and pipelines. The connection of power supply and pipeline should comply with safety standards to avoid hazards such as electric shock and leakage.

5. Commissioning the device: After the installation is complete, you need to commission the device to ensure that the device can run properly. It includes checking the functions and performance of the equipment, adjusting the parameters and Settings of the equipment, and carrying out the necessary tests and inspections.

6. Training operators: After the installation of the equipment, it is necessary to train the operators to understand the operation methods and precautions of the equipment, and improve the operation skills and safety awareness of the employees.

Third, industrial equipment installation precautions

1. Safety first: When installing industrial equipment, safety is the most important consideration. You must operate in strict accordance with safety regulations and wear necessary protective equipment to ensure the safety of the workplace.

2. Strictly follow the equipment instructions: Industrial equipment usually comes with detailed installation instructions, you must carefully read and understand the contents of the instructions, and install the operation in accordance with the requirements of the instructions.

3. Pay attention to the assembly sequence: When installing the device, follow the correct assembly sequence to ensure that all components of the device are assembled correctly to avoid equipment failures or safety accidents caused by incorrect assembly sequence.
