Xycom 95212B-001 Module Circuit Board Card 95213-007 8503 PCB PWA Programmable Logic Controller

From: | Author:Wang | Time :2025-06-11 | 97 visit: | Share:

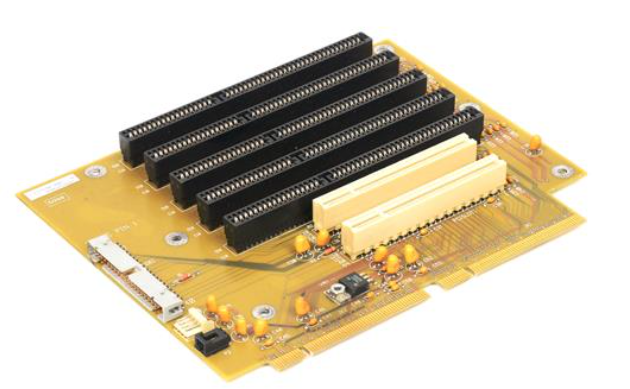

Xycom 95212B-001 Module Circuit Board Card 95213-007 8503 PCB PWA Programmable Logic Controller

Product Overview

Xycom 95212B - 001 Module Circuit Board Card, As a key component designed specifically for the field of industrial automation, it often works in conjunction with related models such as 95213-007 and 8503, playing a core role in programmable logic controller (PLC) systems. Its design aims to meet the stringent requirements for efficient data processing, precise control, and reliable operation in complex industrial environments. This circuit board achieves the acquisition, processing, and transmission of various industrial signals through carefully arranged circuit lines and high-performance electronic components, which is the foundation for ensuring the stable and efficient operation of industrial automation systems.


Technical specifications

(1) Interface type

It has a rich variety of interfaces, including but not limited to standard industrial communication interfaces such as RS-232, RS-485, and Ethernet interfaces. The RS-232 interface is suitable for short distance and low-speed data transmission scenarios, commonly used for connecting debugging equipment, sensors, etc., and can achieve reliable one-to-one communication. The RS-485 interface is widely used in industrial fieldbus networks due to its support for multi node connections, long transmission distances (up to 1200 meters), and strong anti-interference capabilities. It can connect multiple distributed devices and achieve centralized data collection and control. The introduction of Ethernet interface has greatly improved the data transmission rate, which can meet the communication requirements of high-speed and large amount of data, facilitate the access of equipment to the industrial Internet, and realize remote monitoring and management.

(2) Working voltage and power consumption

The working voltage range is DC 24V ± 10%, which is a common industrial voltage standard that ensures compatibility with most industrial power systems and has good voltage adaptability, enabling stable operation within a certain voltage fluctuation range. In terms of power consumption, the circuit board adopts a low-power design concept, with a typical power consumption of only [X] W (specific values need to refer to the product manual), effectively reducing energy consumption, reducing equipment heating, and improving system stability and reliability, especially suitable for industrial application scenarios that require energy efficiency.

(3) Storage and processing capabilities

Onboard high-performance microprocessor with powerful data processing capabilities, capable of quickly responding to and processing various signals from industrial equipment. Its computing speed can reach [specific computing speed, such as executing [X] instructions per second], ensuring precise and real-time control even in complex industrial control tasks. At the same time, it is equipped with sufficient storage resources, including [specific capacity, such as 64KB] random access memory (RAM), for temporary storage of running data and programs, ensuring the efficiency and smoothness of data processing; And [specific capacity, such as 256KB] flash memory, used to store important information such as system programs and configuration parameters, with the characteristic of not losing data in case of power failure, ensuring that the system can quickly recover to its previous working state after restart.

(4) Working temperature and humidity range

Considering the diversity of industrial environments, this circuit board has a wide operating temperature range and can operate stably in ambient temperatures ranging from -20 ℃ to 70 ℃. Whether in cold northern industrial plants or hot southern production workshops, it can work normally without being affected by temperature changes. In terms of humidity, it can adapt to environments with relative humidity ranging from 5% to 95% (without condensation), effectively avoiding problems such as circuit short circuits and corrosion caused by humid environments, ensuring reliable operation in humid industrial environments such as food processing workshops and chemical production sites.


Functional Features

(1) Data collection and processing

Capable of accurately collecting analog and digital signals from various industrial sensors. For analog signals, high-precision analog-to-digital converters (ADCs) are used to convert continuously changing physical quantities (such as temperature, pressure, flow rate, etc.) into digital signals with a conversion accuracy of up to [specific precision, such as 16 bits], ensuring the accuracy of data acquisition. When collecting digital signals, it can quickly identify and process signals with different level standards, such as TTL, CMOS, etc. The collected data is preprocessed inside the board to remove noise and interference, and then transmitted to the core processor of the PLC for further analysis and decision-making, providing a reliable data foundation for industrial automation systems.

(2) Communication control

As a key node in industrial communication networks, this circuit board supports multiple communication protocols, such as Modbus, Profibus, etc. As one of the most widely used communication protocols in the industrial field, Modbus protocol has the characteristics of simplicity, openness, and ease of implementation. This circuit board supports Modbus RTU and Modbus TCP protocols, making it easy to communicate with other Modbus devices and achieve data reading, writing, and device control. The Profibus protocol is widely used in industrial automation production lines and is suitable for communication scenarios that require high speed and real-time performance. This circuit board supports the Profibus DP protocol and can quickly and reliably exchange data with field devices, ensuring efficient operation of the production line. Through these communication protocols, the circuit board can upload the collected data to the upper computer monitoring system and receive control instructions from the upper computer, achieving remote monitoring and control of industrial equipment.

(3) Reliability Design

In order to adapt to harsh conditions such as electromagnetic interference, vibration, and impact in industrial environments, the Xycom 95212B-001 circuit board adopts a multi reliability design. In terms of circuit layout, electromagnetic compatibility (EMC) design principles are adopted, and measures such as reasonable wiring, shielding, and filtering are taken to effectively reduce the impact of electromagnetic interference on the circuit and ensure the stability of signal transmission. In terms of mechanical structure, the circuit board adopts a reinforced design, and the components are strictly screened and soldered to withstand a certain degree of vibration and impact, reducing the probability of failure caused by mechanical stress. In addition, the board also has a comprehensive self diagnostic function, which can monitor its own working status in real time. Once a fault is detected, an alarm signal is immediately issued and the fault information is recorded, making it convenient for technicians to quickly locate and troubleshoot the fault, ensuring the continuous operation of industrial automation systems.


Application scenarios

(1) Industrial automation production line

The Xycom 95212B-001 circuit board plays a crucial role in large-scale industrial automation production lines such as automobile manufacturing and electronic appliance production. It can connect various sensors (such as position sensors, pressure sensors, visual sensors, etc.) and actuators (such as motors, cylinders, solenoid valves, etc.) on the production line, collect various data in real time during the production process, such as the assembly position of components, equipment operation status, product quality inspection data, etc., and transmit these data to PLC for analysis and processing. Based on the analysis results, PLC sends control instructions to actuators through circuit boards to achieve precise control of the production process, ensuring efficient and stable operation of the production line, and improving product quality and production efficiency.

(2) Energy Management System

In energy management systems in industries such as electricity, oil, and natural gas, this circuit board is used to monitor and control key equipment in the process of energy production, transmission, and distribution. For example, in a power plant, sensors of various power generation equipment can be connected to collect real-time operating parameters of the generator (such as voltage, current, frequency, power, etc.), temperature and pressure data of the boiler, and transmit these data to the PLC of the energy management system. PLC achieves optimized control of power generation equipment, improves power generation efficiency, and reduces energy loss through data analysis. In oil and gas transmission pipelines, real-time monitoring of pressure and flow changes can be achieved by connecting pressure sensors, flow sensors, etc. Once abnormalities are detected, control instructions can be sent to relevant equipment through circuit boards in a timely manner to take emergency measures and ensure the safety and stability of energy transmission.

(3) Intelligent warehousing and logistics system

In intelligent warehousing and logistics systems, the Xycom 95212B-001 circuit board is used to control automated warehousing equipment (such as stackers, shuttles, conveyors, etc.) and logistics handling equipment (such as AGV automatic guided vehicles). By connecting sensors on the device (such as position sensors, speed sensors, cargo detection sensors, etc.), real-time operation status data of the device is collected and transmitted to the PLC. PLC sends control signals to equipment through circuit boards based on task instructions issued by the warehouse management system (WMS), achieving precise control of the equipment, completing operations such as storage, handling, and sorting of goods, and improving the automation level and operational efficiency of warehousing and logistics systems.


Installation and maintenance

(1) Installation steps

Before installing the Xycom 95212B-001 circuit board, it is essential to ensure that all related equipment is powered off and take anti-static measures, such as wearing an anti-static wristband, to avoid damage to the circuit board caused by static electricity. Firstly, according to the installation manual of the device, find the appropriate installation slot or interface position. Insert the circuit board card smoothly into the slot, ensuring that the gold fingers are fully in contact with the pins inside the slot, to avoid loosening or tilting. For the case of using external connection interfaces, use corresponding connection wires (such as communication cables, power cords, etc.) and connect the circuit board to other devices in the correct wiring method to ensure a firm and reliable connection. After completing the hardware connection, power on the device and check if the system can recognize the circuit board properly. If necessary, follow the device manual to set up the relevant software and install the driver.

(2) Maintenance points

Regularly clean the circuit board by using a clean and soft brush or compressed air to remove dust and debris from the surface of the board, preventing dust accumulation from affecting heat dissipation and electrical performance. Regularly inspect the components on the circuit board for any looseness, deformation, burning, or other abnormal phenomena, as well as the connecting cables for any damage, aging, or other issues. If any are found, repair or replace them in a timely manner. Pay attention to the working status of the circuit board during the operation of the device, such as whether there is abnormal heating, alarm indicator lights on, etc. If there is a malfunction, first refer to the equipment's fault diagnosis manual, check the relevant hardware connections and software settings, and try to troubleshoot on your own. For more complex faults, it is recommended to contact Xycom's professional technical support personnel or authorized repair institutions for maintenance. Do not disassemble the circuit board by yourself to avoid more serious damage. At the same time, regularly backup important data and configuration parameters in the equipment to prevent data loss due to circuit board failures.
