Overview

The official product manual of ABB JOKAB SAFETY for Pluto series safety PLCs. The document system introduces the core positioning, model classification, technical parameters, functional characteristics, programming software, auxiliary accessories, and application cases of this series of products, highlighting their high safety level (PL e/SIL 3), flexible scalability, and multi scenario adaptability. It aims to provide reliable safety control solutions for industrial automation scenarios, covering multiple fields such as machinery, robotics, and process industry.

Core product classification and technical parameters

(1) Core model and specifications of safety PLC

Model, Order Number, Core Configuration, Special Features

A20 v2 2TLA020070R4500 8 safety inputs+8 configurable I/O+2 relay outputs+2 transistor outputs support current monitoring (IQ16/IQ17)

B20 v2 2TLA020070R4600 8 Safety Input+8 Configurable I/O+2 Relay Output+2 Transistor Output Standard Basic Model, Supports Pluto Bus

D20 2TLA020070R6400 8 safety inputs+8 configurable I/O+2 relay outputs+2 transistor outputs, 4 analog inputs (0-10V/4-20mA)

D45 2TLA020070R6600 24 safety input+15 configurable I/O+4 relay outputs+2 transistor outputs+8 analog inputs+4 high-speed counters (14kHz)

AS-i v2 2TLA020070R1100 4 safety inputs+4 configurable I/O+2 relay outputs+2 transistor outputs support AS-i bus, 31 safety slaves

B42 AS-i 2TLA020070R1400 20 safety inputs+16 configurable I/O+4 relay outputs+2 transistor outputs Enhanced AS-i bus support

(2) General Technical Parameters

Category parameter details

Power supply parameter voltage: 24VDC (± 15%); Current: 100-500mA (depending on model); Recommended fuse 6-10A

Environmental parameters operating temperature: -10~+55 ℃; Storage temperature: -25~+55 ℃; Humidity: 90% (20 ℃) without condensation

Mechanical parameter installation method: 35mm DIN rail; Size: 45 × 84 × 118mm (narrow type)/90 × 84 × 118mm (wide type)

Bus parameter type: CAN protocol; Speed: 100k-1Mbit/s; Maximum number of units: 32; Longest distance: 600m (low speed)/150m (400kbit/s)

Output parameter relay output: 250V/1.5A (AC/DC); Transistor output: -24VDC/800mA

Core functions and features

(1) Input/output characteristics

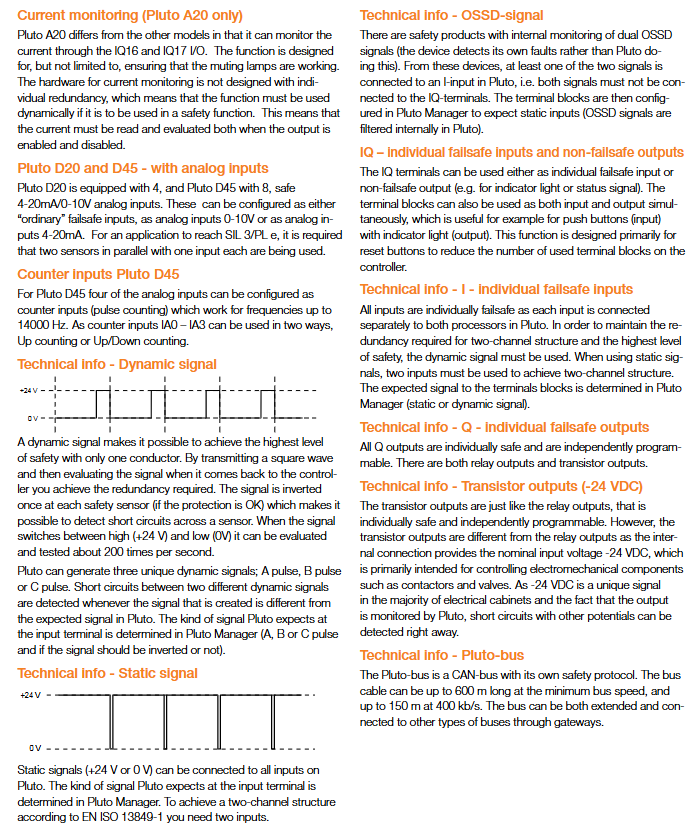

Input mode: Supports static signals (+24V/0V) and dynamic signals (A/B/C pulse types). Dynamic signals can be connected in series with 10 safety sensors (such as emergency stop buttons and safety switches) through a single input, still meeting the PL e/SIL 3 level; Static signals require two inputs to achieve dual loop redundancy.

I/O flexibility: IQ terminals can be configured as safe inputs, non safe outputs, or as inputs/outputs simultaneously (such as reset buttons with indicator lights), reducing terminal occupancy.

Special Input: D20/D45 models support analog input (0-10V/4-20mA), D45 additionally supports 4-channel high-speed counters (up to 14kHz), which can achieve speed monitoring and position counting.

(2) Communication and Expansion Capability

Internal bus: Pluto bus (CAN protocol) supports interconnection of 32 PLC units, and I/O variables can be shared between units, with a fault response delay of 10-40ms.

External Gateway: Four types of gateways cover mainstream industrial buses, enabling bidirectional communication between Pluto systems and external systems

Gateway model supports bus core function order number

GATE-P2 Profibus DP transfers 64 Boolean values+8 16 bit registers 2TLA020071R8000

GATE-D2 DeviceNet supports CAN bridging and can expand bus length to 2TLA020071R8200

GATE-C2 CANopen supports PDO/SDO message transmission 2TLA020071R8100

GATE-E2 EtherNet/IP/PROFINET/Modbus TCP built-in web server, supporting 10/100M Ethernet 2TLA020071R8300

Security Encoder: Supports RSA 597 (single turn)/RSA 698 (multi turn) encoders, with up to 16 encoders connected to the bus, and achieves secure position/speed monitoring through dedicated function blocks.

(3) Programming and software support

Programming software: Pluto Manager (provided for free with the product and available for download from the official website), using ladder diagram programming and built-in 27 standard functional blocks certified by T Ü V (such as dual loop monitoring, dual hand control, mute function, etc.), simplifies safety logic design.

Programming process: Three steps to complete configuration - ① Define I/O type and signal mode; ② Named variables (input I/output Q/register R, etc.); ③ Drag and drop function blocks to build logic, and the program can be synchronized to all PLC units through the bus.

Identifier (IDFIX): Allocates bus addresses for multiple PLC projects, supports program storage and automatic loading, and is divided into four categories: R (read-only), RW (programmable), DATA (storing AS-i code), and PROG (storing single PLC programs).

Auxiliary products and accessories

(1) Core auxiliary products

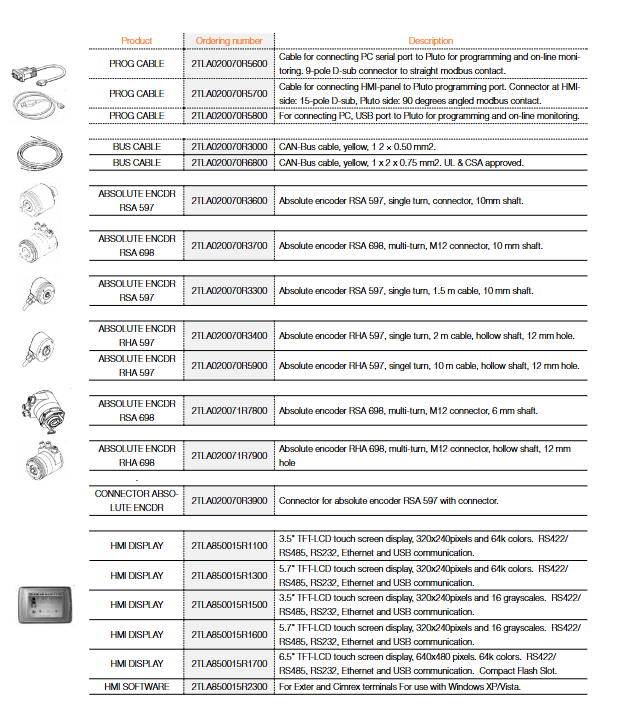

Product type represents model, function, and purpose

Secure encoder RSA 698 multi turn absolute encoder, 25 bit resolution, supports position/velocity security monitoring

Programming cable ROG CABLE 2TLA020070R5800 PC-USB to PLC programming port, used for program download and online monitoring

Bus cable BUS CABLE 2TLA020070R3000 yellow CAN bus cable, 1 × 2 × 0.5mm ² specification

HMI displays 2TLA850015R1700 6.5 "color touch screen, supports multi protocol communication, and is compatible with PLC operation

(2) Product ordering information

The document provides complete product ordering numbers (such as PLC, gateway, encoder, cable, etc.) for users to purchase directly. All core products are labeled with detailed technical parameters and applicable scenarios.

Application Cases and Security Assurance

(1) Typical application cases

Taking "robot cell+processing machine" as an example, through the interconnection of two Pluto PLCs (robot side+machine side), the following is achieved:

Emergency stop priority control: When an emergency stop is triggered, both the robot and the machine tool are stopped simultaneously;

Regional division: When the machine tool door is closed, the two operate independently, and when the door is opened, they are linked to stop the machine;

Alarm function: Display user error codes in the range of 200-299 through PLC to distinguish faults such as emergency stop, door opening, and unclosed cabin door.

(2) Safety compliance and assurance

Compliant with standards: EN 954-1 Cat.4, EN ISO 13849-1 PL e, IEC 61508 SIL 3, EN 61496-1 Type 4;

Fault detection: supports automatic detection of short circuits, sensor faults, bus faults, etc., and the safety output is immediately disconnected in case of a fault;

Data storage: Integrated UPS, keep variables stored in Flash during power outage, and restore defined state after restart.
