ABB PGC5000 Series gas chromatographs

From:ABB | Author:Wang | Time :2025-01-06 | 260 visit: | Share:

ABB PGC5000 Series gas chromatographs

Overview
The PGC5000A Generation 2 master controller
provides all analyzer system control functions and
coordinates internal and external data activities for
all of the PGC5000 Series ovens. The new controller
also supports multiple smart oven configurations to
maximize application flexibility while minimizing
space and utility requirements. The Generation 2
controller is designed with a Real Time (embedded)
Operating System (RTOS) to guarantee critical
system uptime, security and deterministic transfer
of data. The Human Machine Interface (HMI)
includes a 10.4 inch true color touchscreen SVGA
display, universal keypad and touch-pad mouse.
—
Features
Ease of use
• Graphics based touch screen HMI
Multiple configurations
• Supports multiple Smart OvenTM configurations,
• Up to 4 PGC5000B ovens
• Up to 2 PGC5000C ovens
• One PGC5000C with up to 2 PGC5000B ovens
Communication interfaces
• Ethernet, OPC, MODBUS, 4 to 20mA analog
outputs, VistaNET 2.0 compatible
Enhanced Data Storage
• Up to 7 days of chromatograms and reports via
removable SSD card
Standard inputs / outputs
• Eight isolated 4 to 20mA outputs
- Four digital outputs
- Dedicated purge alarm
- Dedicated common malfunction alarm
• Two additional configurable outputs
Application flexibility
• PGC5000B Smart Ovens target basic applications
with a fixed set of features
• PGC5000C Smart Ovens target complex
applications requiring multiple detectors for high
application density
• PGC5007 oven targets flare gas monitoring and
total sulfur process applications
• PGC5009 oven designed for fast temperature

programmed simulated distillation analysis

Specification
Master controller
Environmental (enclosure)
Protected from weather
IP 54, (NEMA 3 equivalent)
Ambient temperature range
0 to 50° C (32 to 122° F)
Humidity
95% relative humidity, non-condensing
Dimensions (W x D x H)
596.9 mm x 419.1 mm x 256.5 mm
(23.5 in. x 16.5 in. x 10.1 in.)
Weight
20 kg (44 lbs) (minimum, configuration dependent)
Mounting
Wall: 33 mm (1.3 in.) from wall with brackets
Floor
Optional dolly with casters
EMI / RFI considerations
Conform to class A industrial environment
Electrical entries
Top


Safety area classification
CSA / NRTL
Class I, Division 1; gas groups B, C, D with type Y-purge
Class I, Division 2; gas groups B, C, D Temperature Code T4
ATEX / IECEx/ CN / KO
Zone 1: CE; II2G, Ex ib py IIB+H2 T4 Gb
Zone 2: CE; II3G Ex nA IIB+H2 T4 Gb
CU TR: INMETRO

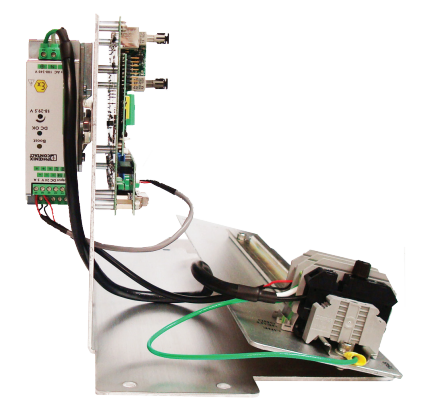

Optional X-purge power interlock Ex d ib px IIB+H2 T4
Purge wait time
18.2 minutes (Class I, Division 1 / Zone 1 area)
(hot, neutral, ground)
Power (hot, neutral, ground)
Voltage: 100 to 240 VAC
Frequency: 50 to 60 Hz
Power consumption: 120 VA startup and steady-state
operation (variable with installed options)
Instrument air
Supply connection: ¼ inch tube, minimum
Supply pressure: 414 kPa (60 psig) minimum
Quality: Clean, oil free and –34° C, ( –30° F) dew point
Instrument grade:
Flow rates – steady state purge
2 to 25 l / min (0.75 to 0.78 ft3
/ min) at 20° C,
Y-purge types
