Description of AMC2

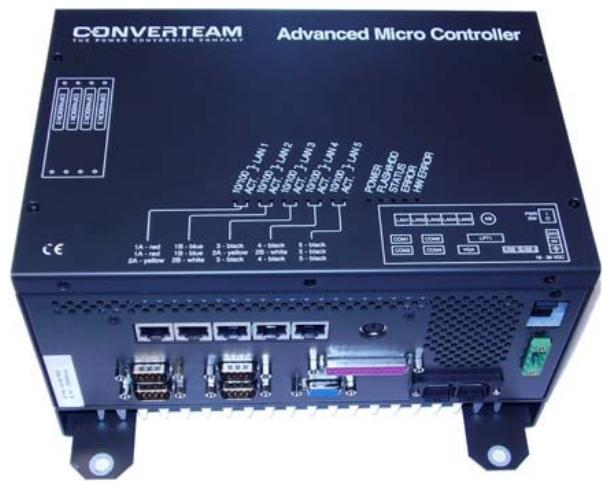

Controller Box Design: The main controller box for AMC-PLC, AMC-AU, and AMC-DP is designed by Converteam and supplied by Eltech, using the Arbor EmE7x-i701 controller board.

Appearance and Performance

A small and sturdy flange mounting box that can be installed on vertical panels.

The temperature rating without a fan is 70 ° C.

Through type testing, including 15g impact testing (compliant with IEC1131 standard).

Based on commercial off the shelf (COTS) Pentium M-class embedded CPU, the cost is low. Special orders can provide higher performance 1.40 GHz Pentium M.

Equipped with LED indicators for power supply and normal operation status, as well as an identity encryption dog port for defining the controller ID.

Integrated with 5 Ethernet ports and 4 serial links (RS232), 3 of which are available for application use, as well as high-density serial interfaces for ship DP.

Application areas: Used for ship architecture (DP and automation controllers, on-site station PLCs and redundant boxes), PEC drive controllers, and general PLC applications.

Technical Parameter

CPU: 600MHz Celeron M.

Memory: 256MB DRAM, 256MB Compact Flash.

Relative performance: Approximately twice that of AMC1 (depending on the application code).

Power supply: 24V DC ± 20% power supply, consuming approximately 0.9A.

Network: 5 LAN ports.

Serial: 4 serial ports.

USB: 2 (with Yamaichi latch system).

Expansion slots: 4 PMC/PC104+slots, suitable for 16 channel Serial 16+FIP, Profibus master, Profibus slave fieldbus, fiber optic Ethernet, etc.

Installation method: Panel installation.

Size: 234 x 206 x 120 mm.

Other features: fanless, watchdog, temperature monitoring, removable compact flash drive.

Supported software platforms: Marine Controller (Isagraf) HPCi.

Order Code

AMC is assembled and installed with basic firmware by the supplier before delivery. The ordering reference is Converteam's OIS, which defines the parts kit. Users only need to specify the ordering code.

For the 1.40 GHz Pentium M version, please contact the Ship Procurement Department (P1xx-6x53).

Partial ordering code example

AMC2 controller (5 network ports): P110-6052.

AMC2 controller (5 network ports, 1 Serial 16+): P111-6052.

AMC2 controller (5 network ports, 2 Serial 16+): P112-6052.

AMC2 controller with Windows XP (5 network ports): P106-6052, suitable for general embedded PC applications.

The ordering codes and applicable scenarios for other different configurations (such as including FIP cards, Profibus master/slave ports, etc.) are detailed in the document table.
