Vibro Meter CE 680 M511 piezoelectric accelerometer



Vibro Meter CE 680 M511 piezoelectric accelerometer

Product basic information

Project Details

Product Name: Piezoelectric Accelerator with Integrated Electronics

Model and specification CE 680 M511

Order number 444-680-000-511

Brand affiliation Vibro Meter SA (Meggitt Group)

Core positioning: Industrial machinery vibration monitoring, suitable for harsh environments

Core performance parameters

1. Electrical performance

Parameter specification values

Sensitivity (+25 ° C) 100 mV/g ± 5%

Dynamic range 80 g

Lateral sensitivity (maximum) 5% in the axial direction

Linearity within the full range ≤ 1%

Supply voltage 18-30 VDC

Input power supply current 2-10 mA (constant current)

Output impedance (maximum) 100 Ω

Bias output voltage (broadband) 12 VDC

Electrical noise (equivalent g) spectral density: 5 μ g/√ Hz at 10 Hz; 5 μ g/√ Hz at 100 Hz/1000 Hz

Protection function: reverse polarity protection, ESD protection

2. Frequency and temperature characteristics

Characteristic specification details

Frequency response -3 Hz-5 kHz: ± 5%

- 1 Hz-9 kHz：±10%

- 0.5 Hz-14 kHz：-3 dB

Resonance frequency 30 kHz

Working temperature range -55 ° C to+120 ° C

Temperature response deviation within the range of -55 ° C to+120 ° C ± 5% (typical value)

3. Environmental and mechanical characteristics

Characteristic specification values

Vibration limit (peak) 500 g

Impact limit (peak) 5000 g

Base strain sensitivity (maximum) 0.0002 g peak/μ ε

Electromagnetic sensitivity (equivalent) 70 μ g/Gauss

Hermetically sealed

Shell material 316L stainless steel

Weight 90 grams

Sensor element design PZT ceramic/shear mode

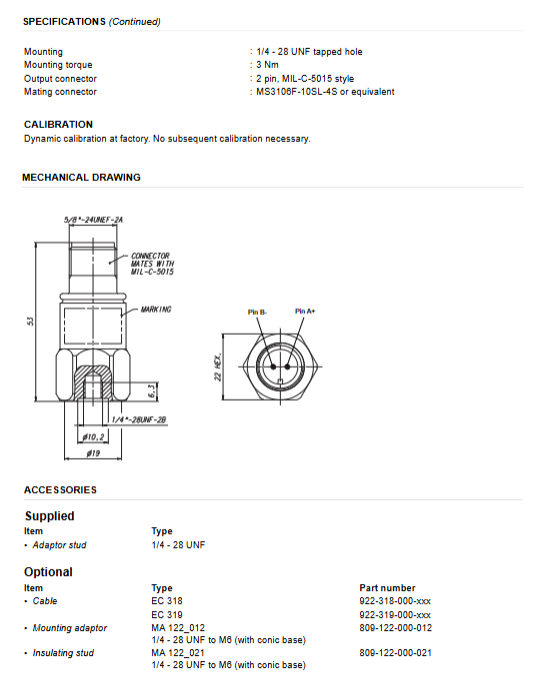

Installation and Accessories

1. Installation specifications

Installation method: 1/4-28 UNF threaded hole (2B grade)

Installation torque: 3 Nm

Output connector: 2-pin MIL-C-5015 standard interface

Compatible connector: MS3106F-10SL-4S or equivalent model

2. Accessory configuration

Type Name Specification Part Number

Standard adapter screw 1/4-28 UNF-

Optional cable EC 318 922-318-000-xxx

Optional cable EC 319 922-319-000-xxx

Optional installation adapter MA 122_012 809-122-000-012

Optional insulation stud MA 122_021 809-122-000-021

Core advantages and usage instructions

Anti interference design: shell insulation+internal shielding, avoiding interference from grounding loops and frame voltage on measurement, suitable for complex industrial environments.

Stability performance: Excellent bias voltage stability under high temperature, low noise level, ensuring measurement accuracy.

Calibration feature: Dynamic calibration is completed at the factory, and no additional calibration is required for subsequent use, reducing maintenance costs.

Applicable scenarios: Suitable for industrial machinery vibration monitoring, especially for equipment status monitoring in harsh environments.
