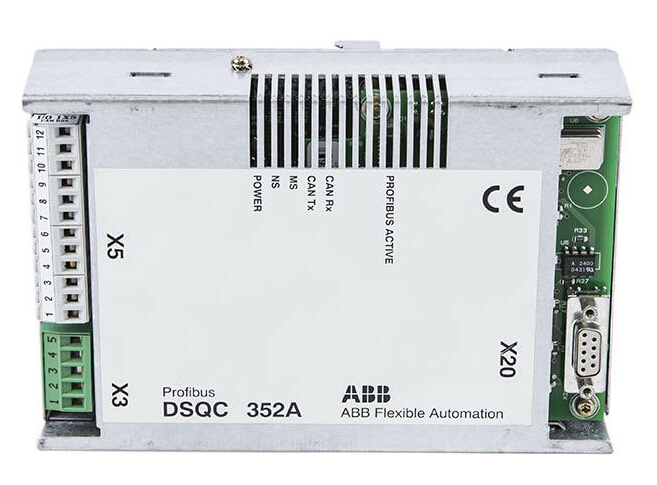

ABB DSQC352 High Performance Input/Output Module

ABB DSQC352 High Performance Input/Output Module

Module Overview

ABB DSQC352 high-performance input/output module is a core device designed for industrial automation scenarios. Its compact design and powerful functions enable it to operate stably in complex industrial environments and efficiently realize data interaction between external devices and automation systems, which is an important part of automated production lines and industrial control systems to realize precise control and monitoring.

Hardware Architecture

Overall Layout

The module adopts standard size design, which is easy to be installed in various control cabinets. The shell has good protection performance, can effectively resist dust, moisture and electromagnetic interference, to ensure normal operation in harsh industrial environments.

Interface Configuration

Power supply interface: support DC 24V power supply, power input port with over-voltage, under-voltage protection, when the voltage exceeds the range of 18-30V, it will automatically cut off the power supply to protect the internal circuit of the module, and at the same time, it is equipped with reverse connection protection to prevent damage to the module due to wiring errors.

Communication interface: Equipped with a variety of communication interfaces, including Profibus DP, DeviceNet and other fieldbus interfaces; Profibus DP interface communication rate up to 12Mbps, which can realize high-speed data transmission between the module and PLC and other master devices; DeviceNet interface follows the specification of DeviceNet protocol, which can be quickly networked with other devices supporting the protocol. DeviceNet interface follows DeviceNet protocol specification and can be quickly networked with other devices that support this protocol, making it convenient and flexible to access different automation systems.

Input/Output Interface: The input/output ports adopt plug-and-play terminals, which is convenient for wiring and maintenance. The material of the terminals is high-quality copper alloy, which has good conductivity and oxidation resistance to ensure stable signal transmission.

Performance Parameters

Input Parameters

Digital input: the module is usually equipped with 16 digital input channels, which can receive TTL/CMOS level signals. Input response time is very short, typical value is less than 1ms, which can quickly capture the state changes of external devices. Support a variety of input modes, such as active high, active low, rising edge trigger, falling edge trigger, etc., can be set flexibly through the module configuration software. Input signal isolation voltage up to 500V AC, effectively preventing the impact of external electrical interference on the module.

Analog Input: Generally has 8 analog input channels, supports voltage (e.g. 0 - 10V, ±10V) and current (e.g. 4 - 20mA) two types of input signals. The resolution of the analog inputs is up to 12-bit, which enables high-precision signal acquisition. The input signal range can be configured by software, and it has over-voltage protection function, when the input voltage exceeds 120% of the rated range, it will automatically carry out current limiting protection to ensure the safety of the module.

Output Parameters

Digital outputs: 16 digital output channels, the output type is transistor output, the maximum output current can be up to 2A, which can directly drive small relays, solenoid valves and other loads. The output response time is also less than 1ms, which can realize fast equipment control. The output signal isolation voltage is 500V AC, which can effectively isolate the external devices and modules and improve the stability of the system.

Analog Output: Usually 4 analog output channels are provided, which can output voltage (e.g. 0 - 10V, ±10V) or current (e.g. 4 - 20mA) signals. The resolution of analog output is 12 bits, with high output accuracy and full scale error less than ±0.5%. The output signal has a short-circuit protection function, when the load is short-circuited, it will automatically cut off the output current to protect the module and external equipment.

Application Scenario

Automobile manufacturing industry

In the automobile production line, it is used to control the robotic arm, conveyor line, welding equipment, and so on. The digital input channel receives signals detected by sensors such as workpiece position and equipment status, and the analog input channel collects process parameters such as pressure and temperature; the digital output channel controls the movement of the robotic arm and the opening and closing of the fixture, and the analog output channel adjusts the welding current and spraying flow, etc., realizing automation and precise control of automobile production and improving production efficiency and product quality.

Machining industry

It can be connected to CNC machine tools, machining centers and other equipment. Real-time monitoring of tool status, workpiece clamping, etc. through digital input, analog input acquisition of cutting force, spindle temperature and other parameters; digital output control of coolant switch, tool change action, analog output adjustment of spindle speed, feed rate, etc., to ensure the stability and efficiency of the machining process, improve machining accuracy and equipment utilization.

Chemical industry

In the chemical production process, it is used to monitor and control various process parameters. The analog input collects signals such as temperature, pressure, flow, liquid level, etc., and the digital input receives valve status and equipment start/stop signals; the digital output controls valve switching, pump starting and stopping, and the analog output adjusts the opening of regulating valves, realizing the automated control and safe operation of the chemical production process and guaranteeing the stability of the process and the quality of the products.
