EATON EasyE4 Nano Compact Programmable Logic Controller

EATON EasyE4 Nano Compact Programmable Logic Controller

Product basic positioning and core advantages

Product Description: EasyE4 Nano is a compact programmable logic controller (PLC) launched by Eaton, with a focus on the concept of "convenient control". Its core features are compact size, high scalability, and ease of operation, designed specifically for small and medium-sized control scenarios.

Core strengths

High scalability: The basic equipment contains 12 I/O points, which can connect up to 11 expansion modules, and the total I/O points can be expanded to 188, suitable for diverse needs ranging from small single machine control to medium-sized system networking;

Multi scenario adaptation: supports multiple power specifications, multiple I/O type combinations, covering lighting, energy management, industrial control, irrigation, pump control HVAC、 Multiple fields such as smart homes;

Convenient Visualization: Supports local display screen operation, Ethernet connection to HMI (such as XV100/XV300), wireless web access (standard browsers accessed through routers), and flexible switching between on-site and remote monitoring.

Hardware configuration details

(1) Basic equipment specifications

Basic equipment model input configuration (digital/analog/digital) output configuration (transistor/relay) power specification size (mm) Remarks

EASY-E4-UC-12RC1 4/4/0 0/4 (8A) 12Vdc, 24Vdc, 24Vac 71.5 × 90 × 58 screw terminals with display screen and keyboard

EASY-E4-UC-12RCX1 4/4/0 0/4 (8A) 12Vdc, 24Vdc, 24Vac 71.5 × 90 × 58 screw terminals, no display screen

EASY-E4-DC-12TC1 4/4/4/0 24Vdc 71.5 × 90 × 58 screw terminals with display screen and keyboard

EASY-E4-DC-12TCX1 4/4/4/0 24Vdc 71.5 × 90 × 58 screw terminals, no display screen

EASY-E4-AC-12RC1 8/0/0 0/4 (8A) 100-240Vac, 100-240Vdc 71.5 × 90 × 58 screw terminals with display screen and keyboard

EASY-E4-AC-12RCX1 8/0/0 0/4 (8A) 100-240Vac, 100-240Vdc 71.5 × 90 × 58 screw terminals, no display screen

(2) Expansion module specifications

Expansion module type model example input configuration (digital/analog) output configuration (relay/transistor/analog) power specification size (mm) output capability

Digital I/O (screw terminal) EASY-E4-UC-8RE1 4/0 4 (5A)/0/0 12Vdc, 24Vdc, 24Vac 35.5 × 90 × 58 relay output 5A

Digital I/O (screw terminal) EASY-E4-UC-16RE1 8/0 8 (5A)/0/0 12Vdc, 24Vdc, 24Vac 71.5 × 90 × 58 relay output 5A

Digital I/O (screw terminal) EASY-E4-AC-8RE1 4/0 4 (5A)/0 100-240Vac, 100-240Vdc 35.5 × 90 × 58 relay output 5A

Digital I/O (screw terminal) EASY-E4-AC-16RE1 8/0 8 (5A)/0 100-240Vac, 100-240Vdc 71.5 × 90 × 58 relay output 5A

Transistor I/O (screw terminal) EASY-E4-DC-8TE1 4/0/4/0 24Vdc 35.5 × 90 × 58 transistor output 24Vdc

Transistor I/O (screw terminal) EASY-E4-DC-16TE1 8/0 0/8/0 24Vdc 71.5 × 90 × 58 transistor output 24Vdc

Analog I/O (screw terminal) EASY-E4-DC-6AE1 0/4 0/2 24Vdc 35.5 × 90 × 58 analog input 4 channels+analog output 2 channels

Temperature input (screw terminal) EASY-E4-DC-4PE1 0/4 (temperature) 0/0/0 24Vdc 35.5 × 90 × 58 4-channel temperature input

(3) Startup box specifications

Startup Box Model Input Configuration (Digital/Analog/Digital) Output Configuration (Transistor/Relay) Power Specification Remarks

EASY-BOX-E4-UC1 4/4/0 0/4 12Vdc, 24Vdc, 24Vac including basic equipment, screw terminals, software authorization

EASY-BOX-E4-DC1 4/4/4/0 24Vdc including basic equipment, screw terminals, software authorization

EASY-BOX-E4-AC1 8/0/0 0/4 100-240Vac, 100-240Vdc including basic equipment, screw terminals, software authorization

Detailed explanation of functional features

Programming ability

Programming language: supports 4 programming methods to meet different user habits;

Advanced features: Built in counter, edge trigger, timer controlled interrupt and other complex functions, supporting user-defined function blocks, simplifying repetitive logic programming;

Software support: EasySoft 7 programming software (authorized model EASYSOFT-SWLIC) is required to enable program writing, uploading, downloading, and debugging.

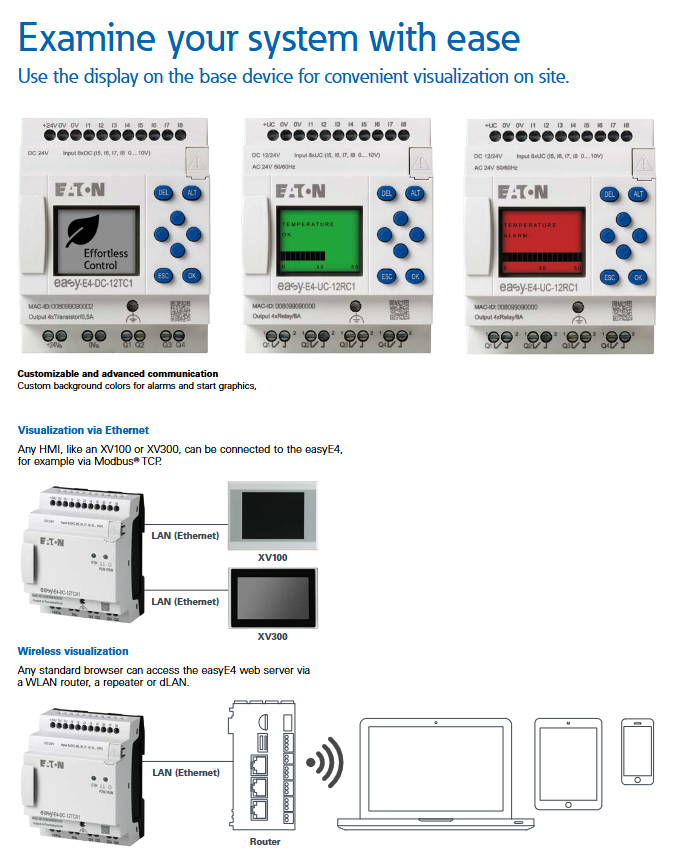

Visualization and Communication

Local visualization: Basic devices with display screens support on-site status viewing and parameter configuration, making operation convenient;

Remote visualization: Connected to HMI via Ethernet (such as XV100/XV300), supporting Modbus TCP protocol; Through WLAN routers, repeaters, or dLANs, standard browsers can access device web servers for wireless monitoring;

Personalized settings: Support custom alarm background colors and startup graphics to enhance operational recognition.

Power supply and accessories

Special power supply: PSL series 24Vdc output power supply, input 100-240Vac, power coverage of 10 W（0.42A）、30W（1.25A）、60W（2.5A）、100W（3.8A）， Plastic shell design, suitable for different power requirements;

Other accessories: Connection accessory kit (model EASY-E4-CONNECT1), including 4 connectors and 3 covers, used for equipment connection and protection.
