How to troubleshoot Ethernet faults in EPIC III series controllers?

How to troubleshoot Ethernet faults in EPIC III series controllers?

To troubleshoot Ethernet faults in EPIC III series controllers, one can start with hardware connections, IP address settings, software functionality, and network components. First, check if the physical connection is normal, then check if the IP address conflicts or is configured incorrectly, then check if there are any abnormalities in software operation, and finally investigate if there are any problems with network components.

Hardware connection check

Cable connection: EPIC III series controllers use Cat 5E FTP cables with RJ45 connectors. Check whether the cable is damaged or bent, and whether the RJ45 interface is loose. You can confirm whether the connection is good by re plugging and unplugging the cable. If there is obvious damage to the appearance of the cable, a new cable needs to be replaced.

Controller Ethernet Port: The Ethernet port of the controller is RJ45 10/100M/bit auto negotiation type. Check the appearance of the port for any damage, such as bent or broken pins. If the port is damaged, it may be necessary to repair or replace the Ethernet module of the controller.

Switch ports: The Ethernet switch ports connected to the controller also need to be checked. Check if the indicator light corresponding to the switch port is on. If it is not on, try replacing the switch port for connection to determine if it is a switch port failure.

IP address setting check

Uniqueness check: Each controller must have a unique IP address in the network. Scan the network through the IP config window of PC-MTU software to see if there are duplicate IP addresses. If there is a duplication, follow the method of setting the IP address in the manual, such as using the configuration switch to reset, to ensure that the IP address of each controller is unique.

Configuration correctness check: Confirm that the IP address, subnet mask, and gateway configuration of the controller are correct. You can refer to the steps in the manual to set the IP address using configuration switches, specific IP numbers, or DHCP, and check if the settings meet the requirements. If using DHCP, it is necessary to ensure that the DHCP server is working properly and configured correctly.

Software operation check

PC-MTU software: PC-MTU software is used to set up, operate, and monitor controllers in a network. Check if the software can be opened normally. If it cannot be opened, check if it meets the system requirements of the software, such as whether the operating system is Microsoft Windows ®  2000 or Microsoft Windows XP ®， Is Microsoft Internet Explorer installed ®  Is the memory at least 128MB for version 6.0 or higher. If the software has abnormal functions after opening, such as being unable to scan the controller, you can try reinstalling the software.

Controller Web Page: Double click the controller name using PC-MTU software to access its web page. If unable to access, check the network connection and IP address settings, and also check if the controller's web server is running properly. You can try accessing it using other browsers or view the controller's log files (if available) to obtain more information about the running status of the web server.

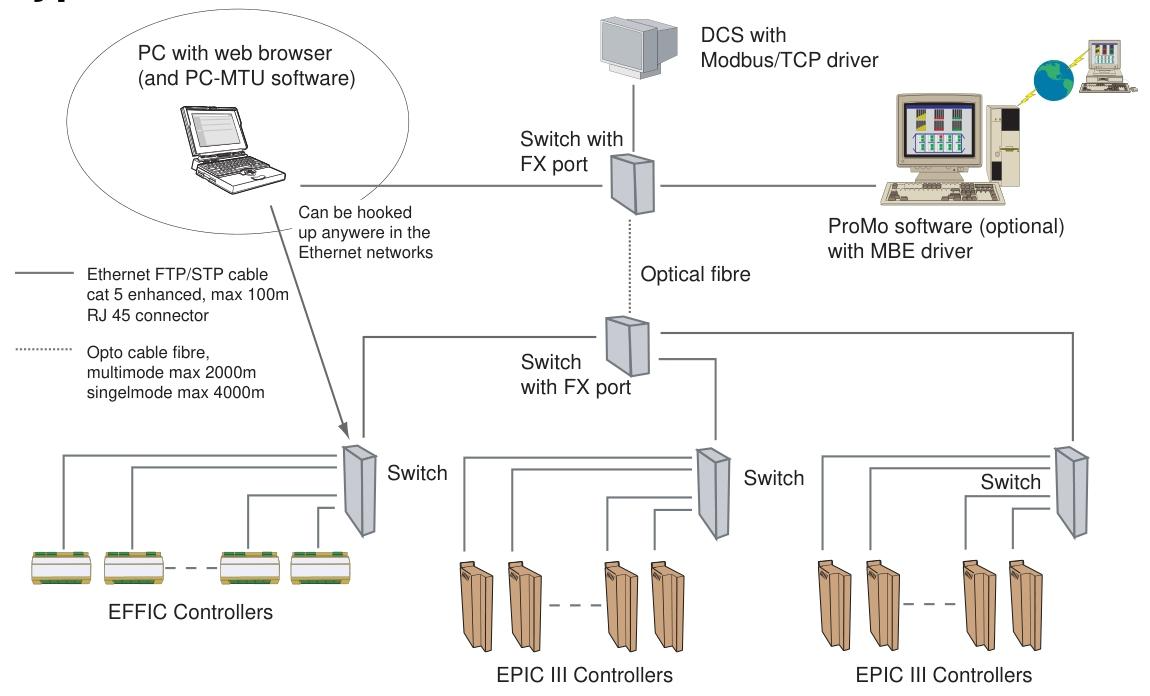

Network component inspection

Ethernet switch: Ethernet switches should comply with EMC immunity for industry EN 50082-2 or EN 61000-6-2 standards. Check the working status of the switch, check whether the indicator lights of the switch are displaying normally, and whether there are any error messages. If the switch malfunctions, it may cause abnormal network connections. You can try replacing the switch for testing.

Router: Routers should not be installed in EPIC III Ethernet networks as PCMTU and main functions may not function properly through the router. Check if the router is accidentally connected to the network, and if so, remove the router before testing the network connection.
