Eaton TX series cam switch and PX series load isolation switch

Eaton TX series cam switch and PX series load isolation switch

Product Overview

Core positioning: Eaton's TX/PX series is a high-performance switch product for industrial, handicraft, and construction service management. The TX series is a cam switch and the PX series is a load isolation switch, with high reliability and multi scenario adaptability. It supports modular configuration and non-standard customization, meeting diverse needs from simple on-off to complex motor control.

Core strengths

Reliable protection: The front panel has an IP65 protection level and is suitable for harsh industrial environments

Comprehensive specifications: current coverage of 20A-175A, motor power adaptation of 6.5kW-55kW

Complete certification: Passed international standards such as CCC, CE, IEC/EN 60947, IEC/EN 60204, etc

Flexible installation: supports 5 installation methods: flat, surface, rear, distribution cabinet, and center, suitable for different installation scenarios

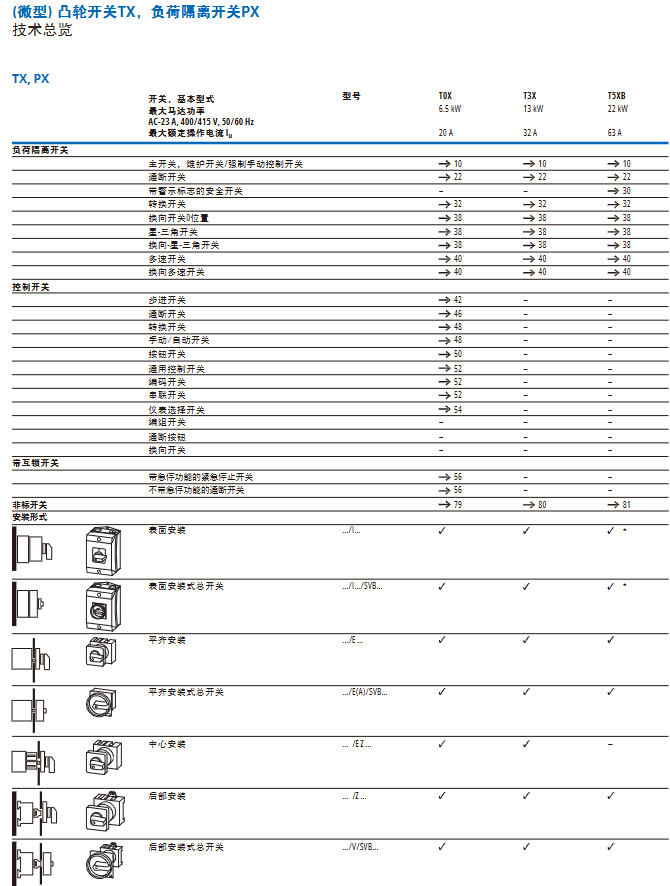

Product series and core parameters

Product series subdivision models Rated current Maximum motor power (400V AC-23A) Core characteristics

TX cam switch T0X 20A 6.5kW with up to 11 contact modules and 22 double break contacts

T3X 32A 13kW supports more accessory extensions and is suitable for medium-sized control scenarios

T5XB/T5X 63A/100A 22kW/30kW contact module with a depth of 16.5mm, suitable for high-power equipment

PX load isolation switch P1X-25/32 25A/32A 13kW/15kW compact size, supports 3+N-pole configuration

P3X-63/100 63A/100A 37kW/50kW short-circuit withstand current 1260A/2000A (1 second)

P5X-125/175 125A/175A 45kW/55kW rated impulse withstand voltage 8000V AC, suitable for heavy loads

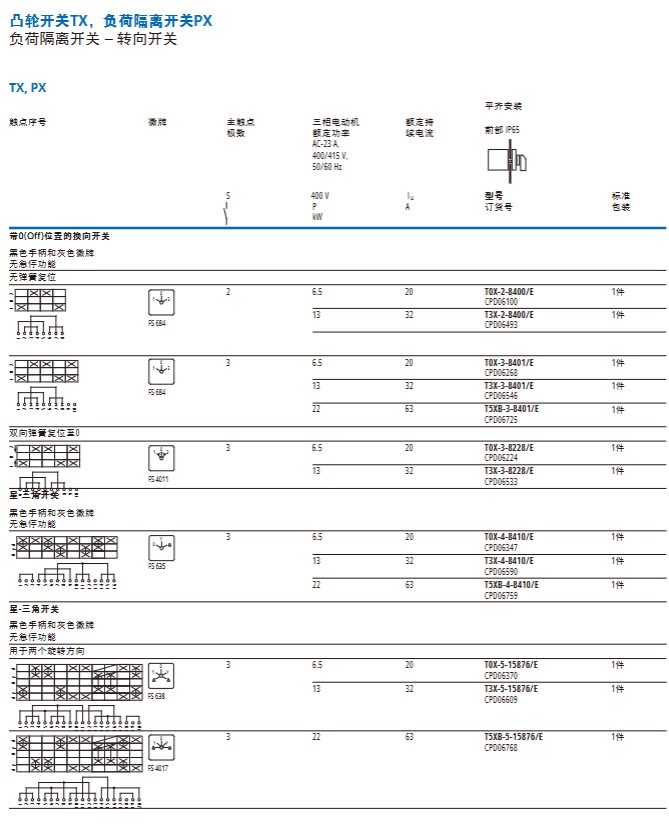

Main switch types and application scenarios

Switch category, specific type, typical application

Load isolation switch main switch/maintenance switch, on-off switch, transfer switch, reversing switch, star delta switch equipment main power control, motor start stop, power switching

Control switch stepper switch, manual/automatic switch, instrument selection switch, general control switch parameter adjustment, mode switching, instrument switching

Special switch multi speed switch, emergency stop switch, coding switch, series switch multi speed motor control, emergency power-off, signal coding

Customized Contact Sequence Switch for Non standard Switches (F02 Customization Form Required) Special Control Logic Scenarios

Modular attachments and configuration

Function expansion module

N-pole module (N-P1X/P3X/P5X series): early closing/delayed breaking, can be installed on the left/right side, with breaking capacity consistent with the main contact

Auxiliary contact module (HI11-P1X/P3 series): 1 normally open+1 normally closed contact, compatible with signal feedback and control circuit expansion

Operation and protective accessories

Operation accessories: Thumb handle (black/red, in accordance with IEC/EN 60204-1 emergency stop standard), extension rod (up to 4 × 25mm extension), interlock mechanism (door interlock/cover interlock)

Protective accessories: terminal cover, padlock device (up to 3 padlocks), insulated distribution box (CI-K series)

Identification attachments: Emblem (including different switching angle identification), front panel with lettering attachment (ZFS series)

Configuration principle: Accessories should match the switch model and installation method. For example, the P1X surface installation model only supports the installation of N-pole modules on the left side

Key technical data

Lifespan and operating frequency

Mechanical lifespan: TX series 400000 on-off cycles, PX series 100000 on-off cycles

Electrical lifespan: Under AC-3 load, the longer the breaking current, the shorter the lifespan (e.g. about 100000 times at T0X 20A)

Maximum operating frequency: 3000 times/hour (TX series), 50 times/hour (PX series)

Breaking ability (AC-3, cos φ=0.35)

T0X (20A): 100A at 380V, 110A at 400V

P3X-100 (100A): 760A at 400V, 520A at 690V

P5X-175 (175A): 900A at 400V, 340A at 690V

Wiring ability

Solid/Twisted Wire: P1X supports 1.5-6mm ², P5X supports 50-70mm ²

Flexible cord (with metal sleeve): P3X supports 1.5-25mm ², P5X supports 16-70mm ²

Tightening torque: M4 terminal 1.6Nm, M10 terminal 14Nm

Ordering and selection information

Model composition: adopting modular coding, including series, current level, installation method, accessory configuration and other information (such as T0X-1-8200/E represents T0X series, 1 contact module, on-off switch, flush installation)

Standard packaging: 1 piece/box for most models, 5 pieces/10 pieces/25 pieces/box for accessories (such as handles and modules)

Non standard customization: A F02 customization form is required to specify the requirements for contact sequence, switching angle, spring reset, etc. For repeated orders, only the contact number and country identifier need to be specified

List index: The document appendix contains a complete material number model correspondence table (92 pages in total), covering the entire series of standard and non-standard products, making it easy to quickly query order numbers

Dimensions and installation specifications

Installation hole size (core example)

Central installation: Hole Ø 22.3mm (T0X/T3X/P1X)

Surface installation: T0X base size 137 × 120mm, P1X base size 160 × 100mm

Contact module depth: T0X/T3X 9.5mm, T5X (B) 16.5mm

Installation environment requirements

Temperature: Open environment -25 ℃~+50 ℃, closed environment -25 ℃~+40 ℃

Shock resistance: Half sine wave 20ms, 15g (compliant with IEC/EN 60068-2-27)

Installation position: Any angle, ventilation gap needs to be reserved (such as surface installation reserved ≥ 50mm)
