ABB GCD207B101 high-performance control module

From: | Author:Wang | Time :2025-07-21 | 123 visit: | Share:

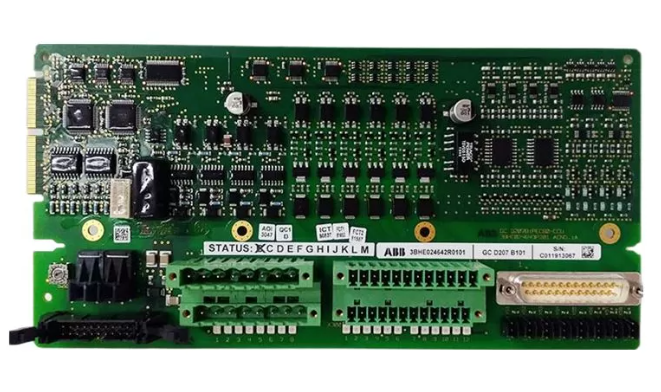

ABB GCD207B101 high-performance control module

Product Overview

ABB GCD207B101, as a high-performance control module, plays a core role in industrial automation systems. It bears the responsibility of receiving and processing sensor input signals, and accurately outputs control signals based on preset logic and control algorithms to drive actuators or devices to complete various complex actions. This module, with its compact design and high-quality material manufacturing, has excellent reliability and efficiency, and can handle harsh industrial environments with ease. It is suitable for diverse and complex industrial application scenarios, providing solid support for industrial automation processes.


Specification parameters

Input voltage: 24V DC

Output voltage: 24V DC

Input current: 0.5A

High load current: 2A

Working temperature range: -20 ℃ to+70 ℃

Storage temperature range: -40 ℃ to+85 ℃

Protection level: IP67

Size: 120 x 120 x 40mm

Weight: 0.5 kilograms


Core functions

Signal processing: Efficiently receive and process analog and digital signals from various sensors, with strong anti-interference ability, ensuring the accuracy and stability of signal processing, and providing reliable basis for subsequent control decisions.

Control output: Based on preset logic and algorithms, accurately output control signals to the actuator, and flexibly adjust parameters such as amplitude and frequency of the output signals to achieve precise control of the equipment.

Communication Interaction: Supports various common communication protocols such as Modbus and Profibus, enabling convenient data exchange with other systems or devices, achieving system integration and collaborative work.

Self diagnosis and warning: Built in self diagnosis function, real-time monitoring of its own operating status. Once a fault or abnormality is detected, it can quickly locate the problem and issue a warning, greatly improving the maintenance efficiency and reliability of the system.


Working principle

When the sensor signal is transmitted to the GCD207B101 module, it first goes through the signal conditioning circuit to filter, amplify, and preprocess the signal to adapt to the processing circuit inside the module. Subsequently, the signal is transmitted to the core processor, which analyzes and calculates the signal according to a preset control algorithm, and generates corresponding control instructions. After passing through the power amplification circuit, these instructions are output to the executing mechanism to drive the device to operate. At the same time, the module continuously monitors its own operating status, including temperature, voltage and other parameters. Once an abnormality is detected, it immediately starts the self diagnostic program, determines the fault location through internal logic, and feeds back the fault information to the system upper computer.


Key advantages

High reliability: Through strict quality control and testing processes, high-quality materials are selected to ensure stable operation in harsh environments such as high temperature, high humidity, and strong electromagnetic interference, reducing equipment downtime due to malfunctions.

Easy to configure and maintain: The design follows the principle of simplicity and ease of use, and users can easily configure and debug parameters with the help of supporting software. Its self diagnostic function can quickly locate faults, reducing maintenance difficulty and costs.

Powerful compatibility: Supports multiple communication protocols, making it easy to seamlessly connect and communicate with devices and systems of different brands and types, facilitating the construction of complex automation control systems.

High precision control: With excellent signal processing capabilities and precise control algorithms, it can achieve high-precision control of equipment and meet the strict requirements of industrial production for control accuracy.

Strong environmental adaptability: The working temperature range is wide from -20 ℃ to+70 ℃, and the protection level reaches IP67. It can adapt to different industrial environments, from cold outdoor to high-temperature industrial workshops, and can work normally.


Precautions

Installation environment: It should be installed in a well ventilated, dry, and non corrosive gas environment, avoiding direct sunlight. The installation location should be far away from strong electromagnetic interference sources, such as large motors, transformers, etc.

Power connection: It is necessary to ensure that the input power supply is stable at 24V DC to prevent voltage fluctuations from exceeding the allowable range. It is recommended to equip a regulated power supply. At the same time, pay attention to the correct connection of the positive and negative poles of the power supply to avoid damaging the module due to reverse connection.

Communication settings: When establishing a communication connection, carefully check the communication protocol, baud rate, data bits, and other parameter settings to ensure consistency with other devices to avoid communication failures.

Maintenance operation: Regularly check the operating status of the module, including indicator light status, temperature, etc. If a module needs to be replaced, it must be done in a power-off state and operated according to the operating procedures to prevent static electricity from damaging the module.


Similar model supplement

In the ABB product system, models with similar functions to GCD207B101 include:

GCD205: It also has the basic functions of a control module, but is slightly inferior to GCD207B101 in processing speed and communication interface quantity. It is suitable for industrial automation scenarios with relatively low performance requirements and smaller system scales.

GCD210: With higher processing capabilities and richer expansion interfaces, it supports more sensor access and actuator control, making it suitable for large and complex industrial systems with extremely high reliability and scalability requirements.
