GE Intelligent Platform supports PROFINET protocol PACSystems Control System

Utilizing open intelligent systems

optimize performance

Set a new standard for open system integration, GE utilizes

The PROFINET protocol provides a new technology - achieving real-time control,

Make the interconnection operation between devices simpler, more economical, and with superior performance.

With the increasingly fierce competition and rapid increase in cost pressure

The demand for optimizing business performance has become increasingly important

I need it. Advanced control modes are gradually transitioning from centralized control systems

Transition to a distributed structure and design various levels of automation

Ethernet communication on top, implementing open IT standards, obtaining

To gain a more advantageous competitive position.

The key essence of controlling performance lies in flexibly solving real-time data

According to transmission issues, including data volume, latency, and communication

Frequency. Manage a large number of devices flowing into business application software

Real time data of the item requires a solution to enable you

Capable of connecting and transmitting more business information without compromising

Low system performance.

In response to these issues, GE Intelligent Platform will innovate with advanced technology

Large and medium-sized remote IO application technology and in-depth industry knowledge

By combining knowledge and skills, we have developed a protocol based on PROFINET

The PACSystems controller. PROFINET is global

Open protocol, based on standard Ethernet, capable of implementing

Real time system control to optimize system data and improve performance

Improve system control performance. For distributed I/O, it has

High flexibility enhances network performance.

Easily improve performance

PACSystems supports PROFINET protocol through hardware communication modules, providing a powerful platform that is easy to operate

Operation and maintenance enable you to configure the entire system in minutes without the need for external hardware to build the entire Ethernet network

Network. It is suitable for control system requirements in different industries, including water treatment, pipeline monitoring, mining, transportation, and more

It controls the application of critical systems.

Main advantages

Quick installation, simple configuration of application software, saving

time

Utilize industry recognized high-performance redundancy technology to increase

Enhanced the reliability and availability of the control system

Using simple and easy-to-use programming configuration tools to reduce

Reduced maintenance costs

For existing fieldbus and GENIUS networks

Users, provide a more convenient upgrade solution

Directly connect with third-party devices to reduce costs

Improve production efficiency

A trustworthy partner who grows together with you

Being with GE means you have the opportunity to collaborate with a mature, stable, and respected partner

The advantages of working together as partners. In addition to the opportunity to share the financial and technological leadership of global business and technology leaders

In addition to human resources, you can also participate in our innovative solutions and gain strength from us

To achieve business success through service support.

Maintain a competitive lead

Utilizing PACSystems controllers that support PROFINET protocol

Special advantage, you can maintain a business lead over competitors in the same industry.

Our advanced control technology and convenient communication based on Ethernet enable

Your operational ability has reached a new level.

Simplicity - The controller and I/O devices can be directly connected through standard optical or copper cables without the need for additional external connections

The switch enhances the interoperability of directly connecting third-party devices. Everything can be integrated through name based configuration,

Can be quickly resolved within a few minutes.

Powerful functionality - high-speed networks provide the feasibility of connecting more I/O devices without compromising the system's performance

Overall performance. You can use this controller in high noise interference environments; It has a wide coverage area and can ensure real-time communication

Trust is unrestricted. To achieve maximum reliability, our embedded I/O ring redundancy and intelligent technology enable nodes to

Continue working after cable breakage without dismantling the application equipment. Moreover, utilizing our upgradable synchronous CPU hot standby redundancy

The Yu Control Platform allows you to continuously control applications and production processes, achieving the highest availability.

Open - PACSystems uses open standard components with high performance, productivity, and flexibility,

Thus providing a first-class solution. The integration of PROFINET is part of our continuous efforts to achieve a

A powerful open system that provides you with a proactive upgrade and porting path, allowing you to integrate the latest available technologies

The technique also protects your existing investments.

If you are currently using the Genius network, please contact

We can upgrade by utilizing simple and convenient methods

Method to upgrade your system to support ProfiNet protocol

PACSystems。 You can fully feel the benefits brought by the upgrade

Regarding distance, speed, installation, and interaction with third-party devices

Improvement of continuous performance indicators - through systematic control

Can optimize to improve productivity

Powerful open protocol

For large and medium-sized distributed control systems, based on Ethernet standards

Accurate network layout and maintenance without increasing the complexity of the control system

Heterogeneity and increased system costs require smaller cabinet installation sizes

To achieve long-distance, flexible, and high-performance system control.

PACS y s items RX3i PROF INE T controller

(PNC) module connected to PACSystems RX3i controller

Communication speed of 1Gbps with high-speed IO network, connection and control

Produce I/O devices and provide all functions and services.

PNC supports copper cables, multimode optical fibers, and single-mode optical fibers, from

And achieve a system architecture with flexibility and high performance price ratio

Structure. Using SFP technology and standard RJ-45 connectors, one

A module can support multiple communication types simultaneously. and

Moreover, through the embedded switching technology of the module, it is possible to

Connect directly without the need for external devices to reduce configuration

Time and cost.

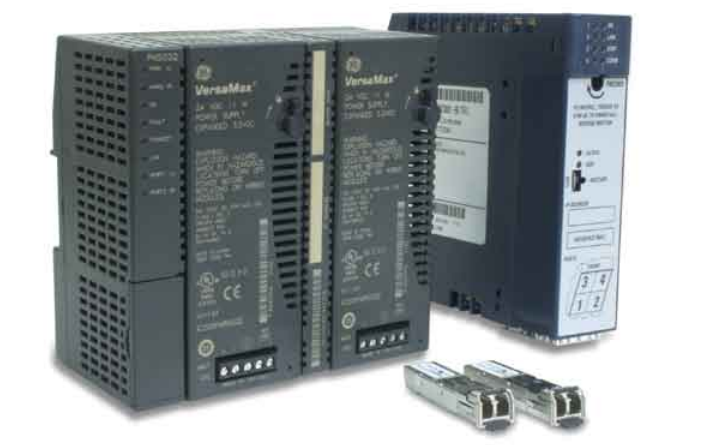

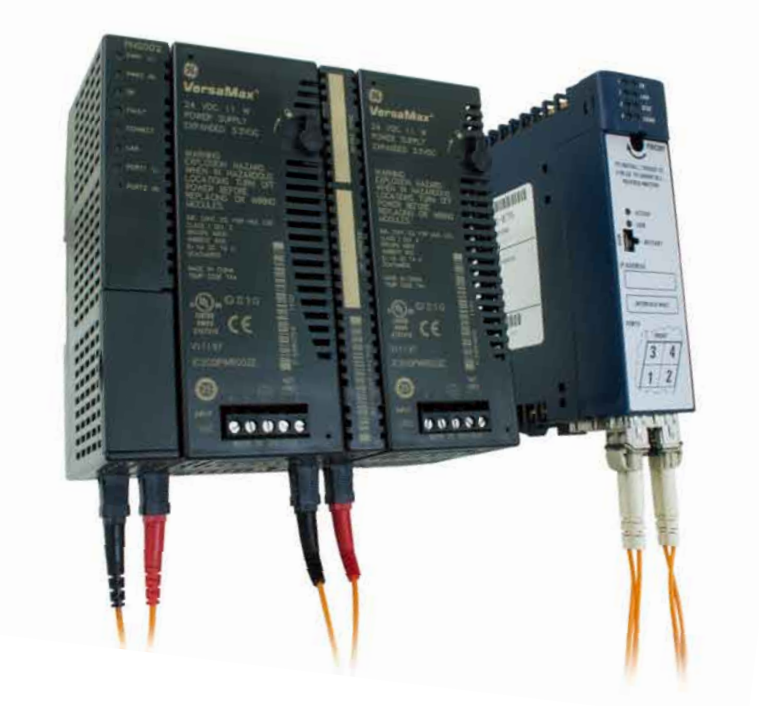

PACSystems * PROFINETScanner (PNS) module

Connect the remote I/O nodes of the VersaMax I/O module to the block

Received PROFINET I/O controller. This can be achieved through two methods

There are two ways to achieve this, namely copper cable and optical cable. PNS allows you to

Adopting network media that meets its own application requirements and embedding it

In exchange technology is used to eliminate and simplify the attachments required for applications

Add hardware.

It supports redundant power supplies to keep your application system connected

Interrupted operation allows you to maintain remote I/O nodes without interruption

By shutting down the system, the continuity and maintenance of operations are ensured

The simplicity.

Adopting PACSystems control that supports PROFINET protocol

Maker, can save you time and money, meet your needs more

The demand for long distances, higher speeds, and fewer external devices.

Without the need for external devices, it can achieve up to 2

The communication distance is up to kilometers, and each controller module can reach a maximum of

64 I/O nodes, with a running speed of up to 1Gbps.

Ensure maximum reliability

And flexibility

Through the built-in switch, users can flexibly implement the bus

Type, or ring network topology, and due to the absence of external switching

Machine, therefore, can save costs for users.

To enhance system availability, PROFINET PACSystems enables you to operate in different network topologies

Flexible combination of PNC and PNS in the structure, including linear, star or ring, to meet your needs

Set demand. It is compatible with your existing infrastructure and reduces customization costs.

Circular topology, linear topology

The advantages of the well-known circular topology structure with the Label Media Redundancy Protocol (MRP) are as follows: using a circular topology, the system can still communicate if a cable is disconnected at one point. Not like that

To avoid communication paralysis caused by a single point of network failure, dual buses, larger installation space, and additional costs are required, and a circular structure is configured

Simply add a single Ethernet cable between the last node of the linear topology and the PACSystems RX3i controller to achieve high availability in the I/O network, instantly improving normal working time.

If a single point of failure occurs, fast network recovery time
