Product Overview

The Bender GPM series is a hospital grade grounding and power integration module tailored for medical facilities, with the core goal of providing safe power supply and equipotential grounding solutions for portable medical devices. The product strictly follows the electrical standards of the medical industry, adopts high durability materials and safety design, and can flexibly adapt to different installation scenarios. It is widely used in hospitals, general diagnosis and treatment areas, intensive care units and other environments with extremely high electrical safety requirements. At the same time, it provides supporting grounding cables and sockets to form a complete medical electrical safety guarantee system.

Core configuration and specifications

（1） Module type and installation mode

Module type installation method adapted to the core characteristics of the bottom box/panel

GPM-F embedded 12 "× 8" × 4 "galvanized steel bottom box panel 14" × 10 ", extending 1" to cover the edge of the bottom box

GPM-S surface installation customized front trim panel+bottom box panel size consistent with the bottom box

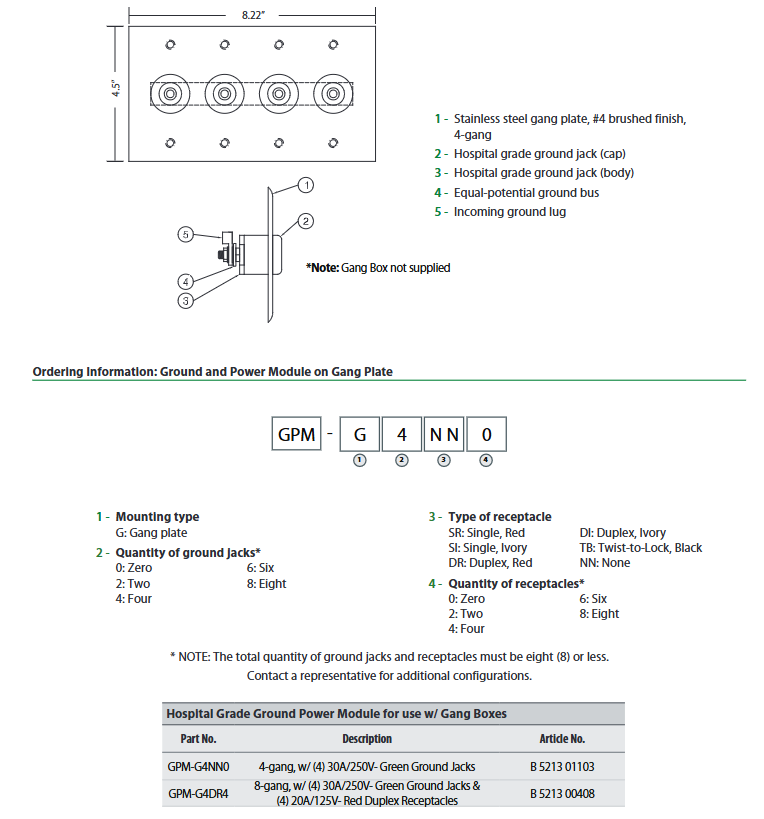

GPM-G type combination panel installation, 4-pin/8-pin standard electrical junction box, single pin can accommodate 1 socket or 1 grounding socket

（2） Core component specifications

power socket

Specification: 20A/125V, hospital level certified

Types: SR/SI, DR/DI, TB

Color: Red (DR/TB), Ivory White (DI/SI)

Grounding components

Grounding socket: 30A/250V, green, twist lock design

Grounding Bar: Copper, size 0.125in (3mm) x 0.75in (19mm), supports # 14-1/0 AWG wires

Connection points: At least 20, including 18 # 14- # 6 AWG terminal blocks and 1 # 12-1/0 AWG terminal block

Grounding cable (HGC series)

Length: 10 feet, 12 feet, 15 feet

Wire specification: # 10 AWG, green PVC insulation layer, high flexibility design

Terminal Type: Plug+Heavy duty Alligator Claw (Type C), Plug+# 10 Wire Clip (Type L)

Typical models and configurations

Model configuration description Product number

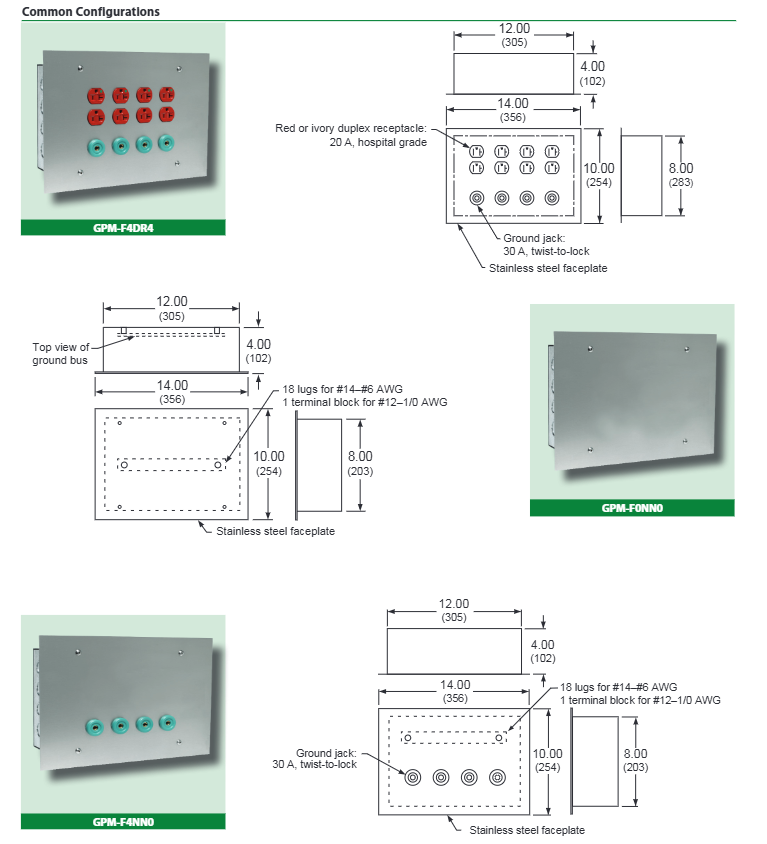

GPM-F4DR4 4 grounding sockets+4 red dual sockets (embedded) B521300405

GPM-F4NN0 4 grounding sockets (embedded, no socket) B521300349

GPM-F0NN0 grounding bar only (≥ 20 connection points, embedded) B521300400

GPM-G4NN0 4-panel panel+4 grounding sockets B521301103

GPM-G4DR4 8-panel+4 grounding sockets+4 red dual sockets B521300408

Bottom box B120804 12 "× 8" × 4 "embedded galvanized steel bottom box B521300367

Grounding cable HGC-10L 10 feet, plug+# 10 terminal B521300053

Grounding socket HGJ-1R 30A/250V green hospital grade grounding socket B521300010

Product features and advantages

Safety compliance: fully compliant with electrical standards in the medical industry, hospital level certification, ensuring the safety of patients and medical staff;

Flexible configuration: supports various combinations such as sockets, grounding sockets, and pure grounding bars to adapt to different medical scenarios;

Durable design: The 304 stainless steel panel is corrosion-resistant and easy to clean, while the galvanized steel bottom box is sturdy and durable, meeting the requirements of medical environments;

Equipotential protection: Integrated copper grounding bar to achieve equipotential connection of all equipment and reduce the risk of electric shock;

Complete package: Provide grounding cables of different lengths to meet the flexible grounding needs of portable devices.
