Basic information

Product Name: Fire Lite ®  The Alarm H365 series address coded heat detectors include models such as H365 (A), H365R (A), H365HT (A), etc.

Purpose: Designed specifically for Honeywell Fire Lite's address coded fire alarm control panel, used for fire detection and can directly replace the H355 series.

Product Features

System and Address Encoding

SLC circuit: It adopts a two-wire SLC circuit connection and is wired through the base.

Address coding: Supports device address coding, and sets the address of each detector by rotating the decimal address switch, making it easy to accurately locate the fire location. For specific device capacity, please refer to the Fire Lite panel manual.

Structure and Design

Compliant with UL 268 7th edition standard.

Adopting a fashionable, low profile modern design, equipped with advanced thermistor technology for fast response.

Integrated communication function and built-in device type recognition function, with tamper proof features, built-in function test switch, can be activated by external magnets.

Operational performance

Temperature setting:

The fixed temperature model (H365 (A)) is factory preset to 135 ° F (57 ° C).

The temperature rise rate model (H365R (A)) is 15 ° F (8.3 ° C) per minute.

The high temperature model (H365HT (A)) is factory preset at 190 ° F (88 ° C).

LED indicator: Two LED indicator lights, red flashing in normal state, red constantly on when in alarm, LED flashing every time it is voted, with a viewing angle of 360 °.

Mechanical and other characteristics

The sealed design can resist back pressure, and SEMS screws are used for wiring on independent bases, suitable for direct surface installation or electrical box installation. It can be inserted into independent bases for easy installation and maintenance, and allows for the exchange of photoelectric, ion, and thermal sensors.

Support panel remote testing function, walking test with address display, low standby current.

Option: Can be connected to the remote LED output connection of the optional RA100Z remote LED annunitor.

Installation instructions

Use a detachable base to simplify installation, service, and maintenance, and each detector comes with installation instructions.

The detector base (of all types) is installed on an electrical bottom box at least 1.5 inches (3.81 centimeters) deep, compatible with junction box reference DF-60059.

Due to the inherent monitoring provided by SLC circuits, there is no need for terminal resistors, and only Style 4 (Class "B") wiring allows for "T-shaped taps" or branches.

When using a relay or speaker base, refer to installation table I56-3626 in I300 (A) to understand the equipment limitations between the isolator module and the isolator base.

Application scenarios

For detailed information on detector spacing, layout, zoning, wiring, and special applications for property protection, please refer to I56-6525 "System Smoke Detector Application Manual".

Construction and Operation

Construction: Made of fire-resistant plastic that meets commercial standards and has a beautiful appearance.

Operation: Each H365 series detector uses an address on the Fire LiteJCI signal line circuit (SLC) panel (the total limit depends on the panel), responds to regular polling from the control panel and reports its type and status. When receiving a test command from the panel (or local magnet test), it activates its electronic device and reports an alarm. The LED flashes when polling and lights up when receiving a panel command.

Product line information

The suffix "- IV" indicates CLIP and LiteSpeed devices, while the suffix "A" indicates the Canadian version.

Including multiple models such as H365, H365A, H365-IV, H365A-IV, etc., suitable for different scenarios and standards.

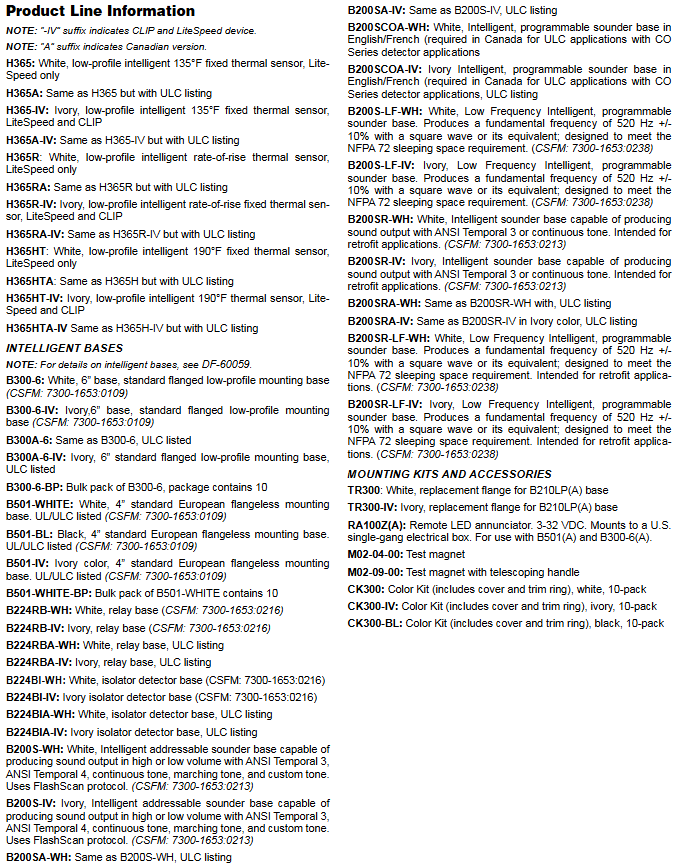

Intelligent base: There are multiple models, such as B300-6, B300-6-IV, B300A-6, etc. Different models have differences in color, size, function, and certification.

Installation kit and accessories: including TR300 series replacement flange, RA100Z (A) remote LED annunitor, test magnet, color kit, etc.

System specifications

Physical specifications

Size:

Detector height: 2.0 inches (5.3cm)

Base diameter:

B300-6 base: 6.1 inches (15.6cm)

B501 base: 4 inches (10.2cm)

Complete base list reference DF-60983

Shipping weight: 3.4 ounces (95g)

Environmental Specifications

Working temperature range:

H365, H365R series: -4 ° F to 100 ° F (-20 ° C to 38 ° C)

H365HT series: -4 ° F to 150 ° F (-20 ° C to 66 ° C)

Relative humidity: 10% -93%, non condensing

Detector spacing:

UL certification: maximum center to center distance of 50 feet (15.24m)

FM certification: 25 x 25 feet (7.62 x 7.62m)

Thermal performance specifications

Fixed temperature set point: 135 ° F (57 ° C) (H365 series)

Temperature rise rate detection: 15 ° F (8.3 ° C)/minute (H365R series)

High temperature set point: 190 ° F (88 ° C) (H365HT series)

Electrical specifications

Voltage range: 15-32VDC peak

Standby current (maximum average): 200 µ A @ 24VDC (communication every 5 seconds, LED enabled)

Maximum current: 4.5mA@24VDC (ON state)

Installation specifications

Installation method: Equipped with B300-6 (A) flange base (standard), other bases refer to "Product Line Information: Smart Base"

Compatible with bottom box: An electrical bottom box at least 1.5 inches (3.81cm) deep, compatible with junction box reference DF-60059

Certification and Standards

UL/ULC certification: S2517

FM certification: Passed

CSFM certification: 7272-0075:0501

Quality Management: Compliant with ISO 9001 standard
