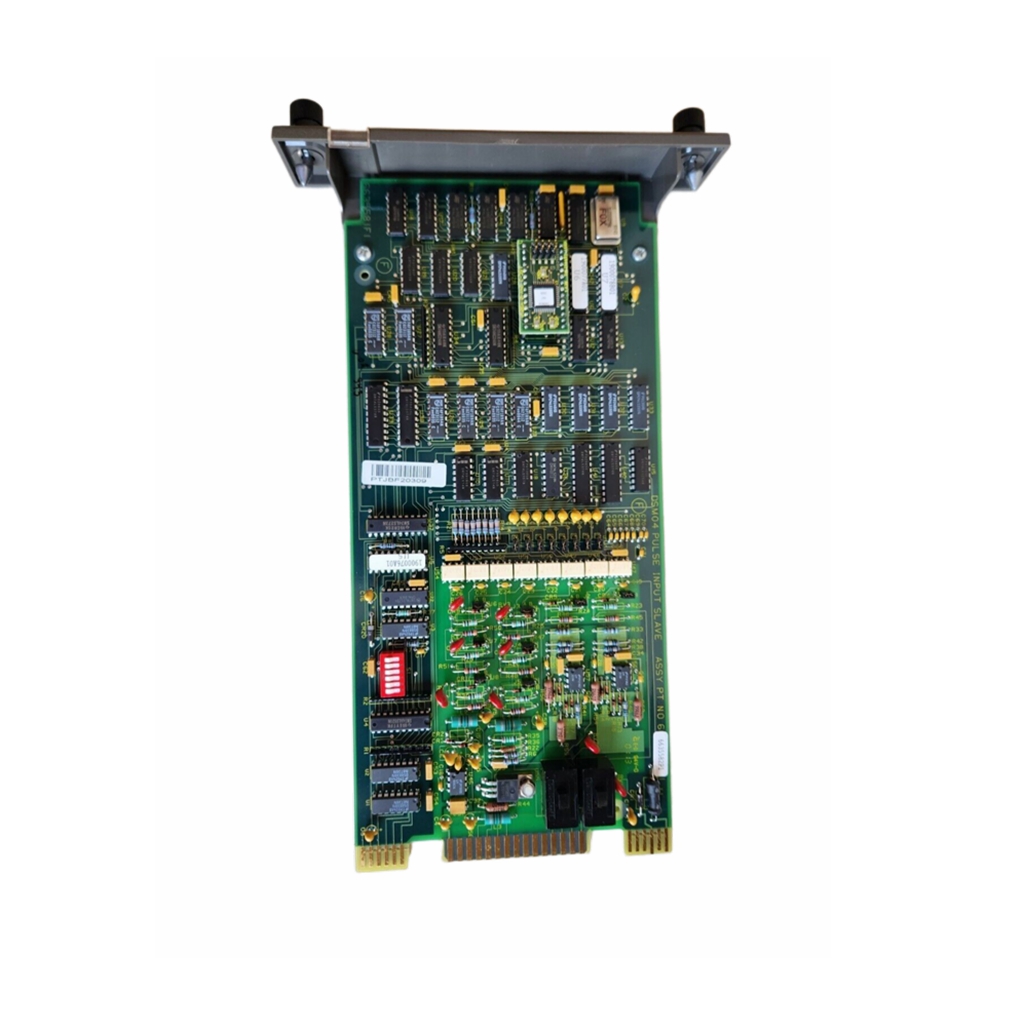

ABB INNIS01 infi90 output input module

ABB INNIS01 infi90 output input module

ACS 6000 for rolling mills

(3-27 MW (providing greater power according to demand), up to 3.3 kV)

ACS 6000 is the best solution for extremely demanding rolling mill equipment. since

After its launch in the market, the ACS 6000 won a good reputation for its high quality and reliability

The reputation. Therefore, ABB has the world's largest customer for the installation of medium voltage multi drive systems

One of the groups.

Modular design

ABB's ACS 6000 is a single motor and multi motor designed specifically for the metallurgical industry with the highest requirements

Modular frequency converter designed for equipment. This product offers five sizes of frequency converter molds

Blocks (3, 5, 7, 9, and 11 MVA). Combine modules with minimal design work

Together, it can achieve optimal configuration for specific devices.

Multiple multi drive motors can be connected to the ACS 6000 through a common DC bus, thereby only

A multi drive frequency converter can support the operation of multiple motors. Multi transmission common straight

The flow bus frequency converter can provide the most efficient solution. This can be done through direct current

The busbar enables energy flow between the frequency converters. A certain worker will be in braking mode

The regenerated energy of the sequence is directly used for another process through the DC bus without consumption

Electric power grid.

Regeneration and reactive power compensation

The ACS 6000 can be equipped with an active rectifier unit (ARU). ACS 6000 can be used for support

Operate in four quadrants with regenerative braking to reduce total energy consumption and operate throughout the entire operating range

Control the power factor to 1 within the enclosure - even at very low speeds. Alternatively, it is possible

Determine the corresponding specifications of ARU for other loads connected to the same power supply network

Compensate for the reactive power generated.

Friendly to the power supply network

For devices that require high power, ARU modules can be connected in parallel. This configuration

The transformer design can generate extremely low harmonics.

Simple and efficient maintenance

The design of ACS 6000 aims to facilitate access to the components of the frequency converter from the front end.

The ACS 6000 adopts easily replaceable phase modules in its design, allowing end users to

Modules can be quickly replaced within minutes.

Medium voltage frequency converters used for auxiliary equipment such as fans, pumps, and blast furnace blowers

ABB offers a range of medium voltage frequency converters that can be used to achieve fans, pumps, and blast furnace drums

Energy saving operation of auxiliary equipment such as fans.

ACS 1000 (315kW-5MW, up to 4.16kV)

ACS 5000 (2-32MW, up to 6.9kV)

The ACS 1000 medium voltage frequency converter product family is designed for auxiliary processes in the metallurgical industry

ACS 5000 can be applied to standard industrial motors with voltages up to 6.9kV (asynchronous and...)

An unparalleled solution. Due to the specially designed output sine wave filter,

Synchronized). This product is suitable for equipment such as blast furnace blowers, fans, and pumps.

Eliminating voltage reflection and common mode voltage, ACS1000 is suitable for standard electrical applications

Machine and renovation projects. The ACS 1000i is a fully integrated frequency converter, including input and output

MEGADRIVE-LCI (2-72MW, up to 10kV)

Enter the transformer and input contactor.

ABB's MEGADRIVE LCI frequency converter is the most suitable for high voltage and high-power equipment

Excellent solution. The standard design can provide a rated power of up to 72MW; Engineering Design

ACS 2000(250-2600kW，4.0-6.9kV)

It can exceed 100 MW. This type of frequency converter is mainly used for blast furnace blowers and induced draft fans/

ACS 2000 is suitable for updated and renovated equipment with a maximum voltage of 6.9 kV and new standards

Soft starter or frequency converter for blower and single machine wire rolling mill.

Quasi induction motor. This frequency converter does not require an input isolation transformer, allowing for

Directly connected to the power supply line (directly connected to the grid), can be equipped with an integrated transformer,

Or connect to an external input isolation transformer. Universal frequency converters can achieve control over fans and

Simple and reliable motor control for pumps and other equipment.
