GE IS230 Series Industrial Managed Layer 2 Switches

From: | Author:Wang | Time :2025-09-02 | 616 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:
GE IS230 Series Industrial Managed Layer 2 Switches
Overview
The Allied Telesis IS230 Series is a  multipurpose product line of managed Layer 2 switches ideal for industrial applications, including manufacturing, rail transportation (telecommunication and signaling), road transportation (traffic control), and Smart Cities.
With fanless operation and a wide operating temperature range of -40° to 75°C, the robust IS230 Series easily tolerates harsh and demanding environments, such as those found in industrial and outdoor deployments.
An integrated voltage regulator ensures the PoE output voltage always stays at the rated value, regardless of any fluctuations in the input voltage of powered devices. An extended input voltage range makes the IS230 Series ideal for deployment in traffic control cabinets.

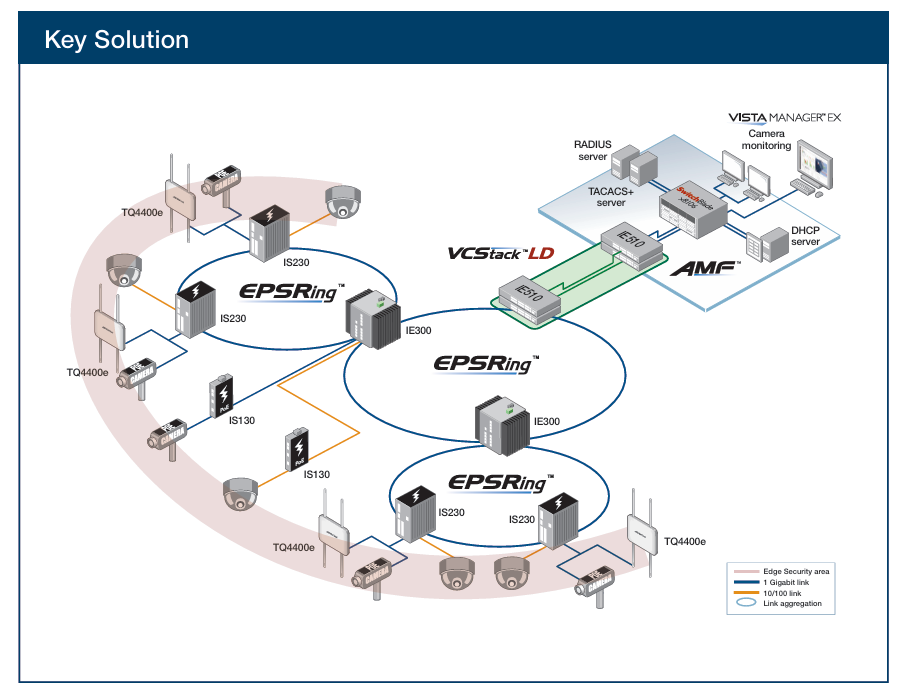

Network resiliency

The IS230 Series supports highly stable and reliable ICT network switching, with recovery times down to 50ms. The IS230 can be customized with the most appropriate mechanism and protocol to prevent network connection failure.
Choices include Allied Telesis Ethernet
Protection Switched Ring (EPSRing™), and the standards-based ITU-T G.8032.
Securing the Network Edge
Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers network guests Internet access, while ensuring the integrity of private network data.


Quality of Service

Comprehensive wire-speed QoS provides flow-based traffic management with Port/Tag Base and Type of Service prioritization. Bandwidth control limits ingress/
egress traffic and broadcast/multicast/flooded unicast packets.
Gigabit and Fast Ethernet support
The IS230 Series offers combo ports supporting both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). Support for both SFP types allows organizations to stay within budget even as they migrate to faster technologies.
Configurable power budget
On PoE-sourcing IS230 switches, all LAN ports source POE+ up to 30W.
You can configure both the overall power budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU)1.


Dual power inputs

The IS230 Series provides redundant power inputs for higher system reliability; the power inputs are protected against reverse polarity and over-current.
ECO friendly
The IS230 Series are Energy Efficient Ethernet (EEE) devices. They facilitate power saving by switching off parts of the LAN that are not transmitting or recieving data. This sophisticated feature can significantly reduce operating costs, by reducing the

power requirements of the switch and any associated cooling equipment.

Key Features

Full Gigabit, wire speed ports
Uplink combo ports
100/1000Mbps SFP support
Flexible management interface (GUI, SNMP, CLI, TELNET and SSH)
Ethernet Protection Switched Ring (EPSRing™)
Ethernet Ring Protection Switching (ITU-T G.8032)
VLAN stacking (Q-in-Q)
Multicast support (IGMP and MLD snooping)
Loopback detection and storm control
Port mirroring
Port trunking/link aggregation (LACP)
Link Layer Discovery (LLDP)
IEEE 802.3at PoE+ sourcing (30W)
-40 to +75oC wide-range operating temperature
Dual power inputs with voltage boost converter
Alarm output
Fanless design


Performance
Up to 8K MAC addresses
Packet buffer memory: 512KB (4Mb)
8 priority QoS queues
4094 configurable VLANs
256 simultaneous VLANs
Supports 9KB jumbo frames
Up to 255 Layer 2 multicast entries


Environmental Specifications
Operating temperature range: -40°C to 75°C (-40°F to 167°F)
Storage temperature range: -40°C to 85°C (-40°F to 185°F)
Operating humidity range:
10% to 95%RH non-condensing
Storage humidity range:
10% to 95%RH non-condensing
Operating altitude
3,000m maximum (9,843ft)

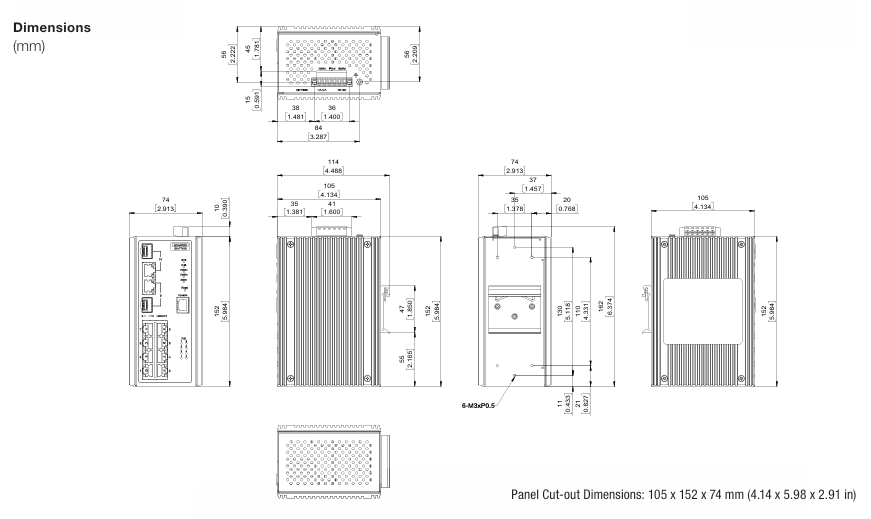

Mechanical
EN 50022, EN 60715 Standardized mounting
on rails

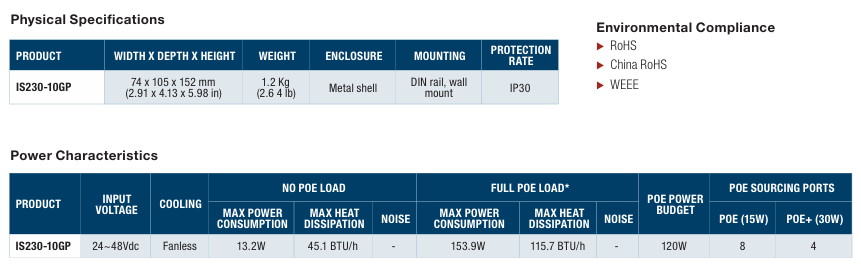

Environmental Compliance
RoHS
China RoHS
WEEE

Ordering Information
Switches
The DIN rail and wall mount kits are included.
AT-IS230-10GP-80
8x 10/100/1000T, 2x 100/1000X SFP combo, Industrial Layer 2 Switch, POE+ support (120W)
Supported SFP Modules
Refer to the installation guide for the recommended Max.
Operating Temperature according to the selected SFP module.
1000Mbps SFP Modules
AT-SPBD10-13
10 km, 1G BiDi SFP, LC, SMF (1310Tx/1490Rx)
AT-SPBD10-14
10 km, 1G BiDi SFP, LC, SMF (1490Tx/1310Rx)
AT-SPBD20-13/I
20 km, 1G BiDi SFP, SC, SMF, I-Temp
(1310Tx/1490Rx)
AT-SPBD20-14/I
20 km, 1G BiDi SFP, SC, SMF, I-Temp
(1490Tx/1310Rx)
AT-SPBD40-13/I
40 km, 1G BiDi SFP, LC, SMF, I-Temp
(1310Tx/1490Rx)
AT-SPBD40-14/I
40 km, 1G BiDi SFP, LC, SMF, I-Temp
(1490Tx/1310Rx)
AT-SPEX
2 km, 1000EX SFP, LC, MMF, 1310 nm
AT-SPLX10
10 km, 1000LX SFP, LC, SMF, 1310 nm
AT-SPLX10/I
10 km, 1000LX SFP, LC, SMF, 1310 nm, I-Temp
AT-SPLX40
40 km, 1000LX SFP, LC, SMF, 1310 nm
AT-SPSX
550 m, 1000SX SFP, LC, MMF, 850 nm
AT-SPSX/I
550 m, 1000SX SFP, LC, MMF, 850 nm, I-Temp
AT-SPZX80
80 km, 1000ZX SFP, LC, SMF, 1550 nm
100Mbps SFP Modules
AT-SPFX/2
2 km, 100FX SFP, LC, MMF, 1310 nm
AT-SPFX/15
15 km, 100FX SFP, LC, SMF, 1310 nm
AT-SPFXBD-LC-13
15 km, 100FX BiDi SFP, LC, SMF
(1310 Tx/1550 Rx)
AT-SPFXBD-LC-15
15 km, 100FX BiDi SFP, LC, SMF
(1550 Rx/1310 Tx)
