ABB KPM Sheet Break Detector - KB2

From: | Author:Wang | Time :2025-07-11 | 6 visit: | Share:

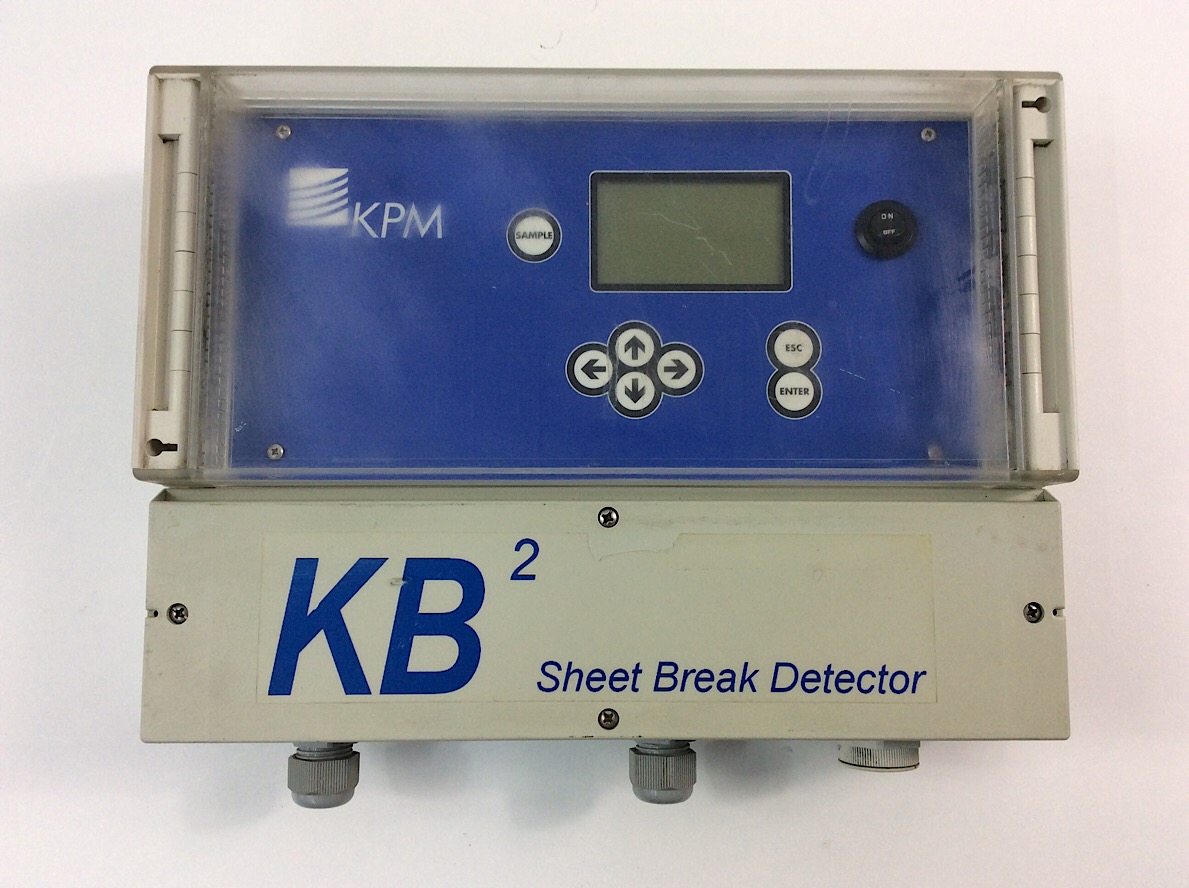

ABB KPM Sheet Break Detector - KB2

Product overview

KPM KB2 is a non-contact paper breakage detector launched by ABB, with hundreds of installation cases worldwide, recognized as an excellent paper breakage detection device in the market. It can be installed above or below the paper web, suitable for environments with high dust, steam, high temperature, and limited space. It keeps the sensor head clean through air blowing and can reliably monitor paper breakage in harsh environments.


Core functions and features

Flexible detection light source: equipped with RGB or infrared light sources, it can perform well in various paper and cardboard products and applications regardless of the color of the paper and cardboard. RGB color measurement can handle all paper, mesh, and woolen colors, ensuring reliable fracture detection. In addition to open traction applications, it can also detect fractures in woolen, mesh, and even drum backgrounds.

Fast fracture detection: Using digital signal processing technology, thousands of measurements are taken of all signals per second, and the backlight intensity is measured to resist the influence of environmental light changes. The minimum delay for fracture detection is only 15ms, and users can select the number of measurement cycles for fracture alarm through digital filtering.

Convenient setup and operation: Equipped with a large display screen and a logical user interface, the fracture detection setup can be easily completed by selecting the measurement value with the largest signal difference. The fracture and maintenance alarm can be connected to PLC or DCS, and color measurement PC software can also be selected for monitoring, including data collection function.

Adapt to harsh environments: It can maintain high reliability even in high humidity environments. When the sensor head is exposed to high temperatures, the electronic unit can be installed outside the machine cover through fiber optic cables.


Specification parameters

Environmental temperature sensor head and fiber optic cable: -10-180 º C (15-356 º F); Electronic unit: -10-60 º C (15-140 º F)

Fiber optic cable KPM KB2/6:6m (20ft); KPM KB2/9:9m(30ft); KPM KB2/12:12m(40ft)

Fiber optic cable conduit requires a flexible airtight conduit with an inner diameter of at least 19mm (3/4 "), which can be optionally selected

19mm (three-quarters ") BSP conduit connection

Install the sensor 5-30cm (2-12 ") away from the paper web

LED pulse frequency 1kHz

Power supply 90-264VAC, 50/60Hz or 24VDC

Power consumption 15W

Shell protection level IP 66 (Nema 4x)

Blow air connection dry instrument air, 6-4mm (¼ ") connector, normal consumption 80l/min (21gpm)

Digital output with 2 normally open or normally closed contacts, maximum 250VAC, 2A; 220VDC、2A, Used for breaking signals and maintenance alarms

Alarm output delay: minimum 15ms after actual fracture

Analog output (optional) 3 4-20mA, maximum 600 Ω (ohms), isolated

Dimensions (length x height x width) and weight: Electronic unit: 323 x 237 x 70mm (12.7 x 9.3 x 2.8 "), 3kg (6.6lbs); Sensor head: diameter 33mm (1 1/4 "), stainless steel 316, tube length 1500mm (59"), 4kg (9lbs)


Application scenarios

Mainly used in the pulp and paper industry, it is used to monitor the breakage of paper sheets during the production process of paper and cardboard. It can be installed in different positions of the paper machine, such as the mesh section, press section, drying section, etc., to detect paper sheet breakage in a timely manner and issue alarm signals, so that operators can quickly take measures to reduce production losses caused by paper sheet breakage, improve production efficiency and product quality.


Brand background

This product is produced by ABB, a leading global electrical and automation enterprise with operations in multiple countries and regions around the world. ABB has deep technological accumulation and extensive influence in the fields of power, industry, transportation, and infrastructure. It has always been committed to technological innovation and provides advanced solutions for various industries. KPM KB2 paper breakage detector is one of ABB's important products in the automation solutions of pulp and paper industry, reflecting ABB's technical strength in this field and deep understanding of industry needs.
