Product Overview

DANAHER MOTION MB1256DN01-6Y/MB1256DN016Y is a core product carefully crafted by Danaher in the field of motion control. It plays a key role in many fields such as industrial automation and precision equipment drive, relying on advanced manufacturing processes and cutting-edge technologies. As a newly launched product, it provides solid guarantees for the efficient operation of various equipment with stable and reliable performance and precise control capabilities, meeting the strict requirements of modern industry for high-precision and high stability equipment components.

Core functions

（1） Accurate power transmission

MB1256DN01-6Y/MB1256DN016Y can accurately convert input electrical energy into power output that meets the operational requirements of the equipment. On automated production lines, equipment such as robotic arms and conveyor belts can be precisely driven to complete high-precision actions according to preset programs, ensuring the accuracy and consistency of the production process and effectively improving the production quality and efficiency of products.

（2） Stable operation guarantee

The product adopts high-quality core components and optimized internal structural design, with excellent stability. During long-term continuous operation, it can effectively resist external interference and environmental factors, maintain stable working conditions, reduce downtime caused by equipment failures, lower production and maintenance costs for enterprises, and provide reliable guarantees for the continuous production of enterprises.

Company and Brand Overview

Danaher Motion is a leading supplier of mechanical and electromechanical product solutions, with multiple well-known brands such as THOMSON (industrial, precision, and rodless actuators, linear slide tables, etc.), MICRON (gearboxes), HAROWE (rotary transformers), DELTRAN (electromagnetic friction and coil spring clutches and brakes), Superior Electric (stepper and servo motors and controllers), SECO (AC/DC variable speed drives), etc. The company is committed to continuously improving operational efficiency through Danaher Business System (DBS), providing flexible, precise, efficient, and reliable products and solutions for multiple industries such as semiconductor, packaging, robotics, industrial automation, and healthcare.

Main product types and characteristics

（1） DC Controls

D2403 controller

Application scenario: Suitable for positioning applications that require simple linear telescopic motion and variable speed control. It can linearly move contours by inputting activation commands and has simple interfaces with external devices such as PLCs and I/O cards.

Core parameters

Power requirements: 105-125 VAC or 208-245 VAC, 50/60 Hz, maximum current of 2 A and 1 A respectively.

Motor output: 0-28 VDC, maximum 10 A (adjustable current trip 0-10 A), motor rated continuous 4.5 A, peak 10 A.

Input/output: 6 optocoupler inputs, 4 open collector outputs, support DIP switch programming.

Speed range: 15:1 variable speed range, PWM frequency 2000 Hz.

Functional features: It has an adjustable delay function of 0-20 seconds, configurable delay start conditions, and supports remote speed potentiometer options (MOD300).

D2502B controller

Application scenario: As an analog position controller, it accepts analog voltage or current command inputs and works with an electric cylinder containing a linear potentiometer (- L option) to form a closed-loop linear positioning system.

Core parameters

（1）Power requirements: Same as D2403.

Motor output: 0-28 VDC, maximum 5 A (adjustable clamp 0-5 A).

Input and output: Supports three remote analog command signals: 0-5 VDC, 0-10 VDC, and 4-20 mA, with stop and disable inputs, as well as stall output.

Adjustment function: Ten potentiometers are used to optimize system response, including current sensing, speed setting, travel limit, etc.

（2） Servo Controls

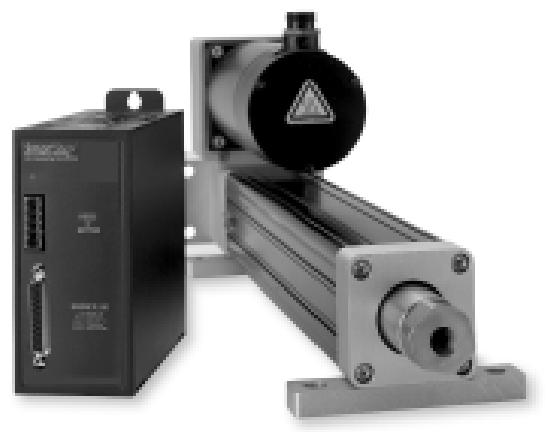

B8961/B8962 Brushless Servo Intelligent Drive

Application scenarios: Suitable for TN-B and TC2,3,4,5-B precision linear actuators, rodless linear actuators, and linear slide tables/systems, supporting simultaneous control of position, speed, and force/torque, suitable for applications such as clamping, pressing, drilling, and automatic fastening.

Core parameters

Power input: 90-240 VAC single-phase, 50/60 Hz, B8961 maximum 1150 VA (115 VAC), B8962 power doubled.

Motor output: 5 A continuous, 10 A peak, supports differential orthogonal incremental encoder input (maximum 2 MHz).

Storage and programming: 6K memory (optional 30K), supporting 199 (optional 400) user programs, with functions such as user scaling, mathematics, and conditional branching.

I/O configuration: Supports OPTO-22 (G4) digital module and Grayhill (G5) analog and temperature module, with 8 bidirectional optically isolated I/O positions.

Functional features: Supports multi axis immediate control, linear interpolation, registration functions, built-in operator interface and diagnostic output, and provides application development software.

（3） Stepper Controls

SmartStep stepper driver/controller

Application scenarios: Suitable for TN-S/P and TC2,3,4,5-S/P precision linear actuators, rodless linear actuators, and linear sliding tables/systems, with high dynamic performance and anti resonance technology.

Core parameters

Power input: SmartStep is 90-120 VAC, SmartStep-240 is 100-240 VAC, both at 50/60 Hz, with a maximum of 500 VA.

Motor current: SmartStep0-7.9 A, SmartStep-240 0-3.9 A, incremental adjustment of 0.1 A.

System resolution: 36000 steps per motor rotation, supporting 2-phase hybrid permanent magnet stepper motors (0.9 °, 1.8 °, or 7.2 ° full step).

Protection function: equipped with short circuit, under voltage, over temperature, interlock, and regeneration/overvoltage protection.

Functional features: Supports encoder feedback to achieve stall detection and closed-loop operation, with Go Immediate Mode, can configure all system settings through software, provides RS-232 (optional RS-485) communication, compatible with application development software, equipped with 16 configurable I/O (8 inputs/8 outputs).

Optional accessories and modules

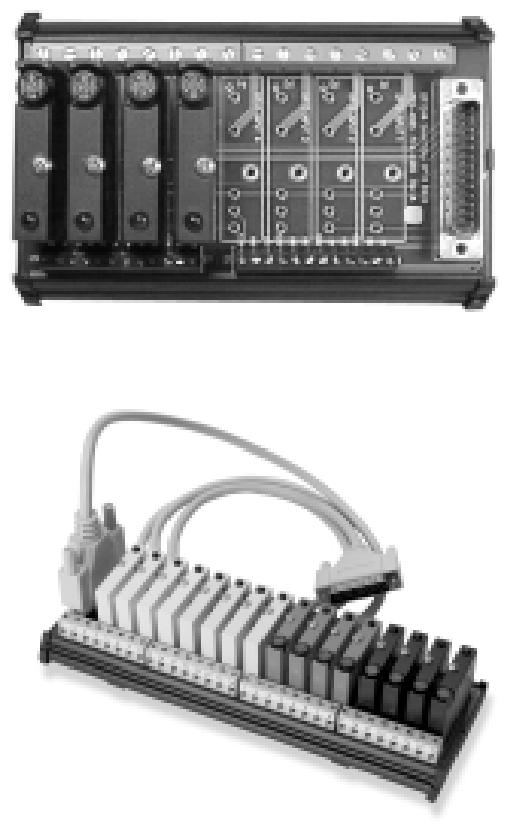

OPTO44/OPTO88 board: Supports up to 8/16 OPTO modules respectively, used for switching high voltage or current, parallel all I/O points to the second set of screw terminals.

**Breakout boards and cables: such as DB25BO (converting DB25 I/O connectors into screw terminals), SS-IO/SS-IO-6 (I/O cables), SS-RS232 (serial cables), etc.

Keyboard and Panel: FP220 is a programming and operator interface that supports menu driven settings, diagnostic, and tracking modes, with a protection level of NEMA 4 (IP65).

EMC compatibility kit: such as EMC-B8-1/B8-2 (for B8961/B8962), EMC-S6-1 (for SmartStep).

Product Selection

Example of Model Naming

D2403: 24V DC control, used for TN-D and TC2D.

B8961-30K: Single axis servo drive with 30K memory expansion.

SmartStep-240-RS485: 240V stepper controller with RS485 communication interface

Technical and Environmental Specifications

temperature range

Operating temperature: Most controllers range from 0 ° C to 50 ° C (32 ° F to 122 ° F), and SmartStep has a maximum ambient temperature of 50 ° C at a current setting of 6 A.

Storage temperature: -40 ° C to 85 ° C (-40 ° F to 185 ° F).

Humidity: 0% to 90% non condensing.

Protection level: Some accessories, such as FP220 panels, achieve NEMA 4 (IP65) when installed.
