MC-PHAI01 (model code 51403479-150) is an 8-channel analog input module under Emerson's Process Automation series. Its core is used in industrial process control systems (such as DCS distributed control systems) to collect, regulate, and transmit on-site analog signals (such as temperature, pressure, flow, and other continuous parameters), providing accurate real-time data input for the system and adapting to industrial scenarios such as petrochemicals, power, and intelligent manufacturing that require high signal acquisition accuracy and stability.

Key technical specifications

1. Input signal and channel configuration

Number of channels: 8 independent analog input channels, supporting inter channel isolation (presumably industrial grade optoelectronic isolation to enhance anti-interference capability)

Signal type adaptation - voltage signal: standard range such as ± 5V, ± 10V (adapted to sensor output voltage signal)

-Current signal: 4~20mA (universal for two-wire/three wire transmitters, industrial mainstream signal type)

-Thermocouple signal: supports common types such as J, K, T, E, R, S, B, etc. (suitable for temperature measurement scenarios)

-RTD signals: Pt100, Cu100, etc. (high-precision temperature acquisition, such as industrial equipment temperature control)

Input impedance voltage signal input: ≥ 100 k Ω; current signal input: ≤ 25 Ω (meets transmitter load requirements)

Acquisition accuracy: Full scale (FS) error ± 0.1% (typical value, 25 ℃ environment), ± 0.2% (maximum value, within working temperature range), supports software calibration compensation

2. Signal conditioning and output

Filtering function: Integrated digital low-pass filter, the filtering frequency can be configured through system software (such as 1Hz, 5Hz, 10Hz) to suppress high-frequency interference in industrial sites (such as noise generated by motor start stop and power grid fluctuations);

Data output interface: Supports high-speed communication with DCS main controller, with communication protocol speculated to be Emerson exclusive industrial bus (such as DeltaV system bus), data update rate ≤ 100ms (single channel), meeting real-time control requirements;

Status indication: The module panel is equipped with 8 channel status LED lights (green: normal acquisition; red: signal fault/over limit; yellow: channel not activated) for easy on-site troubleshooting.

3. Physical and environmental parameters

Range of environmental parameter specifications

Working temperature: 0 ℃~+60 ℃ (normal working environment in industrial control cabinets, some configurations support wide temperature versions of -20 ℃~+70 ℃)

Storage temperature -40 ℃~+85 ℃ (meets the requirements of transportation and inventory low/high temperature environments)

Relative humidity 5%~95% RH (non condensing, suitable for high humidity industrial scenarios such as food processing and chemical workshops)

Protection level module body IP20 (suitable for installation inside the control cabinet, anti dust intrusion, needs to cooperate with the overall protection of the cabinet)

Electromagnetic compatibility (EMC) complies with EN 61000-6-2 (industrial environment immunity) and EN 61000-6-4 (industrial environment radiation emission) standards, with strong resistance to electromagnetic interference

Size and installation standard DIN rail installation, dimensions (height x width x depth) approximately 120mm x 80mm x 150mm (suitable for compact control cabinet layout), weight approximately 0.5kg

4. Power requirements

Power supply voltage: DC 24V (± 10% fluctuation range, industrial standard power supply), supports reverse connection protection (to avoid module damage caused by wiring errors);

Power consumption: Typical value is 5W (when operating at full channel), maximum value is 8W (including power consumption of channel isolation circuit).

Core functions and security features

1. Fault diagnosis and protection

Channel level fault detection: It can monitor channel signal open circuit, short circuit, and over limit (above full range/below zero range) in real time. The fault information is uploaded to the system controller through the communication bus and triggers the panel LED alarm;

Module level protection: equipped with overvoltage protection (maximum power supply withstand 36V DC) and overcurrent protection (maximum single channel input current ≤ 30mA) to prevent module damage from abnormal signals on site;

Thermal protection: Equipped with a temperature sensor, it automatically enters a derating mode (reducing the acquisition frequency) when the module temperature exceeds+70 ℃. When it exceeds+80 ℃, it cuts off some non critical channels to ensure the normal operation of the core channels.

2. Configuration and compatibility

Software configuration: Supports channel parameter configuration (signal type, range, filtering frequency, alarm threshold) through Emerson Process Management system software (such as DeltaV Configuration Studio), without the need for hardware jumpers, providing flexible configuration;

System compatibility: Compatible with Emerson DeltaV DCS system and other mainstream industrial control systems (requiring adaptation modules or gateways), supports redundant communication (some versions), and enhances system reliability;

Firmware Upgrade: Supports online firmware upgrade (OTA) through the system bus, without the need to disassemble modules, making it easy to expand functionality and fix bugs in the future.

Certification and Compliance

Specific standards for certification categories

International Safety Certification - UL 61010-1 (American Safety Standard for Industrial Control Equipment)

-CE certification (EU Safety and EMC Directive, compliant with EN 61010-1 and EN 61326-1 standards)

-CSA C22.2 No. 61010-1 (Canadian Safety Standard)

Environmental compliance complies with the EU RoHS 2.0 directive (restricting the use of hazardous substances such as lead, mercury, cadmium, etc.), meeting global environmental requirements

The industry-specific certification section is equipped with ATEX/IECEx certification (applicable to hazardous areas such as chemical explosion-proof workshops, subject to specific order configurations)

Ordering and Supporting Information

1. Model code description

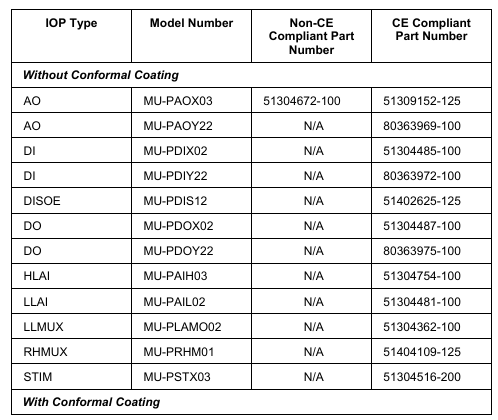

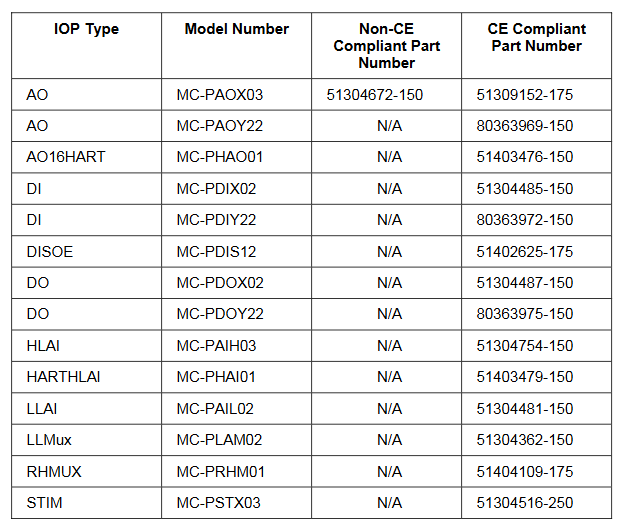

In MC-PHAI01 51403479-150:

MC-PHAI01: Basic module model, representing an 8-channel analog input module;

51403479-150: Emerson internal material code, distinguishing different configurations (such as whether they have isolation and whether they support explosion-proof certification).

2. Supporting components

Wiring terminals: Emerson specific spring type wiring terminals (such as model XXX, not specified in the document, please refer to the system parts list) are required to support quick wiring and anti loosening;

Calibration tool: It is recommended to use Emerson standard signal generators (such as MC-CAL01) for module accuracy calibration to ensure the accuracy of collected data;

Installation accessories: DIN rail buckle, module fixing screw (standard with module), compatible with standard 35mm DIN rail.
