TEKTRONIX MSO5000 and DPO5000 series mixed signal oscilloscope

TEKTRONIX MSO5000 and DPO5000 series mixed signal oscilloscope

The Tektronix MSO5000 and DPO5000 series mixed signal oscilloscopes are high-performance testing instruments that cover a bandwidth of 350MHz-2GHz, with a maximum real-time sampling rate of 10GS/s for single/dual channels and 5GS/s for four channels. They come standard with a 12.5M sampling point recording length (optional extension to 250M), and the MSO series provides an additional 16 digital channels. The core advantages include a waveform capture rate of>250000 wfms/s Wave Inspector ®  Waveform inspection, 53 automatic measurements, FFT analysis and other functions, support I ² C/SPI/USB serial trigger decoding (optional), equipped with a 10.4-inch touch screen and rich interfaces (USB, LAN, GPIB), lightweight body (≤ 6.7kg), suitable for complex circuit design verification, mixed signal error correction, serial bus analysis and other professional scenarios.

1、 Product basic information

Product series: divided into two sub series, with the core difference being channel configuration

DPO5000 series: 4 analog channels, digital fluorescence oscilloscope

MSO5000 series: 4 analog channels+16 digital channels, mixed signal oscilloscope

Model specifications: Divided into 4 core models according to bandwidth, with unified parameters as shown in the table below

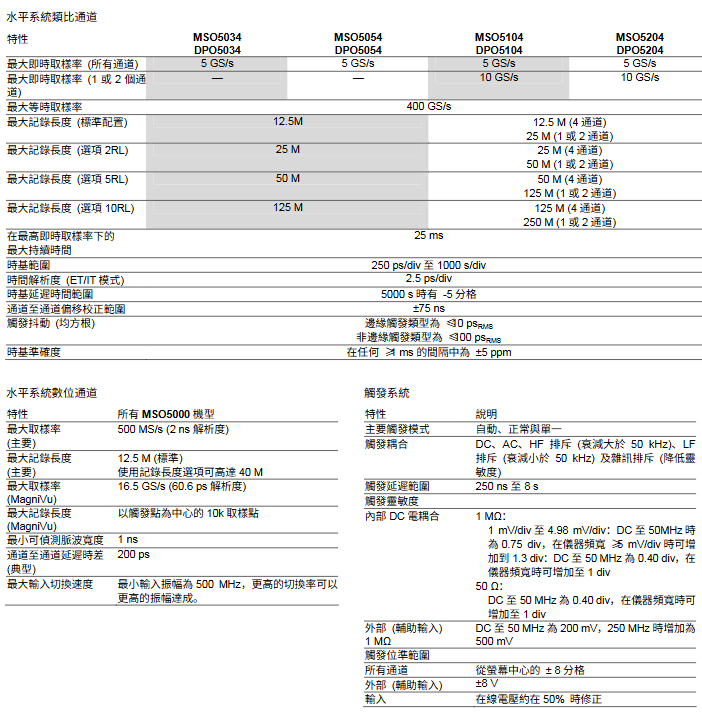

Model Bandwidth Single/Dual Pass Sampling Rate Four Channel Sampling Rate Standard Record Length

MSO5034/DPO5034 350MHz 10GS/s 5GS/s 12.5M

MSO5054/DPO5054 500MHz 10GS/s 5GS/s 12.5M

MSO5104/DPO5104 1GHz 10GS/s 5GS/s 12.5M

MSO5204/DPO5204 2GHz 10GS/s 5GS/s 12.5M

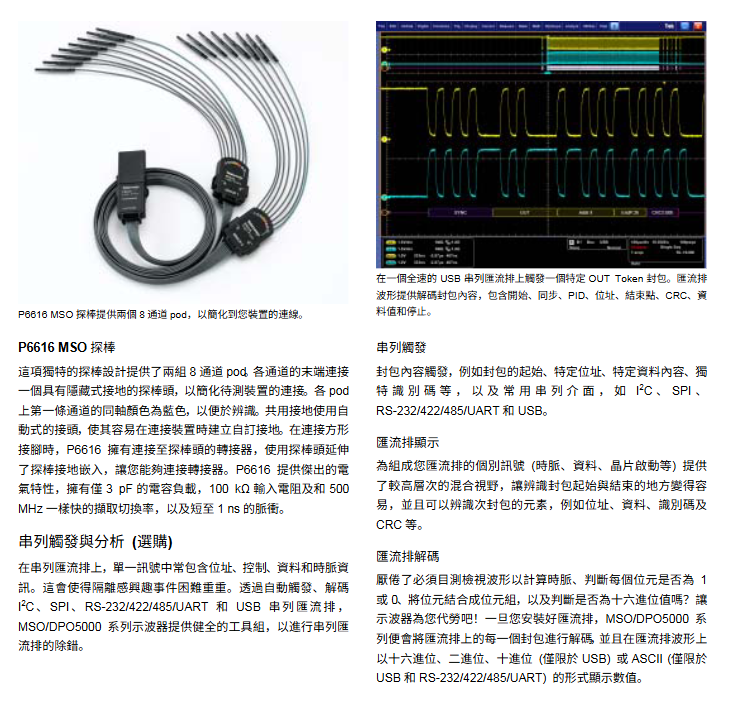

Standard configuration: Each unit includes passive voltage probes (4 DPO series, additional P6616 16 channel logic probes for MSO series), touch screen, mouse, calibration certificate, power cord, 1-year warranty, and pre installed NI LabVIEW SignalExpress Tektronix software

2、 Core performance parameters

Sampling and recording capability

Real time sampling rate: up to 10GS/s for single or dual channels, up to 5GS/s for four channel synchronization

Isochronous sampling rate: up to 400GS/s

Record length: Standard 12.5M sampling points, optional extensions (2RL=25M, 5RL=50M, 10RL=125M/250M, depending on the model)

Capture rate:>250000 wfms/s in FastAcq mode,>310000 frames/s in FastFrame mode

Trigger and capture characteristics

Trigger types: covering 16 trigger modes such as edge, burst, short wave, pulse width, timeout, transition, code type, serial packet, etc

Trigger jitter: Edge trigger ≤ 10psRMS, non edge trigger ≤ 100psRMS

Capture mode: supports sampling, peak detection (100ps/200ps narrow pulse), averaging, encapsulation, high resolution, FastAcq, etc

Channel performance

Analog channel: Input coupled AC/DC, input impedance 1M Ω± 1% or 50 Ω± 1%, maximum input voltage 300VRMS (1M Ω)/5VRMS (50 Ω)

Digital channel (MSO series): 16 sets of inputs, critical values support TTL/ECL/custom (± 40V), input impedance 100k Ω, probe load 3pF, MagniVu mode sampling rate 16.5GS/s (60.6ps resolution)

3、 Core functions and software tools

Basic analysis function

Automatic measurement: 53 built-in measurements, including cycle, frequency, rise/fall time, peak to peak, average value, etc., supporting simultaneous display of 8 items

Waveform processing: supports addition/subtraction/multiplication/division, integration/differentiation, FFT analysis (including multiple window functions), waveform histogram, Boolean logic comparison

Inspection tool: Wave Inspector ®  Function, including double-layer knob zoom/framing, automatic search (supporting 8 events), user tagging, allowing for quick browsing of long recorded waveforms

Optional software suite (core category)

Software Options Function Description Applicable Scenarios

SR-EMBD I ² C/SPI/RS-232/422/485/UART serial triggering and decoding embedded system debugging

SR-USB USB 2.0 (low-speed/full speed/high-speed) triggering, decoding, and compatibility testing USB device verification

VNM CAN/LIN serial protocol decoding and timing measurement in vehicle network testing

PWR power quality, switching loss, harmonics, safe working area (SOA) analysis, power supply design verification

DDRA DDR1/DDR2/LP-DDR1/LP-DDR2 memory bus analysis memory debugging

DJA jitter and eye image analysis, including Rj/DJ separation and mask testing for high-speed signal quality verification

LT/MTM extreme testing (compared with standard waveforms), mask testing (compliant with industry standards), production line testing/specification verification

4、 Hardware and interface configuration

Display and operation: 10.4-inch XGA touch screen (1024 × 768 pixels), supporting waveform styles such as vector/dot/cumulative, multi-color color palette

interface type

USB interface: 2 USB 2.0 ports on the front panel, 4 USB 2.0 ports on the back panel (supporting storage/printing), and 1 USB 1.1 device port (GPIB adapter)

Network interface: 10/100/1000BASE-T Ethernet port (LXI Class C compatible)

Other interfaces: video output (DB-15), PS/2 keyboard/mouse port, auxiliary input/output, external reference input (10MHz)

Body specifications: Thickness 8.12 inches (20.6cm), net weight 14.9 pounds (≤ 6.7kg), supports rack installation (5U height)

Power and Environment: Input voltage 100-240V ± 10%, frequency 45-440Hz, maximum power consumption of 275W; operating temperature 5 ° C-50 ° C, relative humidity 8% -90% (no condensation)

5、 Ordering and Service Options

Core optional configuration

Record length extension: 2RL (25M), 5RL (50M), 10RL (125M/250M)

Power plug: compatible with 12 regional standards including North America, EU, China, UK, etc

User Manual: Supports 9 languages including English, Simplified Chinese, Traditional Chinese, Japanese, etc

Service options: Optional 3/5-year verification service, 3/5-year maintenance service, verification data report

Recommended accessories: TekVPI series probe (passive/active/differential/current type), GPIB to USB adapter, rack mounting kit, oscilloscope cart, test fixture (USB/Ethernet)
