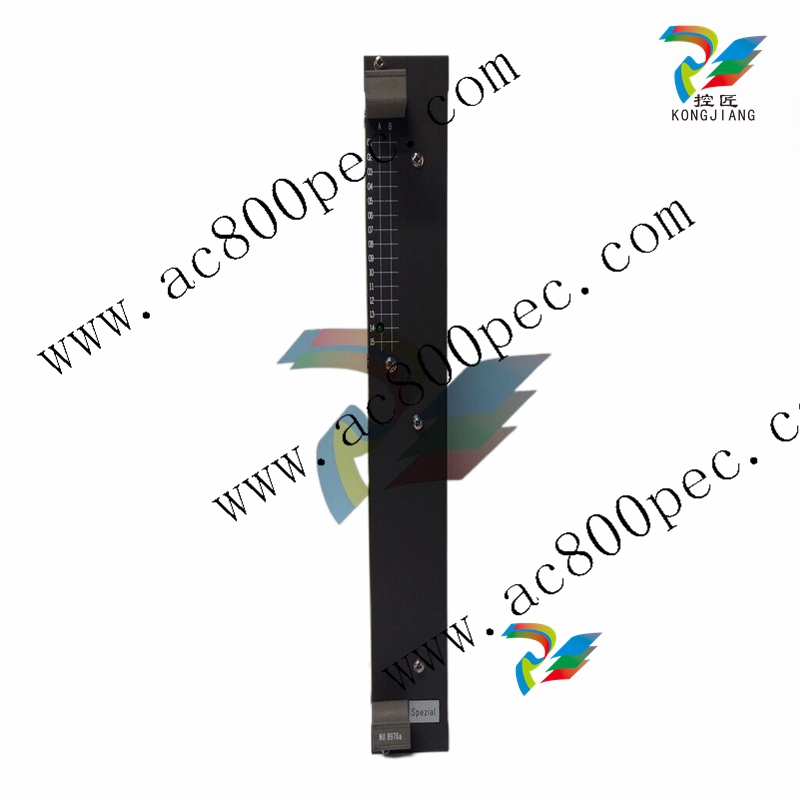

ABB NU8976A HIEE320693R0001 function board

From: | Author:Wang | Time :2024-12-10 | 114 visit: | Share:

CMU modules available:

• Serial Line Interface board 560SLI02

• Ethernet Adapter board 560ETH03

• Communication Unit 560CMU04

• Communication Unit 560CMU80

Each CPU communication board has an additional

serial interface for MMI to a PC. The MMI is used

for diagnostics,up and download of configuration

files,etc.

I/O Boards

Only five I/O board types are needed to cover the

main requirements for the I/O signals connected to

the RTU. This is possible because of a microprocessor-controlled kernel module which is identical on

all types of I/O boards,whereas the individual I/O

function is provided by type specific hardware circuit extensions to the kernel.

• Binary Input Board 23BE21

• Binary Output Board 23BA20

• Binary Output Supervision Board 23BA22

• Analog Input Board 23AE21

• Analog Output Board 23AA20

Direct interfacing of 110-220 V DC binary IO

without interposing relays is possible with:

• Binary Input Board 23BE40

• Binary Output Board 23BA40

Modems

For communication with telecontrol lines differnt

types of FSK Modems are available:

• Universal FSK Modem 23WT22

• V.23 Modem 23WT23

• 9600 bps FSK Modem 23WT24

For fibre optic communication are available:

• fibre optic coupler 23OK22

RTU560 does also provide interfaces to all kind of

analog and digital comminication equipement.

Configurable Process Data Points

Overall total per RTU560 approx.3000 directly connected data

points,including data points from IEDs and subordinate RTUs.

Higher volumes are possible on request.

I/O Boards

Binary Input Board 23BE21

Inputs: 16,optically isolated

Input voltage: 24 ...60 V DC

Binary Output Board 23BA20

Outputs: 16,relay single pole

max.operating voltage: 60 V DC

Switching capacity: 40 VA (L/R=30 ms)

Analog Input Board 23AE21

Inputs: 8 differential inputs

Input range: 2/5/10/20/40 mA

uni-,bipolar or live zero

+/-2 V DC,0..20 V DC

Accuracy: < 0,1%

Resolution: 12 bit + sign

Analog Output Board 23AA20

Outputs: 2,galvanically isolated

Output current: 2,5/5/10/20mA

uni-,and bipolar,

4 ...20 mA

Multi I/O Board 560MIO80 (RTU560E)

Binary Inputs: 16,optically isolated

Input voltage: 24 ...60 V DC or

110 ...220 V DC

Binary Outputs: 8,relay single pole

Max.operating voltage: 60 V DC or 220 V DC

Switching capacity: 40 VA (L/R =30 ms) or

50 VA (L/R=40 ms)

Analog Inputs: 4 differential inputs

Accuracy: < 0,1%

Resolution: 12 bit + sign

Binary Input Board 23BE40

Inputs: 16,optically isolated

Input voltage: 110 ...220 V DC

Binary Output Board 23BA40

Outputs: 16,relay single pole

Max.operating voltage: 220 V DC

Switching capacity: 50 VA (L/R=40 ms)

Communication Board

Serial Line Interface 560SLI02

Serial Line Interfaces: 2 x RS 232C or RS 485

2 x RS 232C or RS 422

1 x MMI RS 232C

Ethernet Interface 560ETH03

Ethernet: 10 Mbit/s,10 Base T

Serial Line Interfaces: 2 x RS 232C or RS 485

1 x MMI RS 232C

Communication Unit 560CMU04

Ethernet: 100Mbit/s,10/100 BaseT

Serial Line Interfaces: 4 x RS 232C or RS 485

1 x MMI RS 232C
