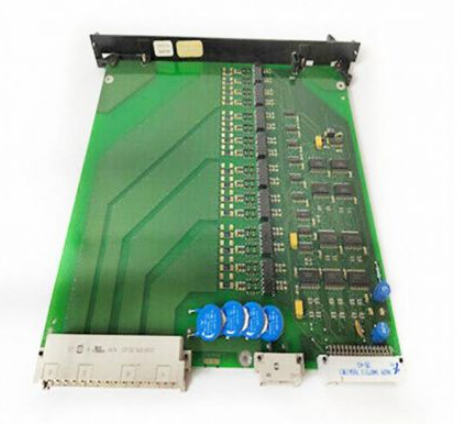

ALSTOM PIB100G 3BE0226 Control Board

ALSTOM PIB100G 3BE0226 Control Board

Product Overview

ALSTOM PIB100G 3BE0226 Control Board is a professional control board launched by Alstom, playing a key role in industrial automation control and power system fields. This control board integrates multiple functions such as data processing, signal transmission, and logic control through a highly integrated design. It has powerful performance and high reliability, and can accurately and efficiently monitor and control industrial equipment. It is one of the core components that ensures stable and efficient operation of industrial production processes. Its modular design facilitates installation, debugging, and maintenance, and can be flexibly configured according to the needs of different industrial scenarios to meet diverse industrial control requirements.

Specification parameters

Input/output interface: equipped with rich input/output interfaces, including multiple analog input channels, can accurately collect analog signals such as voltage, current, temperature, pressure, etc., with a sampling accuracy of up to ± 0.1%; Having sufficient digital input/output channels, able to quickly respond to changes in the status of external devices and output accurate control instructions. In addition, there are communication interfaces such as Ethernet and RS-485, which support multiple communication protocols and facilitate efficient data exchange and networking with other devices and systems.

Working voltage: Supports a wide voltage input range of 18-36V DC, with a built-in high-efficiency voltage regulator circuit that can work stably in industrial sites with large voltage fluctuations, ensuring the reliability and stability of the control board operation.

Working temperature: It can operate stably within a wide temperature range of -40 ℃ to 85 ℃. Whether in harsh outdoor environments or high-temperature industrial production workshops, it can maintain good performance and adapt to various harsh industrial environmental conditions.

Data processing capability: Equipped with high-performance processors, it has powerful data processing and computing capabilities, with a data processing speed of over 100000 times per second. It can perform real-time filtering, analysis, conversion and other processing operations on collected data, providing timely and accurate data support for system control.

Size specifications: Adopting a compact design structure, the dimensions are approximately [specific length x width x height dimensions], occupying small space and making it easy to install in various control cabinets or equipment with limited internal space.

Core functions

Data collection and processing: It can collect various signals in the industrial production process in real time, and preprocess the collected data, such as filtering and denoising, range conversion, linearization processing, etc., effectively improving the quality and usability of the data. By using built-in algorithms for deep analysis of data, signal peak detection, trend prediction, and other functions can be achieved, providing powerful basis for system control decisions.

Precise logic control: Based on preset control logic and algorithms, precise control of external devices is achieved. In the power system, the tap changer of transformers and the opening and closing of circuit breakers can be automatically adjusted according to changes in grid parameters; In industrial automation production lines, it is possible to accurately control the start stop and speed adjustment of motors, as well as the execution of mechanical arm movements, to achieve automated and intelligent operation of equipment.

Efficient communication networking: With the help of communication interfaces such as Ethernet and RS-485, it supports multiple communication protocols such as Modbus RTU, Modbus TCP, Profibus, etc., and can achieve interconnection and intercommunication with devices and upper computers of different brands and types. Through network communication, the collected data can be uploaded in real time to the monitoring center, and control instructions issued by the monitoring center can be received to achieve remote monitoring and control.

Intelligent fault diagnosis and protection: Equipped with a comprehensive fault diagnosis system, it can monitor its own working status and the connection status of external devices in real time. When abnormal situations such as input signal exceeding the range, communication interruption, and high temperature of the control board are detected, an alarm signal is immediately issued, and protective measures such as cutting off output and entering safe working mode are automatically taken to prevent the fault from expanding and ensure the safe operation of the system.

Working principle

When the ALSTOM PIB100G 3BE0226 Control Board is working, the analog signals output by external sensors or devices are connected to the control board through the analog input channel. First, the signal conditioning circuit amplifies, filters, and processes them, and then converts them into digital signals through an analog-to-digital converter (ADC), which are transmitted to the built-in processor. The digital input signal directly enters the processor through the digital input interface. The processor performs logical operations and processes on input data based on programs and algorithms pre stored in internal memory, generating corresponding control instructions. These instructions are converted into analog signals through digital output channels or digital to analog converters (DACs), and then output to external actuators to achieve precise control of the device.

During the communication process, the communication interface module is responsible for transmitting and receiving data with external devices. When receiving data, decode and verify the signal before passing it to the processor; When sending data, encode and package the data processed by the processor, and send it out through a communication interface. At the same time, the clock circuit and power management circuit inside the control board provide stable clock signals and power supply for the entire system, ensuring that all functional modules work together normally.

Key advantages

High precision and high reliability: Advanced sensor technology and high-precision A/D and D/A converters are used to ensure high precision in data acquisition and control. High quality electronic components are selected and rigorously tested to demonstrate excellent resistance to electromagnetic interference and environmental adaptability. They can operate stably in complex electromagnetic environments and harsh weather conditions, significantly reducing equipment failure rates and maintenance costs.

Flexible scalability: Rich input and output interfaces and support for multiple communication protocols enable it to flexibly adapt to different industrial equipment and system requirements. Users can easily achieve functional expansion and system upgrades by adding expansion modules or adjusting software configurations according to actual application scenarios, meeting the changing needs of enterprise production development.

Efficient processing performance: The combination of high-performance processors and optimized data processing algorithms ensures that the control board can quickly and accurately process large amounts of data, respond to external signal changes in a timely manner, make control decisions quickly, and significantly improve system operating efficiency and production efficiency.

Convenient installation and maintenance: The compact design and standardized interface make the control board easy to install and can be quickly integrated into existing systems. The comprehensive self diagnostic function and clear fault indication facilitate technicians to quickly troubleshoot and repair faults, shorten equipment downtime, and improve production continuity.

Precautions

Installation environment requirements: It should be installed in a dry, well ventilated, non corrosive gas, and non violent vibration environment. Avoid installation in high temperature, humid, and dusty areas to prevent electronic components from being affected by moisture, oxidation, or dust blockage, which can affect performance and lifespan. The installation location should be far away from strong electromagnetic interference sources such as large motors and transformers to reduce the impact of electromagnetic interference.

Power connection specification: Before connecting the power supply, it is necessary to confirm that the input power supply voltage is consistent with the requirements of the control board, and ensure that the power supply polarity is correct. It is recommended to use a stable power supply and install appropriate fuses and filtering devices in the power line to prevent power fluctuations and surges from damaging the control board.

Key points for signal connection: When connecting input and output signal cables, ensure that the cables are firmly connected to avoid virtual connections and short circuits. For analog signals, shielded cables are used and the shielding layer is reliably grounded to reduce external interference. At the same time, pay attention to signal range matching to prevent input signals from exceeding the range and damaging the control board.

Software operation specifications: When configuring and programming software, strictly follow the product manual to avoid system failures or data loss caused by improper operation. Regularly backup the control board software for quick system recovery in case of malfunctions. Before upgrading software versions, conduct testing to ensure compatibility between the new version of software and hardware.

Similar model supplement

ALSTOM PIB101G 3BE0227 Control Board: It belongs to the same series as PIB100G 3BE0226 Control Board and has similar basic functions and interface layout. However, PIB101G 3BE0227 has significantly improved data processing speed, with a 30% faster data processing speed than PIB100G 3BE0226, and supports more communication protocols. It is suitable for complex industrial control systems with higher requirements for data processing speed and communication compatibility.

ALSTOM PIB99G 3BE0225 Control Board: This model focuses on digital signal processing. Compared to PIB100G 3BE0226, its number of digital input/output channels has increased by 50%, and its logic operation function is more powerful. It is suitable for industrial scenarios mainly based on digital signal control, such as automated production line logic control and power system switch monitoring and control. However, its analog signal processing capability is relatively weak.
