ABB PM665 3BDS005799R1 processor module

From: | Author:Wang | Time :2025-08-08 | 328 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:



ABB PM665 3BDS005799R1 processor module

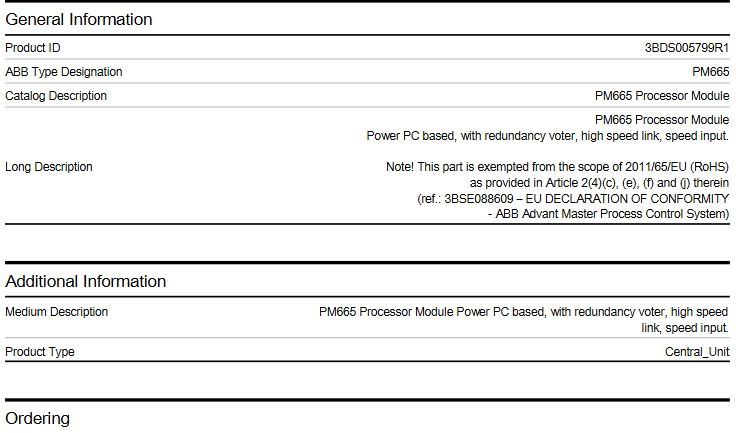

Basic information

Product ID: 3BDS005799R1

ABB model name: PM665

Product Description: Based on Power PC, equipped with redundant voter, high-speed link, and speed input processor module.


Product type: Central-Unit

Note: This product is exempt from the 2011/65/EU (RoHS) directive, based on Article 2 (4) (c), (e), (f), and (j), with reference to document 3BSE088609 (EU Declaration of Conformity for ABB Advance Master Process Control Systems).


Ordering and Customs Information

HS code: 853710, covering boards, panels, consoles, etc. equipped with two or more devices of item 85.35 or 85.36, used for electrical control or distribution, including instruments or equipment of chapter 90 and numerical control equipment (excluding switchgear of item 85.17), with a voltage not exceeding 1000V.

Customs tariff number: 85371091

Size and weight

Product net depth/length: 252mm

Product net height: 273mm

Product net width: 40mm

Net weight of product: 2.04kg

Environmental related information

RoHS Status: Compliant with EU Directive 2011/65/EU

WEEE category: not within the scope of WEEE

SCIP: ea0c62c6-ca6e-4d56-ba94-48c4d0c5b621 (Germany)

Classification

Control System Products - Control and Communication - AC 100- Processor Modules - PM665 Processor Modules - PM665 Processor Modules

Control System - Advant OCS with Master SW - Controller - Advant Controller 160- Advant Controller 160 Version 2.2- Central Unit (repeated list)


Safety specifications are generally applicable to control system handling. Instructions and warnings related to a specific subject or operation of the product.
The following norms must be strictly observed:
 must strictly comply with the technical specifications and typical applications of the product system
 Personnel training: Only trained personnel shall install, operate, maintain or repair the product system. must
Provide guidance and explanation of the situation in danger areas to these personnel.
 Unauthorized changes: Changes or structural changes to the product system may not be made.
 Maintenance responsibility: Must ensure that the product system is used only under appropriate conditions and in full fitness for use.
 Working environment: The user must meet the specified environmental conditions:


Safety regulation

The following safety provisions of EN 50110-1 shall be fully complied with when handling product systems (maintenance) :
1 Disconnect completely.
2 Secure to prevent reconnection.
3 Verify that the installation is complete.
4 Ground and short-circuit the device.
Warning: Only qualified maintenance personnel can remove and insert the module. In order to ensure the personal safety of the operator, before each pulling out or inserting, you must
Disconnect the power supply and ensure that there is no voltage on all terminals at the back, and the product is effectively grounded with the ground screw at the back.
