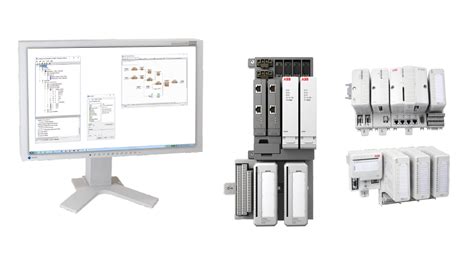

ABB PP886 Compact Product Suite hardware selector



ABB PP886 Compact Product Suite hardware selector

Product positioning and functional overview

Product positioning: PP886 is a standard touch screen in the Panel 800 series, belonging to the Compact Product Suite hardware product. It focuses on usability, high-performance graphic display, and multi protocol connectivity, suitable for human-machine interaction (HMI) needs in various industrial automation scenarios.

Core functions

Equipped with a 15.4-inch high-resolution TFT/LED display screen, supporting resistive touch, integrating rich templates and libraries, efficiently developing projects in Windows environment through Panel Builder tool, and supporting application simulation.

Core Features and Advantages

Usability: Provides comprehensive and integrated templates and libraries, Panel Builder tool is based on Windows environment, supports multiple languages, and facilitates rapid engineering development.

Graphic display: Using vector graphics technology, the TFT/LED display screen has a resolution of 1280 × 800 (16:10), a brightness of 450 cd/m ², supports brightness adjustment, and an icon based interface for easy navigation and control.

Durability: The shell is made of powder coated aluminum alloy, with a front panel protection level of IP65 (NEMA 4X/12), suitable for working temperatures ranging from -10 ℃ to+60 ℃ and non condensing humidity environments of 5% -85%. It is resistant to vibration of 1G and impact of 15G.

Openness: Based on The open architecture of the. NET framework supports multi brand controller connections, with 2 10/100 Base-T Ethernet ports, 2 USB 2.0 interfaces, and multiple serial ports (RS232, RS422/485, etc.) to meet local communication, expansion, and remote access needs.

Simulation function: The application can be directly simulated and run through Panel Builder 800 to reduce debugging risks.

Technical Parameter

Hardware configuration: Equipped with a 1 GHz ARM9 processor, 1 GB main memory, 2 GB SSD (1.5 GB can be used as application storage), and built-in real-time clock.

Power supply and power consumption: 24 V DC power supply (compatible with 18-32 VDC), power consumption of 31.2 W.

Communication interface: 2 Ethernet ports, 2 USB 2.0 ports, 1 RS232, 1 RS422/485 serial port (an additional RS485 is required when COM2 is RS485).

Certification and Compliance

Safety certification: Complies with CE, FCC, KCC, UL 61010-2-201 standards, certified by classification societies (DNV, KR, GL, etc.), meets RoHS (2011/65/EU) and WEEE (2012/19/EU) directives.

Physical specifications

Size and weight: The external dimensions are 410 × 286 × 61 mm, the cutting size is 394 × 270 mm, the installation depth is 53 mm (including a gap of 153 mm), the weight is 3.85 kg, and it supports panel installation and VESA 75 × 75 standard installation.

Environmental adaptability and certification

Protection level: front panel IP65 (NEMA 4X/12), rear shell IP20, suitable for humid and dusty environments.

Temperature range: working temperature -10 ℃~+60 ℃, storage temperature -20 ℃~+70 ℃, humidity 5%~85% (non condensing).

Mechanical performance: Resistant to 1 G of random vibration and 15 G of impact, meeting the stability requirements of industrial machinery.

Compliance certification: CE, FCC, UL 61010-2-201, classification society certification (DNV, KR, GL, etc.), compliant with RoHS and WEEE directives.

Software and Development Support

Engineering tool: Developed using Panel Builder 800, compatible with Windows environment, supports multilingual programming and template library reuse.

Simulation function: It can directly simulate applications in Panel Builder, reducing on-site debugging risks.

Open Architecture: Based on NET framework, supporting multi brand controller connections (such as PLC, drivers), compatible with industrial protocols such as OPC UA, Modbus, etc.

Typical application scenarios

Manufacturing production line: Real time monitoring of equipment status, integrated MES system data, supporting formula management and alarm prompts.

Energy and Power: Substation human-machine interface, displaying grid parameters and fault diagnosis, compatible with IEC 61850 protocol.

Process control: Visualization of chemical/pharmaceutical industry processes, supporting PID regulation and trend curve display.

Ship and Ocean Engineering: Compliant with DNV certification, suitable for cabin monitoring and power system control.

Selection comparison and adaptation suggestions

PP886:15.4 ", 1280 × 800, centralized monitoring of medium and large equipment, supporting wide temperature and high protection, suitable for complex environments

PP883:12.1 ", 1280 × 800, local operation for small and medium-sized devices, more compact, lower power consumption

PP895:19 ", 1280 × 1024 large control center panoramic display, higher resolution and brightness
