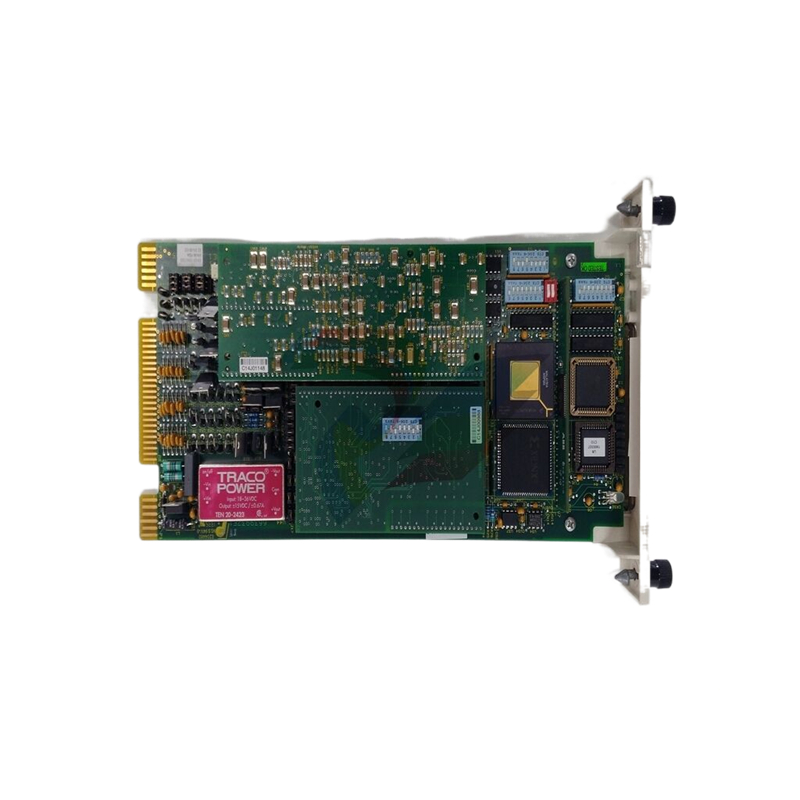

ABB PPD115A102 AC800F PEC inverter central processing unit
Outputs
Control output
Configurable as either:
Retransmission
0 to 20mA configurable for process variable, set point or position
feedback values
Relay outputs
3 relays, configurable for time proportioning control, valve drive or
alarms.
SPDT 5A 120/240V AC normally open or normally closed
Option
Serial communications
Electrical
Voltage
115 V ±15% or 230V ±15% 50/60Hz (link selectable)
Power consumption
<10 VA
Power interruption protection
<60 ms/<3 cycles, no effect
>60 ms/>3 cycles, controlled reset
Line interference
Meets IEC 801 Pt IV level 3 (>2kV spikes)
Environmental
Operating limits
–10 to 55 °C (14 to 131 °F), 0 to 95 %RH non-condensing
Temperature stability
<0.02 % of reading or 1 µV / °C (0.5 µV / L°F)
Housing dust/water protection
IP66 (NEMA 4X)
RF protection
Meets IEC 801 Pt. III level 3
EMC
Emissions and Immunity
Meets requirements of IEC 61326 for an Industrial Environment
Design and manufacturing standards
CE
CSA/FM Class 1 Div.2 Hazardous Area
Analog in the range of 0 to 20 mA
Max. load 15 V (750 at 20 mA)
Accuracy 0.1 % of span
Isolation 1 kV AC
Logic 12 V DC (SSR drive)
Max. load 400
Isolation 1kV AC
Max. load 15 V (750 at 20 mA)
Accuracy 0.1 % of span
Connections RS485, 4-wire, 1.2k to 9.6k baud rate
Protocol Modbus RTU

Synchronizing devices are widely used in power stations or
industrial installations with their own power generating facilities,
where the generators need to be paralleled with an island line
or a public line, or in power distribution systems.
Power circuit breakers may only be closed if both voltages are
approximately synchronous (coincident). Otherwise, faults in
line operation, loading of the generators and, in extreme cases,
damage to the generators can result.
SYNCHROTACT® 5 performs these functions safely and reliably,
whether as a monitoring element for manual paralleling or as
an independent fully-automatic synchronizing device.
The synchronizing and paralleling process can be divided
into the following blocks
Measuring
Voltage difference ΔU (amplitude), slip s (frequency diffe rence), and phase-angle α, are all required for paralleling.
These values are formed from the two measurement signals
U1 and U2 (see illustration, left).
Matching
Voltage and frequency matching functions reduce the voltage
difference ΔU, and slip s by sending adjusting pulses to the
voltage or turbine regulators.
Monitoring of paralleling conditions
This function compares the actual values with their set
maximum values and releases paralleling (CHK RELEASE) if
all conditions are fulfilled simultaneously.
