Product overview

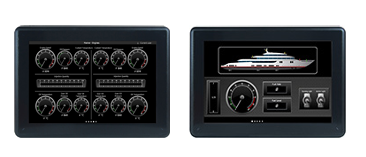

The Panel 800 Version 6 series is a user-friendly, intuitive, and ergonomic operator panel designed to be compact, space saving, and equipped with advanced features. It supports process and equipment control through function keys next to the screen or touch LCD display screens, making it suitable for process monitoring and operation in industrial automation scenarios.

Product classification and core parameters

This series is divided into three categories: standard panels, high-performance panels, and reinforced panels. The specific models and parameters are as follows:

Category, Model, Display Screen Size, Resolution and Proportion, Core Configuration Size (W × H × D, mm), Protection Level (Front/Rear), Operating

Temperature Range

Standard panel PP871 4.3 "480 × 272 (16:9) ARM9 processor (400MHz), 128MB memory 145 × 103 × 49 IP66/IP20-10~+60 ° C

PP874 7 "800 × 480 (16:9) Same as above 204 × 143 × 49 IP65/IP20 Same as above

PP877 10.4 "640 × 480 (4:3) Same as above 280 × 228 × 51 Same as above

PP874K/PP877K 7 "/10.4" with button operation as above, other models are slightly larger than PP874/PP877 and the same as above

High performance panel PP882 12.1 "1280 × 800 (16:10) Intel Atom processor (1.1GHz), 1GB memory 340 × 242 × 79 IP65/IP20-10~+50 ° C

PP885 15.4 "Same as above 410 × 286 × 83 Same as above

Reinforced panel PP880R 7 "800 × 480 (16:9) 1.0GHz Intel Atom, 3.5GB storage 204 × 143 × 73 IP66/IP20-30~+70 ° C

PP885R/PP886H 15.4 "1280 × 800 (16:10) 1.0/1.6GHz Intel Atom 410 × 286 × 83 Same as above

Common parameters:

Interaction mode: resistive touch (million touch cycles) or button operation (million press cycles).

Interface: All are equipped with Ethernet (RJ45), USB 2.0, RS232/RS422/485 serial ports, and support SD card expansion storage.

Power supply: 24VDC (18-32VDC), power consumption varies from 3.6W to 28W depending on the model.

Communication function

Supports multiple industrial communication protocols and drivers, and can be integrated with mainstream PLCs and control systems, including:

ABB proprietary protocols: COMLI (master/slave), Control Network MMS, Freelance 2016, etc.

Universal protocols: Modbus (ASCII/RTU/TCP, master/slave), Profinet, Ethernet/IP, OPC DA/UA, etc.

Third party agreements: Siemens S7 series, Schneider Uni Always, Rockwell DF1, etc., covering nearly 50 types of drivers.
