ABB Advant OCS SC610 Sub-Carrier Module (3BSE001552R1)

From: | Author:Wang | Time :2025-05-13 | 46 visit: | Share:

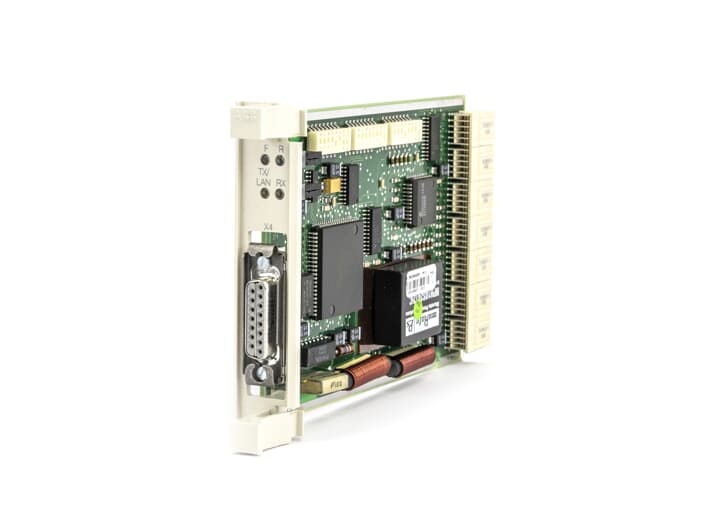

ABB Advant OCS SC610 Sub-Carrier Module (3BSE001552R1)

Product Overview

The ABB Advant OCS SC610 Sub Carrier Module (3BSE001552R1) belongs to the sub module carrier of the ABB Advant Controller 100 series. It mainly serves as an installation and connection platform for specific modules, playing an important role in building physical connection architecture and ensuring smooth communication between modules in the system. It is one of the key components in the construction of the entire automation control system architecture.


Specification parameters

Applicable series: Advant Controller 100 series

Adaptation module: mainly adapted to CI 532 communication module, one SC610 can install two CI 532 modules

Working temperature range: -20 ℃ to 60 ℃

Humidity range: 5% to 95% without condensation

Protection level: IP20


Core functions

1. Module bearing

Provide a stable physical installation platform for the CI 532 communication module, ensuring that the module maintains a stable connection under industrial environment vibration, impact and other conditions, without affecting communication and data transmission functions.

2. Electrical connection

Construct electrical connections between the CI 532 module and other parts of the system to ensure the stability and reliability of signal transmission, and achieve accurate data exchange between different modules and systems.


Working principle

The SC610 subcarrier module itself does not have complex data processing or signal conversion functions, and its working principle mainly revolves around the module's load-bearing and electrical connections. After the CI 532 communication module is installed on the SC610, the SC610 connects the electrical pins of the CI 532 module to the system backplane bus or other related connection lines through internal printed circuit board routing and interface design. In this way, external signals (such as field device data) received by the CI 532 module can be transmitted to other parts of the system (such as controllers) for processing through the connection channel established by SC610. The processed feedback signals can also be transmitted back to the CI 532 module through this path in the reverse direction, and then transmitted to the corresponding executing devices.


Key advantages

1. Strong adaptability

Specially designed for the Advant Controller 100 series, highly compatible with the CI 532 communication module, ensuring the convenience and stability of system integration, and reducing the risk of system failure caused by compatibility issues.

2. Stable structure

The sturdy physical structure design can adapt to harsh environmental conditions such as vibration and impact in industrial sites, ensuring the reliability of module connections under complex working conditions and maintaining long-term stable operation of the system.

3. High scalability

One SC610 can install two CI 532 modules to expand communication functions within limited control cabinet space, effectively enhancing the system's data transmission and processing capabilities, and meeting the growing communication needs of industrial automation systems.


Precautions

1. Installation environment

Ensure that the temperature and humidity of the installation environment are within the specified range of the product, and avoid installing it in places with direct sunlight, large amounts of dust, or corrosive gases to prevent damage to the module and affect its performance and service life.

2. Module installation

Strictly follow the installation manual provided by ABB to install the CI 532 module on SC610, ensuring proper installation and secure connection, and avoiding problems such as poor contact and abnormal signal transmission caused by improper installation.

3. System configuration

When integrating the SC610 with CI 532 module into the entire automation control system, it is necessary to use ABB's corresponding software tools to correctly configure the relevant parameters of the module (such as communication address, data transmission rate, etc.) to ensure the normal operation of the overall communication and control functions of the system.


Application scenarios

1. Industrial automation production line

In automated production lines such as automobile manufacturing and electronic equipment production, it is used to connect the CI 532 communication module to achieve efficient communication between on-site devices (such as sensors, actuators, etc.) and control systems, ensuring the automated operation and precise control of the production line.

2. Power system monitoring

In power facilities such as substations and power plants, the CI 532 module is used to collect and transmit operational status data of power equipment, providing data support for monitoring and scheduling of the power system, and ensuring stable and reliable operation of the power system.

3. Smart factory

In the construction of smart factories, as part of the automation control system architecture, it helps to build an efficient communication network, achieve interconnectivity and collaborative work between various production processes and equipment within the factory, and enhance the intelligent management and production level of the factory.
