ABB TB511, TB521, TB523, TB541 Terminal base

From: | Author:Wang | Time :2025-05-14 | 45 visit: | Share:

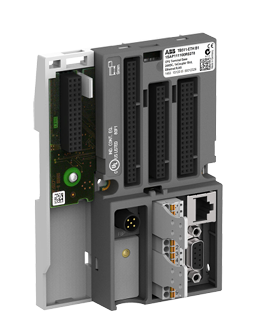

ABB TB511, TB521, TB523, TB541 Terminal base

Product Overview

ABB's TB511, TB521, TB523, and TB541 Terminal Base series products are carefully designed as important components for connection and adaptation requirements in industrial automation control systems. They are mainly used to achieve stable connections between various modules and systems, and undertake key data transmission and electrical adaptation tasks in the entire automation architecture, ensuring that all parts of the system can work efficiently and collaboratively, thereby ensuring the smooth operation of automated production processes.


Specification parameters

(1) TB511

Applicable system: Suitable for AC500 series automation control systems, can work in conjunction with various CPU modules and communication modules.

Number of slots: With a specific number of slots, it is convenient to connect different functional modules. The specific number of slots is X, providing a foundation for system expansion.

Electrical characteristics: The working voltage is [specific voltage value] V DC, which can stably adapt to the power supply requirements of the system and ensure the normal operation of connected equipment. Having a rated current carrying capacity of [specific current value] A, it can meet the current requirements of the connection module under normal working conditions, ensuring the stability of power transmission.

Physical dimensions: The design is compact, with dimensions of [length X] mm x [width Y] mm x [height Z] mm, making it easy to install in various control cabinets, effectively saving space, and adapting to the requirements of different installation environments.

Weight: Approximately [weight value] kg. The lightweight design not only reduces the overall weight of the system, but also facilitates installation and maintenance personnel operation.

(2) TB521

Applicable system: Designed specifically for the AC500 V2 version of the system, it has clear compatibility with the system version and can ensure compatibility with other modules under this system.

Number of slots: There are 2 slots specifically designed for installing communication modules, providing a hardware foundation for building communication links in the system.

Communication Interface: Equipped with ARCNET interface, it can efficiently support specific network communication protocols and achieve stable data transmission between devices. Equipped with two serial interfaces, namely RS 232/RS 485, it can flexibly connect different types of external devices to meet diverse communication needs.

Physical dimensions: The overall dimensions are [length A] mm x [width B] mm x [height C] mm, and the compact structure facilitates the layout and installation inside the control cabinet.

Weight: Approximately [weight value] kg, convenient for installation and maintenance operations.

(3) TB523

Applicable system: Suitable for AC500 series automation control systems, can be used in conjunction with various CPU modules and communication modules.

Number of slots: Equipped with 2 slots to facilitate the expansion of system functions.

Communication interface: Equipped with 2 Ethernet RJ45 interfaces, it can connect to the network at high speed, meeting the requirements of large data volume and high-speed data transmission. Simultaneously equipped with one COM interface, it increases the flexibility of device connection.

Physical dimensions: The dimensions are [length M] mm x [width N] mm x [height P] mm, with a compact design that is easy to install in various control cabinets.

Weight: Approximately [weight value] kg, lightweight and portable.

(4) TB541

Applicable system: Designed specifically for AC500 series automation control systems, it can operate in conjunction with various CPU modules and communication modules.

Number of slots: With 4 slots, it provides more possibilities for system expansion.

Communication Interface: Equipped with Ethernet interface, supports Ethernet communication protocol, and can achieve high-speed and stable data transmission. Simultaneously using 24V DC power supply to meet the system's power supply requirements.

Physical dimensions: The dimensions are [length Q] mm x [width R] mm x [height S] mm, with a compact design that saves space.

Weight: Approximately [weight value] kg, convenient for operation.


Core functions

(1) TB511

Module connection: mainly used to achieve physical connections between various modules and systems, providing stable electrical pathways for data transmission. For example, input/output (I/O) modules, communication modules, etc. can be connected to AC500 series CPU modules to ensure that the modules can communicate with each other and work together.

Electrical adaptation: It can adapt and adjust the electrical parameters of the connected modules to ensure electrical compatibility between different modules. Adjust parameters such as voltage and current to ensure stable operation of each module in a unified electrical environment, avoiding equipment failures caused by electrical mismatches.

(2) TB521

Communication module connection: specifically used to connect communication modules, providing a foundation for building communication networks for the system. Through its ARCNET interface and RS 232/RS 485 serial interface, the AC500 V2 system can be connected to other devices with corresponding interfaces to achieve data transmission and interaction.

Communication protocol support: Supports ARCNET communication protocol, enabling efficient data transmission in industrial automation networks. Meanwhile, the RS 232/RS 485 interface can support multiple serial communication protocols, facilitating communication with different types of external devices and meeting diverse communication needs.

(3) TB523

High speed network connection: With its two Ethernet RJ45 interfaces, it can achieve high-speed data transmission and meet the high real-time requirements of industrial automation application scenarios. For example, in an automated production line, a large amount of production data and control instructions can be quickly transmitted to ensure the efficient operation of the production line.

Device expansion: Through its two slots, different functional modules can be connected to achieve system function expansion. Connect more communication modules and increase the number of communication interfaces in the system to meet the needs of multi device connections in complex industrial environments.

(4) TB541

Multi module connection: Its four slots can connect multiple different types of modules, providing the possibility for large-scale expansion of the system. In large-scale industrial automation projects, multiple I/O modules, communication modules, etc. can be connected to meet the requirements of complex control systems for a large number of module connections.

Ethernet communication: Utilizing Ethernet interfaces, it supports high-speed and stable Ethernet communication, enabling data exchange with other devices that have Ethernet interfaces. If the system is connected to devices such as upper computers and servers to achieve centralized data management and remote monitoring.


Working principle

(1) TB511

After the system is powered on, TB511 establishes physical and electrical connections with the connected modules through its own slots. It matches the electrical characteristics of the signals transmitted from each module based on the electrical standards set by the system, such as adjusting the voltage amplitude and current size of the signals, to ensure stable transmission between different modules. At the same time, it organizes and forwards communication requests from various modules, similar to a transportation hub, ensuring orderly flow of data between modules. It does not perform logical processing of data itself, but only focuses on connection and electrical adaptation work.

(2) TB521

The work of TB521 in the system mainly revolves around communication. When the connected communication module requires data transmission, TB521 encapsulates and parses the data according to the supported ARCNET protocol or RS 232/RS 485 serial communication protocol. For example, in the ARCNET network, it packages the data transmitted by the communication module in the format of the ARCNET protocol and sends it to the network through the ARCNET interface; When receiving data, perform the opposite operation by unpacking the received data that complies with the ARCNET protocol and passing it to the communication module. For the RS 232/RS 485 interface, data processing and transmission are also carried out according to the corresponding serial communication protocol to ensure smooth communication.

(3) TB523

The working principle of TB523 is based on Ethernet communication and device connection expansion. In terms of Ethernet communication, it utilizes its own Ethernet RJ45 interface and follows the Ethernet communication protocol to achieve data exchange with other Ethernet devices. When there is data in the system that needs to be sent to or received from an external network, TB523 performs Ethernet frame encapsulation and decapsulation operations on the data to ensure accurate transmission in the Ethernet network. In terms of device expansion, TB523 provides electrical connections and communication channels for functional modules connected through its slots, integrating these modules into the overall communication architecture of the system to achieve data sharing and collaborative work between modules.

(4) TB541

TB541 mainly works through its multi slot design and Ethernet communication function. In terms of module connection, each slot can connect different functional modules, and TB541 provides stable electrical connections and communication interfaces for these modules. When data exchange is required between different modules, TB541 is responsible for coordinating the transmission path of data to ensure that the data can arrive at the target module accurately and without errors. In terms of Ethernet communication, it is similar to TB523, using Ethernet interfaces to follow Ethernet communication protocols for data transmission and reception, achieving communication between the system and external Ethernet devices, such as uploading data collected by the system to remote servers or receiving control instructions issued by remote servers.


Key advantages

(1) TB511

High reliability: Adopting ABB's advanced manufacturing technology and high-quality electronic components, after strict quality testing, it can operate stably for a long time in harsh industrial environments. For example, in high temperature and high humidity industrial environments, TB511 can work continuously and stably, reducing the probability of system failures caused by connection problems and improving the continuity and stability of the production process.

Flexible scalability: Its multiple slot design provides convenience for system expansion, allowing users to add or replace modules with different functions at any time according to their actual needs, meeting the constantly changing needs of industrial automation applications. For example, when expanding production scale or adjusting production processes, it is convenient to add I/O modules or communication modules to achieve system function upgrades.

Good compatibility: It has good compatibility with various modules of the AC500 series, without worrying about matching issues between different modules, reducing the difficulty and cost of system integration. Whether connected to CPU modules, I/O modules, or communication modules, stable communication and collaborative work can be ensured.

(2) TB521

Professional communication function: Designed for communication needs, its ARCNET interface and RS 232/RS 485 serial interface can meet the diverse communication requirements in the field of industrial automation. In some industrial networks that require high real-time performance, ARCNET interface can achieve fast and stable data transmission; The RS 232/RS 485 interface can easily connect some traditional serial devices, such as sensors, controllers, etc., to achieve interconnection and intercommunication between devices.

System compatibility: Specially designed for the AC500 V2 system, it has extremely high compatibility with other modules within the system, ensuring stable operation in the AC500 V2 system, reducing communication failures caused by compatibility issues, and improving the overall reliability of the system.

Easy to install and maintain: With a compact design and simple installation method, maintenance personnel can easily troubleshoot and replace it. When a communication failure occurs, the TB521 module can be quickly located and inspected and repaired, reducing equipment downtime and improving production efficiency.

(3) TB523

High speed communication capability: Two Ethernet RJ45 interfaces provide high-speed data transmission channels, which can meet the needs of industrial automation for large data volumes and high-speed data transmission. In the real-time monitoring and control scenario of automated production lines, a large amount of production data and control instructions can be quickly transmitted to ensure the efficient and precise operation of the production line.

Easy device expansion: Two slots facilitate users to connect different functional modules, enabling system functionality expansion. In industrial automation projects, communication modules, I/O modules, etc. can be flexibly added according to actual needs to improve system functionality and performance, and adapt to changes in different application scenarios.

Stable and reliable: Using high-quality electronic components and mature manufacturing processes, rigorously tested and verified, it can work stably in complex industrial environments. Whether in environments with strong electromagnetic interference or in places with large temperature and humidity changes, TB523 can ensure the stability of communication and the reliability of device connections.

(4) TB541

Powerful expansion capability: 4 slots provide powerful expansion space for the system, which can connect multiple different types of modules, meeting the needs of large-scale industrial automation projects for a large number of module connections and system function expansion. When building complex automation control systems, TB541 can serve as a core connecting component to achieve efficient integration of numerous devices and modules.

Efficient Ethernet Communication: The Ethernet interface supports high-speed and stable communication, enabling fast data exchange with various external devices. In industrial IoT applications, TB541 can easily connect systems with cloud servers, smart devices, etc., enabling remote transmission and sharing of data, providing support for industrial intelligence upgrades.

High reliability: With high reliability design, it can operate stably for a long time in harsh industrial environments. Through strict quality inspection and optimized circuit design, TB541 can resist adverse factors such as electromagnetic interference, vibration, dust, etc. in industrial environments, ensuring the normal operation of the system and reducing losses caused by equipment failures.


Precautions

(1) TB511

Installation environment: It should be installed in a dry, well ventilated environment without strong electromagnetic interference. Avoid installing near equipment that generates strong electromagnetic fields, such as large motors and transformers, to prevent electromagnetic interference from affecting the stability of signal transmission and causing equipment failure.

Installation operation: During the installation process, it is necessary to follow the requirements of the product manual. Ensure that the module slots are securely connected to avoid unstable signal transmission or equipment damage caused by looseness. When plugging and unplugging modules, use appropriate tools and pay attention to the operating force to prevent damage to the slot interface.

Regular maintenance: Regularly inspect and maintain the equipment, including cleaning the dust on the surface of the equipment, checking whether the connection lines are loose, etc. It is recommended to conduct comprehensive maintenance checks at regular intervals (such as 3-6 months) to ensure long-term stable operation of the equipment.

(2) TB521

Communication settings: When using TB521 to connect the communication module, strictly follow the requirements of the communication protocol for parameter settings. Carefully check the communication parameters of ARCNET interface and RS 232/RS 485 interface, such as baud rate, data bits, parity bits, etc., to prevent communication failure caused by incorrect parameter settings.

Installation location: Try to install TB521 in a location that is easy to operate and maintain, so that it can be quickly inspected and repaired in case of communication failures. At the same time, it is necessary to avoid installation in environments with high temperature, humidity, or corrosive gases to avoid affecting the service life of the equipment.

Module compatibility: When selecting communication modules to connect with TB521, ensure compatibility between modules. Although TB521 is compatible with most communication modules within the AC500 V2 system, attention should still be paid to the subtle differences that may exist between different models of modules to avoid communication difficulties caused by compatibility issues.

(3) TB523

Network security: Due to the Ethernet interface of TB523, attention should be paid to network security issues when accessing the network. Set appropriate network access permissions to prevent unauthorized devices from accessing the system, avoiding data leaks and network attacks. It is recommended to adopt security measures such as firewalls and encrypted communication to ensure the network security of the system.

Heat dissipation requirements: During operation, TB523 may generate a certain amount of heat, so it is necessary to ensure that the installation environment has good heat dissipation conditions. Avoid installing it in enclosed and poorly ventilated spaces to prevent equipment damage due to overheating. Consider installing auxiliary cooling devices such as cooling fans or fins to ensure that the equipment operates within the normal temperature range.

Interface protection: Ethernet RJ 45 interface and COM interface should be appropriately protected to avoid external impact or damage to the interface. When the interface is not in use, an interface protective cover can be installed to prevent dust, moisture, and other contaminants from entering the interface and affecting communication quality.

(4) TB541

Module configuration: When using TB541 to connect multiple modules, it is necessary to configure the modules reasonably. Allocate slot resources reasonably based on the system's functional requirements and data traffic to avoid system performance degradation caused by unreasonable module configuration. At the same time, attention should be paid to the electrical compatibility between different modules to prevent equipment failures caused by electrical mismatches.

Power supply stability: Ensure stable 24V DC power supply for TB541. Unstable power supply may cause abnormal device operation and even damage the equipment. Stable voltage power supply or UPS (uninterruptible power supply) equipment can be used to ensure the stability and reliability of the power supply.

Regular inspection: Regularly inspect TB541 and its connected modules to check the operation status, communication status, etc. of the equipment. Timely identify and resolve potential issues to ensure the stable operation of the system. During the inspection process, professional testing tools can be used to inspect the equipment, improving the efficiency and accuracy of the inspection.


Similar model supplement

(1) TB511 Similar Models

TB512: Similar in function to TB511, it is also used for module connection and electrical adaptation in AC500 series systems. However, TB512 has increased in the number of slots and has [specific number of slots] slots. Compared to TB511, it can provide stronger expansion capabilities for the system and is suitable for industrial automation projects that require a high number of module connections. Its physical size and installation method are similar to TB511, making it convenient for users to replace it when expanding the system scale.

TB510: This model differs from TB511 in terms of electrical characteristics, with a working voltage of [different voltage values] V DC and a rated current carrying capacity of [different current values] A. It is suitable for some application scenarios with specific requirements for electrical parameters, such as in some industrial control systems with low voltage and low current
