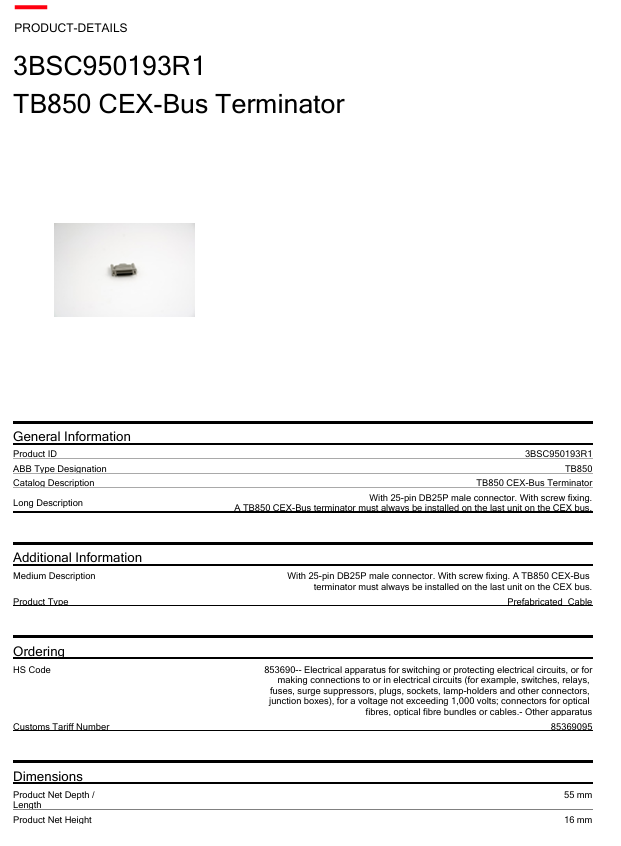

ABB 3BSC950193R1 TB850 CEX-Bus Terminator



ABB 3BSC950193R1 TB850 CEX-Bus Terminator

Basic information

product identification

Product ID: 3BSC950193R1

ABB model name: TB850, belongs to CEX Bus Terminator.

Product features: Equipped with a 25 pin DB25P male connector, fixed with screws. As required, it must be installed on the last unit of the CEX bus to ensure stable transmission of bus signals.

Product type: Prefabricated_Cable.

Customs and specification information

Customs related: Customs tariff code 85369095, classified as "other equipment such as circuit switches, protective or connecting electrical equipment (such as switches, relays, fuses, etc.) with a voltage not exceeding 1000 volts, and fiber optic connectors".

Physical specifications

Product net height 16 mm

Product net width 50 mm

Net weight of product 0.04 kg

Cable length 0 m

Environmental Protection and Classification Information

Environmental attributes: RoHS status is "No declaration required", and WEEE category is "Product Not in WEEE Scope".

Product attribution: Belonging to multiple control system product categories, mainly suitable for AC 800M series and 800xA system, including:

TB850 CEX Bus Terminator under AC 800M - Attachment

Prefabricated cables for AC 800M control software (version 4.0) and hardware (versions 4.0, 4.1, 5.0, 5.1) in the 800xA system

Prefabricated cables for 800xA 6.0 system

Prefabricated cables for AC 800M (versions 4.1, 5.0, 5.1, 6.0) in Compact Product Suite

Precautions

Installation location and necessity

Mandatory installation requirement: TB850, as a CEX Bus terminator, must be installed on the last unit of the CEX bus, which is the key to ensuring the integrity of the bus signal. If not installed according to this requirement, it may cause bus signal reflection, attenuation, or interference, leading to unstable communication, data transmission errors, and even system failures.

Location confirmation: Before installation, it is necessary to clarify the topology structure of the CEX bus, accurately identify the units at the end of the bus, ensure that the terminal is directly connected to the unit, and avoid being mistakenly installed at intermediate nodes.

Physical installation and connection

Connector matching: The product is equipped with a 25 pin DB25P male connector. During installation, it is necessary to confirm that the device interface connected to it is a matching DB25 female connector, and the pin definitions are consistent to prevent poor contact or signal misalignment caused by interface mismatch.

Fixed method: When using screws for fixation, it is necessary to use screws of appropriate specifications (recommended to refer to the product manual) to ensure a firm connection between the terminal and the equipment, avoiding loosening due to vibration, impact, and other factors that may affect signal transmission. Meanwhile, the fixing force should be moderate, as excessive tightening may damage the connector or equipment interface.

Space reservation: The net size of the product is 16mm in height and 50mm in width. Sufficient space should be reserved during installation to avoid squeezing with other equipment or cables, prevent connector deformation under stress, and facilitate subsequent inspection and maintenance.

Electrical and system compatibility

Voltage range: This product is suitable for circuits with a voltage not exceeding 1000 volts. When using it, it is necessary to ensure that the operating voltage of the CEX bus is within this range to avoid equipment damage caused by overvoltage.

System compatibility: Only compatible with AC 800M series (versions 4.1, 5.0, 5.1, 6.0) and 800xA system (including 800xA 6.0 system and AC 800M related software and hardware versions). Before use, it is necessary to confirm whether the control system version is in the compatibility list to prevent functional failure due to system mismatch.
