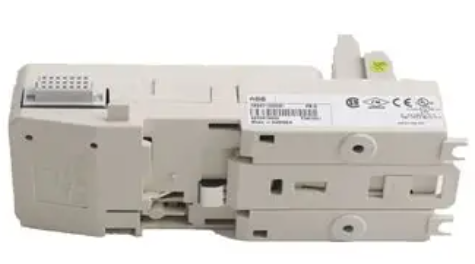

ABB TU810V1 Compact Terminal Unit

ABB TU810V1 Compact Terminal Unit

Product overview

TU810V1 is a 16 channel 50V compact module terminal unit (MTU) designed by ABB for the S800 I/O series. It is a passive device mainly used to connect field wiring to I/O modules, and also includes some Module Bus components. Its function includes allocating Modulus Bus to the I/O module and the next MTU, and generating the correct address for the I/O module by shifting the output position signal to the next MTU.

Core Features and Advantages

Adopting a single wire connection to achieve compact installation of I/O modules.

Supports up to 16 on-site signals and process power connections.

Can be connected to Modulus Bus and I/O modules.

Equipped with mechanical key control devices to prevent incorrect insertion of I/O modules.

Equipped with DIN rail locking device for grounding, supporting DIN rail installation.

Basic parameters

Product Code: 3BSE013230R1

Type: Compact

Connection method: Terminal block

Number of channels: 16

Voltage: 50V

Installation direction: Both directions are available

Installation temperature: Horizontal installation at 55 ° C (131 ° F), vertical installation at 40 ° C (104 ° F)

Compatible with I/O modules: AI810, AI815 and other models (such as AI, AO, DI, DO, DP series related modules)

Process connection: 2 × 2 process power supply, 5 × 2 process power supply (0V)

I/O redundancy type: single redundancy

Environment and Certification

Compliant with CE mark, electrical safety follows standards such as EN 61010-1, UL 61010-1, etc.

Dangerous Place Certification: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2.

Ship certification: ABS, BV, DNV-GL, LR.

Working temperature: 0 to+55 ° C (+32 to+131 ° F), certified temperature range:+5 to+55 ° C; Storage temperature: -40 to+70 ° C (-40 to+158 ° F).

Pollution level: Level 2 (IEC 60664-1), anti-corrosion level: ISA-S71.04 G3.

Relative humidity: 5% to 95% (non condensing), protection level: IP20 (IEC 60529).

Compliant with RoHS (EN 50581:2012) and WEEE (Directive/2012/19/EU) standards.

Size and weight

Width: 64mm (2.52 inches) including connector, 58.5mm (2.3 inches) from edge to edge after installation.

Depth: 64mm (2.52 inches) including terminals.

Height: 170mm (6.7 inches) including lock buckle.

Weight: 0.17kg (0.37 pounds).

Application area

Industrial Automation: Used for industrial production lines, automation equipment, etc., it is an important component of industrial automation systems that can achieve automated control of industrial processes, such as CNC machinery, electronic manufacturing, automotive manufacturing, and other industries.

Process control: Suitable for process control in industries such as chemical, metallurgical, food, petroleum and natural gas, it can control various parameters such as temperature, pressure, flow rate in industrial processes, and achieve precise measurement and control of process variables.

Discrete control: can be applied to discrete manufacturing industries, such as mechanical manufacturing, plastic machinery, etc., to control and manage discrete production processes.

Motion Control and Robotics: Plays a role in robot control, controlling the motion and operation of robots; It is also applicable to motion control scenarios, providing control support for related devices.

Electricity and Energy: Used in energy related fields such as electricity, water conservancy, water treatment/environmental protection, for data collection, equipment control, and system monitoring to ensure the stable operation of the energy system.

Other fields: It can also be used in industries such as building materials, paper printing, textile printing and dyeing, tobacco, as well as HVAC control and lighting control in building automation; It is also applicable to distributed control systems and SCADA systems, achieving centralized control of multiple devices and monitoring and management of processes.
