GE V7865 Intel ® Core ™ Duo Processor VME Single Board Computer

From: | Author:Wang | Time :2025-08-14 | 469 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

GE V7865 Intel ®  Core ™  Duo Processor VME Single Board Computer

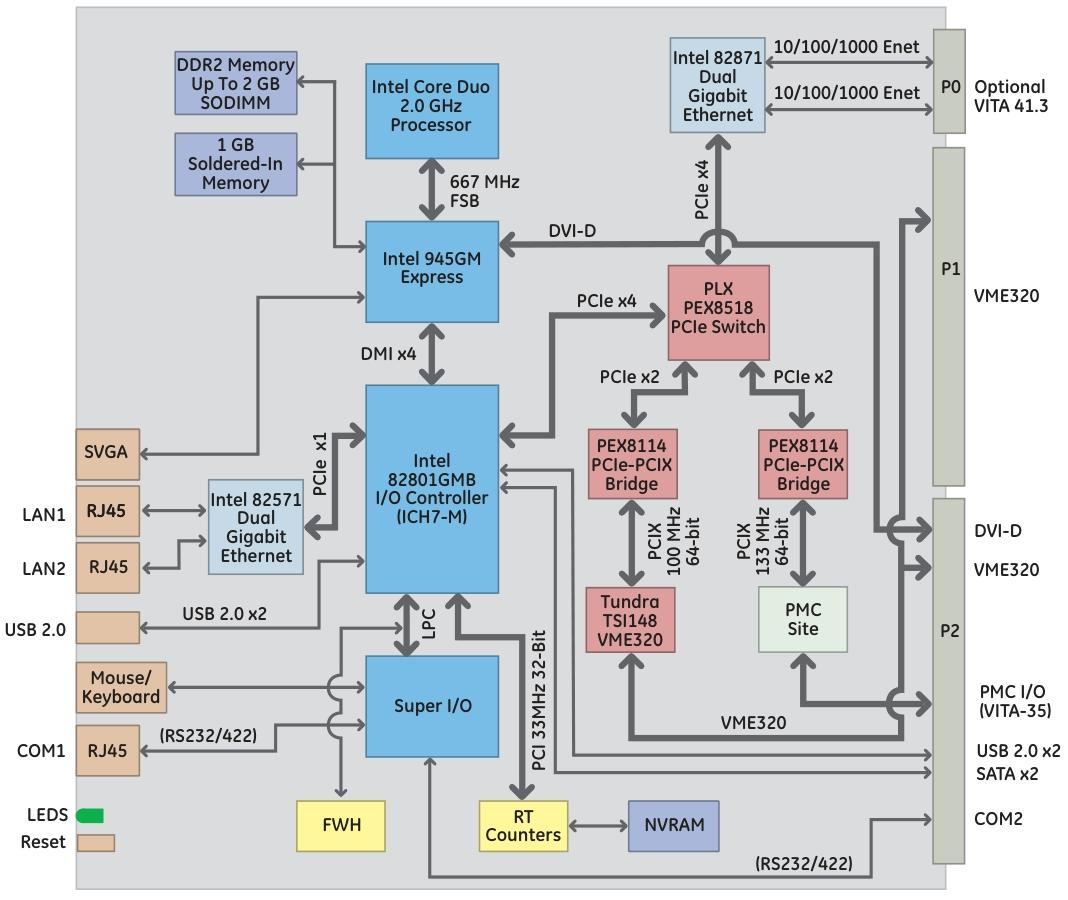

Product Overview

V7865 is the flagship Core Duo VMEbus single board computer of GE Fanuc embedded system, based on Intel Core Duo processor, which can provide processor and I/O flexibility to meet various application needs. It has three environmental versions: commercial, extended temperature, and reinforced extended temperature, which are very suitable for advanced defense, aerospace, and homeland security applications.


Core Features

Using Intel Core Duo processor with a speed of up to 2.0 GHz.

Maximum 3 GB DDR2 SDRAM memory.

Compliant with RoHS standards.

Up to 2 GB can boot CompactFlash.

667 MHz system and memory bus.

Compliant with ANSI/VITA 1.5-2003 (2ESST, up to 320 MB/s).

Optional VITA 41.3 (1000 Mb/s IEEE 802.3).

Two RS232/422 serial ports.

A PCI-X PMC site.

Four USB 2.0 ports.

Supports multiple operating systems.

Specification parameters

processor

Intel Core Duo processor, with a core processor speed of 1.6 GHz or 2.0 GHz.

High performance and low power consumption.

2 MB advanced level 2 cache.

667 MHz system bus.

SDRAM

The maximum memory configuration is 3 GB DDR2 SDRAM.

Onboard 1 GB of memory.

2 GB SODIMM (a 200 pin SODIMM DDR2 module).

The reinforced expansion temperature option is only available when the onboard memory is 512 MB or 1 GB.

CompactFlash

Maximum 2 GB CompactFlash.

CompactFlash can be configured as a boot device through BIOS boot device settings.

BIOS: V7865 system BIOS and video BIOS are provided in reprogrammable memory.

Gigabit Ethernet

VITA 41.3 (dual 1000 Mb/s).

Route dual gigabit Ethernet to the RJ45 connector on the front panel.

The Ethernet controller is Intel 82571.


USB port

Four USB 2.0 ports: two through P2 to Rear I/O, and two to the front panel.

The supported USB features include: isochronous data transfer, asynchronous message passing, self identification and configuration of peripheral devices, and dynamic (hot) connections.

VMEbus backplane interface: Tundra Tsi148 supports ANSI/VITA 1.5-2003 (2eSST) protocol, providing 320 MB/s bandwidth over the entire length of the 21 slot backplane, significantly improving performance compared to other buses, and also supporting broadcast mode. Optional VITA 41.3.

serial port

Two serial ports compatible with 16550, connected via DB-9 connector: one through P2 to Rear and one to the front panel.

The port has an independent 16 byte FIFO and supports baud rates up to 115 Kbaud.

Serial ATA: A serial ATA interface is connected through the VMEbus backplane connector P2.

PMC Expansion Slot: One 133 MHz PCI-X PMC site.

programmable timer

Two 16 bit timers and two 32-bit timers.

Map to PCI memory space.

Completely programmable through software and capable of generating PCI bus interrupts.

watchdog

Programmable interval.

Interrupt and board reset trigger.

size

6U (4HP) single slot European card shape.

Height: 9.2 inches (233.4mm).

Depth: 6.3 inches (160mm).

Thickness: 0.8 inches (20.3mm).


Power requirements

+5 VDC (± 5%), typical value to be determined, maximum value to be determined.

+12 VDC (± 5%), 0 mA.

-12 VDC (± 5%), 0 mA.

Airflow: Forced air cooling is required, and the minimum airflow measured at the top (outlet) of the equipment is 400 LFM.

temperature

Commercial: 0 ° C to 55 ° C.

Extended temperature: -40 ° C to 70 ° C.

Reinforced expansion temperature: -40 ° C to 70 ° C (Vita 47 Class EAC6).

humidity

Work: Relative humidity of 5% to 95%, no condensation.

Storage: Relative humidity of 5% to 95%, no condensation.

Impact: 20 g impact (reinforced expansion temperature).

Vibration (Reinforced Extended Temperature)

The PSD increases by 3 dB/octave from 5 Hz to 100 Hz.

100 Hz to 1000 Hz PSD=0.04g ²/Hz.

Reduce PSD by 6 dB/octave from 1000 Hz to 2000 Hz.


Ordering Options

V7865-210021: 2 GHz processor, 1GB DDR2 SDRAM, commercial temperature.

V7865-210026: 2 GHz processor, 1GB DDR2 SDRAM, reinforced expansion temperature.


Hardware accessories

ACC-0602:3U Rear Conversion Board.

ACC-0603:6U Rear Conversion Board.
