GE VME-3122A High Performance 16 Bit Analog to Digital Converter (ADC)



GE VME-3122A High Performance 16 Bit Analog to Digital Converter (ADC)

Basic Information

Product Name: VME-3122A High Performance 16 Bit Analog to Digital Converter (ADC) Board

Production company: GE Fanuc Intelligent Platforms

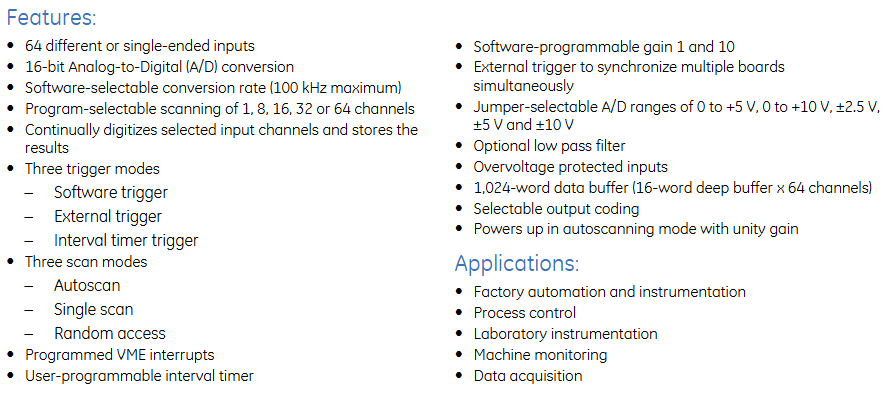

Main features

64 different or single ended inputs

16 bit analog-to-digital (A/D) conversion

Software selectable conversion rate (maximum 100kHz)

Programmable options for scanning channels 1, 8, 16, 32, or 64

Continuously digitize the selected input channel and store the results

Three triggering modes: software triggering, external triggering, and interval timer triggering

Three scanning modes: automatic scanning, single scan, and random access

Programmable VME interrupt

User programmable interval timer

Software programmable gains 1 and 10

External triggering can synchronize multiple boards simultaneously

Jumper selectable A/D range: 0 to+5V, 0 to+10V, ± 2.5V, ± 5V, and ± 10V

Optional low-pass filter

Over voltage protect

1024 word data buffer (16 word deep buffer x 64 channels)

Optional output encoding

When powered on, it is in automatic scanning mode with a gain of 1

Application Fields

Factory automation and instrumentation

process control

laboratory instruments

Machine monitoring

data acquisition

Ordering Options

Option Description

A (input filter option) 0=no filter; 1=10Hz（-3dB）； 2=50Hz（-3dB）； 3=100Hz（-3dB）； 4=500Hz（-3dB）

B (channel quantity option) 0=64 channels high performance; 1=32 channels high performance; 2=16 channels high performance

C (input option) 0=differential analog input channel with 96 pin non latch connector; 1=Single ended analog input channel with 96 pin non latch connector; 2=Differential analog input channel with 64 pin latch connector; 3=Single ended analog input channel with 64 pin latch connector

DE 0 (reserved for future options)

F (Special Sales Order) 0=Standard VME front panel without conforming coating; 1=Reserved; 2=Standard VME front panel with conforming coating

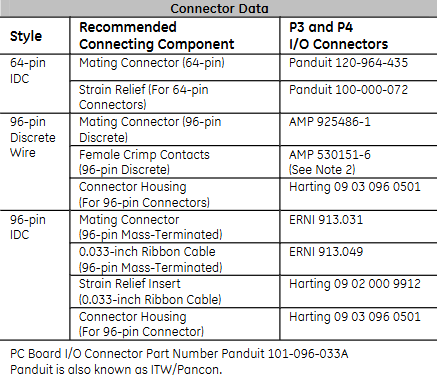

Connector data

Recommended style for connecting components P3 and P4 I/O connectors

64 pin IDC mating connector (64 pin) Panduit 120-964-435

Strain relief (applicable to 64 pin connectors) Panduit 100-000-072

96 pin discrete mating connector (96 pin discrete) AMP 925486-1

Female crimping contact (96 pin discrete) AMP 530151-6

Connector housing (suitable for 96 pin connectors) Harting 09 03 096 0501

96 pin IDC mating connector (96 pin large-scale termination) ERNI 913.031

0.033-inch ribbon cable (96 pin large-scale termination) ERNI 913.049

Strain relief insert (0.033-inch ribbon cable) Harting 09 02 000 9912

Connector housing (suitable for 96 pin connectors) Harting 09 03 096 0501

PC board I/O connector part number Panduit 101-096-033A

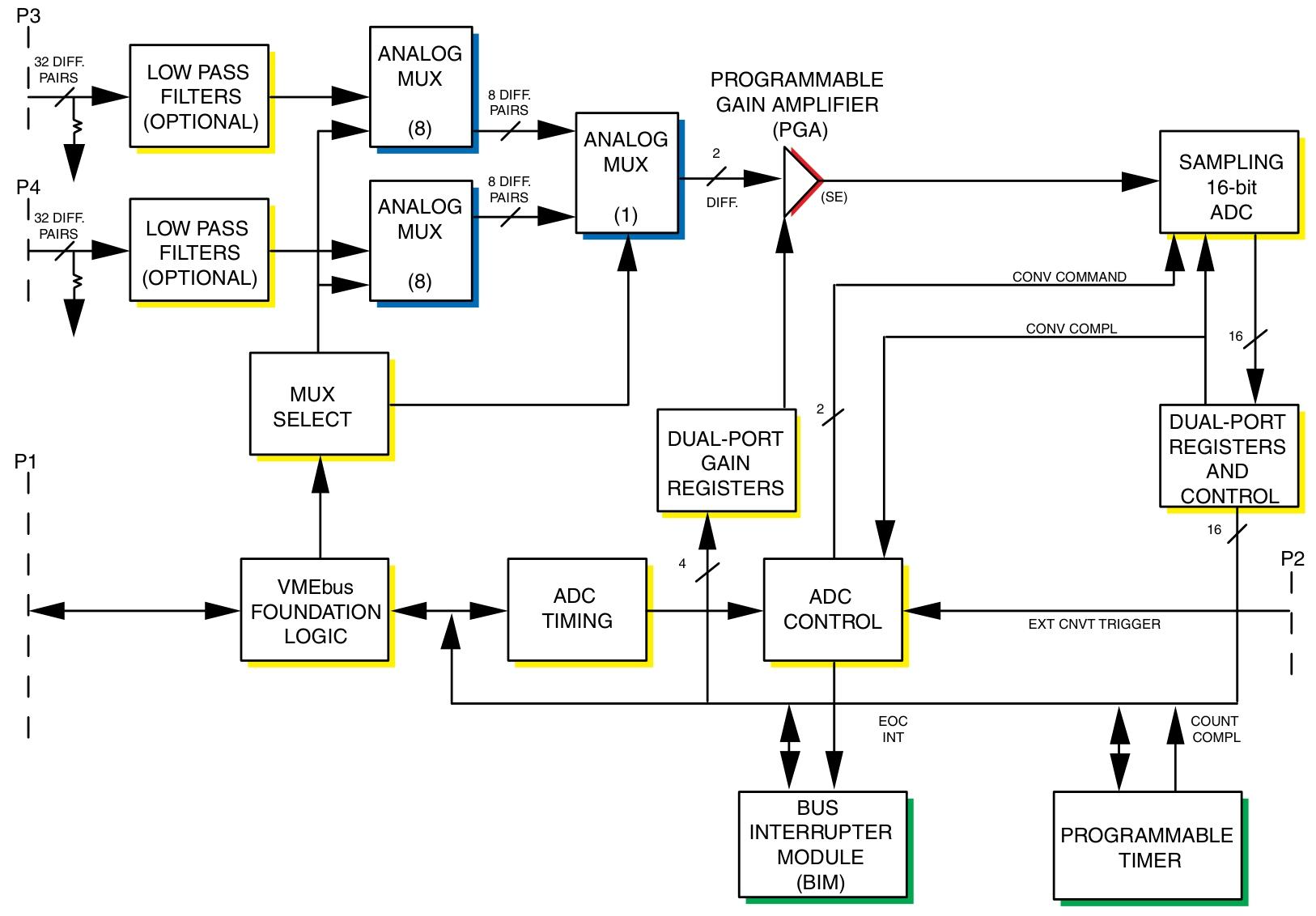

Functional characteristics

1. Working mode

MODE

Software trigger: Start the selected scanning mode by writing the software trigger address

External trigger: The external trigger received on the P2 connector initiates the selected scanning mode

Interval timer trigger: Start the selected scanning mode each time the programmed time interval expires

SCAN

Automatic scanning: default scanning mode, all active channels are scanned continuously in order

Single scan: Start a single data burst (scanning all selected channels) from the selected trigger mode, stop and wait for another trigger after scanning all selected channels

Random access: Each time the selected trigger mode is enabled, a single channel can be selected, digitized, and stored

Channel automatic gain: The unique gain code for each channel is loaded from VME into the gain buffer, and the allocated code is retrieved in real-time from the buffer during each channel acquisition

Synchronization: A single scan or burst can be initiated by an external TTL trigger through the P2 connector (external trigger) or a local trigger through the control and status register (CSR) (software trigger), and any event will generate a P2 trigger output, which can be used to synchronize up to 15 cards

2. VME related characteristics

VME access: The response to the address modifier can be selected as A32, A24, or A16 address space through jumper wires; Monitoring or user privileges, or both

VMEbus compliance: Compliant with VMEbus specifications ANSI/IEEE STD 1014-1987, IEC 821 and 297, with 6U external dimensions

VME interrupt: An interrupt request can be generated at the end or in the middle of a buffer scan, or it can be initiated after collecting a specific number of samples (1 to 65535), and the response vector is controlled through the interrupt vector register

Data ready flag: When the data buffer is full (end of scan) or half full (middle of scan), the data ready flag in CSR is set

Interval timer: Programmable interval timer provides a time interval of up to 687 seconds

3. Reset operation

Board reset response system reset or writing software reset address

The reset operation automatically establishes the following default conditions: automatic scanning mode, 64 channel block size, 64 channel data buffer, channel gain=x1, 100kHz conversion rate

ADC will undergo a calibration cycle under any reset condition, which takes 41ms after the reset operation is initiated

4. Other functions

PGA: Channel gains of x1 and x10 can be selected through a programmable gain amplifier (PGA). The PGA gain can be configured through software as a single gain for all channels, or real-time control can be used to assign unique gains to each channel

Panel indicator: The front panel LED controlled by the program is powered on during the reset period and turned off through CSR

Board Identification: The Board Identification Register (BIR) contains the VME-3122A identification code

Input characteristics

Number of input channels: 64, 32, or 16 differential or single ended channels

Full range A/D range: ± 2.5V, ± 5V, ± 10V, 0 to+5V, 0 to+10V, jumper optional

Channel gain: Software configuration is x1 or x10

Full range input range

Gain=1: ± 2.5V to ± 10V (bipolar); 0 to+5V, 0 to+10V (unipolar)

Gain=10: ± 250mV to ± 1V (bipolar); 0 to+0.5V, 0 to 1V (unipolar)

Accuracy (% of FSR): There are different values for different ranges and gains, based on the average of 1000 samples

Stability: Temperature drift, per degree Celsius=± 25PPM (ADC reading) plus ± 5PPM (ADC range) plus ± 2.5 µ V

Input noise: (0.4+0.3/G) mV, where G=PGA gain (noise is independent of filter options)

Input bias current (typical/maximum): 50/120nA

Input impedance (minimum): Different DC differential, DC common mode, AC differential, and AC common mode impedances when the power is turned on and off

Channel crosstalk (DC to 1kHz): 80dB between adjacent channels within ± 10V range; 70dB between adjacent channels within ± 2.5V range

Common mode voltage range: (IVCM |+| VIN |. G) ≤ 10V, where VCM=common mode voltage, VIN=input voltage, G=gain

Common mode rejection: From DC to 60Hz, when the 350 Ω source is unbalanced, the minimum common mode rejection for gain 1 is 68dB, typical 80dB; the minimum common mode rejection for gain 10 is 76dB, typical 89dB; the minimum common mode rejection for+5V and ± 2.5V ranges is 66dB, which can be adjusted on-site to achieve the same common mode rejection as gain 1

Overvoltage protection: ± 35V (continuous) power on/off; ± 80V (transient, maximum 1s)

Input filter: Optional low-pass single pole filter with different -3dB values at different frequencies, frequency doubling in single ended (pseudo differential) applications, cut-off frequency tolerance of ± 25%, unfiltered input bandwidth (20Vp-p) typically 40kHz

Common mode/floating input protection: Both sides of each input are grounded through a 22M Ω resistor

Transmission characteristics

Resolution: 16 bits

Input sampling: order, starting from channel 00

Input transfer function:

E IN=E LO+E FSR × 65536N ADC, where E IN=input voltage, E LO=lower end of input range, E FSR=full-scale input range, N ADC=A/D converter reading

A/D conversion rate: 381 to 100kSPS

Channel sampling rate (maximum): 100kSPS (100kSPS ÷ number of channels in the scan block, minimum 1 channel)

Time interval: 305 µ s to 687s

Data encoding: programmable to choose binary complement or direct/offset binary

Data buffer storage

Buffer size: 16 to 1024 consecutive 16 bit data words, program controlled

Block size: 1, 8, 16, 32 or 64 channels, program controlled

Access time: maximum 600ns during non scanning; typical 600ns during scanning, maximum 1.2 µ s (maximum access time in scanning mode only occurs when VME access occurs within the ADC sampling window)

VME access: D8 to or D16

Availability: Can be accessed from VME at any time, buffer and block sizes are controlled through configuration control registers (CCR)

Physical/Environmental Specifications

Size: 6U (4HP) single slot Eurocard shape

Height: 9.2 inches (233.4mm)

Depth: 6.3 inches (160mm)

Thickness: 0.8 inches (20.3mm)

Power requirement: 3.0A at+5VDC (maximum)

Airflow: Forced air cooling is required

Temperature: Operating temperature 0 to+65 ° C; Storage temperature -40 to+85 ° C

Altitude: Working at 0-10000 feet (3000m); Storage 0-40000 feet (12000m)

Humidity: Working relative humidity 0% to 80%, no condensation

Input connectors (P3, P4): can be ordered as 96 pin DIN non latch or 64 pin DIN latch. The center row of the 96 pin non latch connector is grounded, while the center row of the 64 pin latch connector is not grounded. When using the 64 pin latch connector in differential mode, users can provide grounding on the front panel jumpers E1 and E2, which will result in channels 31 and 63 being configured as single ended

UIOC support

In UIOC, VME-3122A is used as a monitoring device. During initialization, UIOC programs VME-3122A to scan all 64 channels and sets the scanning mode to automatic scanning. Through UCLIO ™ Language, users can set programmable channel gains and command UIOC to retrieve data from any or all channels of VME-3122A. Through a menu driven calibration process, users can create and store channel gain and offset correction factors, which UIOC automatically uses to provide software gain and offset correction for each channel.
