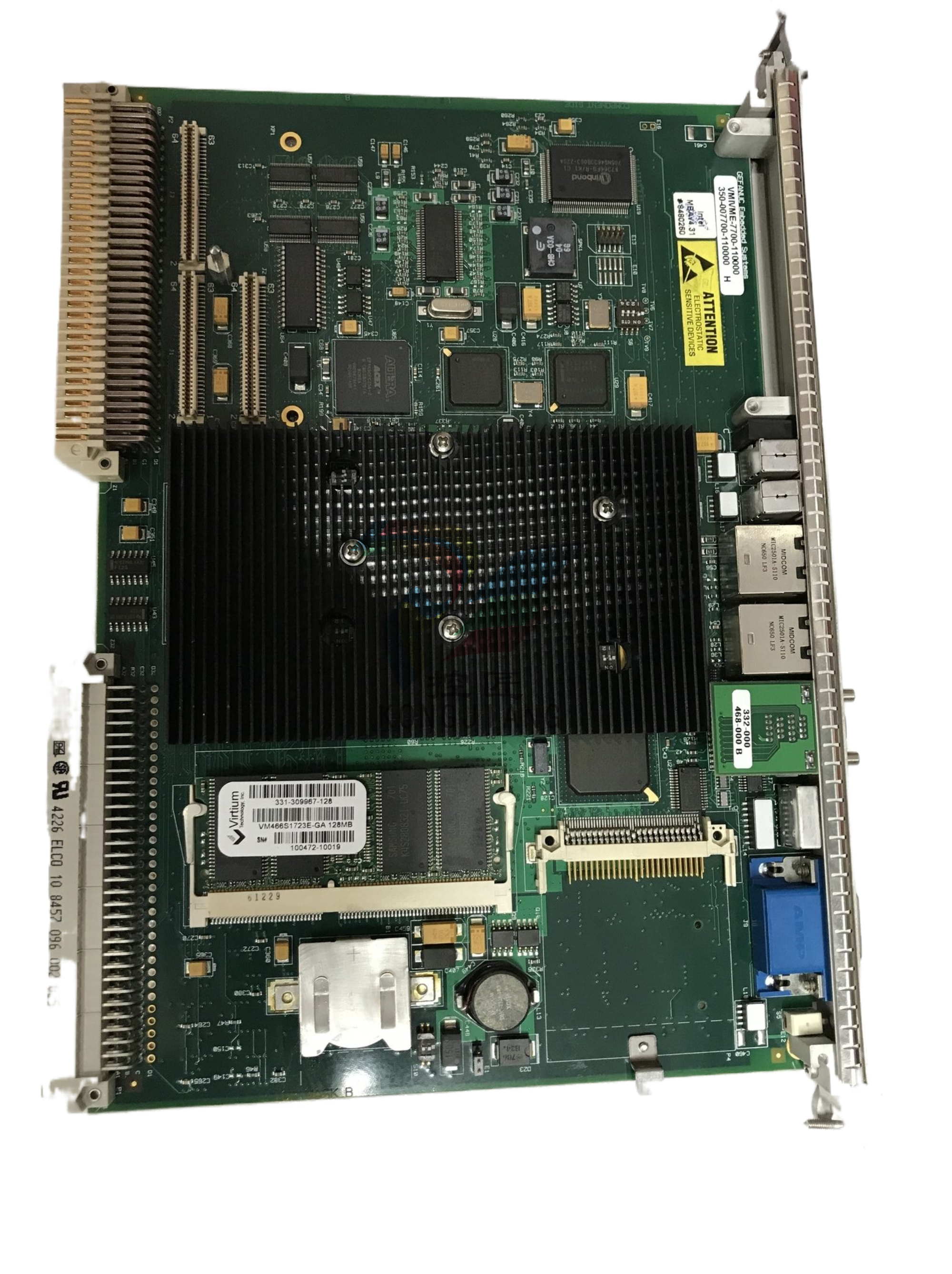

GE VMIVME-5576 REFLECTIVE MEMORY BOARD

From: | Author:Wang | Time :2024-12-18 | 226 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

GE VMIVME-5576 REFLECTIVE MEMORY BOARD

other VME equipment from GE Fanuc Embedded Systems,
implementations can be created for a wide variety of
applications, induding real time foctory automation, simulation,
instrumentation and control, and process control and
monitoring.
The BSP is linked with VxWorks OS,thus allowing software
applications created with Wind River Systems, Inc's
develop ment system to lood and run on the particular GE Fanuc
Embedded Systems SBC hardware being used. Serial ports,
parallel ports, keyboard, text mode video, and Ethernet
transceivers are all supported, as well as floppy and IDE hard
disk drives that can be connected to the computer boards.The
BSP provides Flash boot, NVRAM and timer support.
The BSP allows VxWorks applications to have occess to the
VMEbus. When hardware includes single cycle and block
transfers using DMA devices, they are supported by the BSP, as
VMEbus interrupt handling and error handling are supported.
are interprocessor communicotions with mailbax registers.
Since the VMEbus environment often contains a mixture of
devices from various manufocturers, the byte-swapping feature
is provided to allow big-endian and little-endian devices to
share dato correctly.|
QNXOS Support-VMISFT-7417Board Support Package:
VMISFT-7417 BSPprovides QNXsupport and includes aVMEbus
manager, user API and configuration files needed to run the
QNX BSP 0n GE Fanuc Embedded Systems'VMIVME-7xxxSBC
products. This BSP provides customizable VMEbus occess.Using
the QNXOS on the VMIVME-7xoxx SBCs provides a computing
platform suitable for real time applications.QNX provides the
applications program mer with a real time extensible POSIX OS.
GE Fanuc Embedded Sustems'VMISFT-7417 is designed to taillor
QNXs x8605 to the VMIVME-7xx plat form. This combination
entirely on the VMVME-7xx SBC boards without requiring any
provides a self-hosted develo pment environment which runs
external host sustems.
Solaris OS Support-VMISFT-7416 Board Support Package:
VMISFT-7416 BSPindudes everything necessary to alllow
installation of the Solaris Intel edition Os (available separately
from Sun Microsustems, Inc.) onto the VMIMME-7750SBC This
BSPindudes a nexus driver for VMEbus access. it allows military
and telecommunications and other applications to take
advantage of Sun Microsystems, Inc.'s Solaris OS on aVME-
based Intel SBC. This BSP and the Solaris OS provides POSIX-
compliant real time charocteristics.
Lynx0S x86 OS Support-VMISFT-7419 Board Support
Package:The VMISFT-7419 BSP includes all of the device drivers
and configuration tables needed to install the Lynx0Sx86
develop ment system (available separately from LynxReal-Time
Systems, Inc.J onto GE Fanuc Embedded Systems VMIVME-7750.
Using the LynxOS on the GE Fanuc Embedded Systems SBCs
provides acomputing platform suitable for hard real time
applications.LynxOS provides the applications programmer
with a stable development environment based on industry-wide
standards such as POSIX and Motif.
I/O Support-VMISFT-945010Works Board Drivers:This

driver supports GE Fanuc Embedded Systems’ extensive line of

VME I/O boards and is available for Windows XP/Windows 2000

and VxWorks. lOWorks board drivers take advantage of all the
key benefits and features of each supported 1/O board and new
I/O boards are constantly being added.
IOWorks board drivers contain both a C++ class library and a C
function library that provide a common interface to GE Fanuc
Embedded Systems I/O products for reading,writing and
configuring. You do not need to know the details of how an
individual board is programmed. For instance, you can use the
SetAttributes function on any supported GE Fanuc Embedded
Systems board; the WriteAnalog function controls the output
from any GE Fanuc Embedded Systems analog output board; or
the GetScanMode function retrieves the scan mode for any
GE Fanuc Embedded Systems analog board.
Physical/Environmental Specifications
Dimensions: 6U single slot Eurocard format
Height
9.2 in.(233.4mm)
Depth
6.3 in.(160mm)
Thickness
0.8in.(20.3mm)
Power Requirements:
+5VDC (±5 percent), 6A (typical), 7A maximum
+12VDC (±5 percent),105mA (typical), 200mA maximum
-12VDC (±5 percent), 50mA (typical),75mA maximum
Note:The currents at +12 and -12VDC are specified with the
serial connectors open.
Operating Temperature:0 to 50°C
Extended operating temperature is available for the following
options:
A=2 (733 MHz,0to 60°C)
A=9 (1.26 GHz, 0to 55*C)
A=6 (1GHz, 0to 40°C)
(Air flow requirement as measured at outside of heatsinkis to be
greater than 350 LFM)
Storage Temperature:-25 to 80°C
Relative Humidity:10% to 90%, noncondensing
VMEbus Interface:
DTB Master:
BLT32/BLT64,A32/D32,A24/D32.A16/D32
DTB Slave:
BLT32/BLT64.A32/D32,A24/D32.A16/D32
Requester:
Programmable, BR(3 to 0), ROR, RWD,BCAP
Interrupt Handler: 1H(1 to 7) D8(O)
Interrupter:
Programmable, IRQ7* to IRQ1*
Arbiter:
SGL,PRI,RRS
BTO:
Programmable (4 to 1,024 μs)
Compliance:
Rev.C.1
PMC Expansion Site Connector:5V signaling, types 1 and 2
32-bit PCI bus,33 MHz maximum
MTBF: 118,633 hours (Bellcore)
