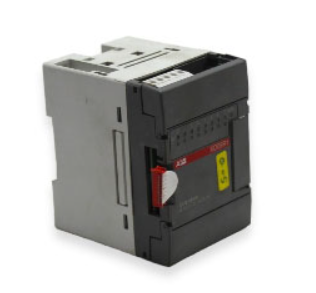

ABB XO08R1-B4.0 Extended Output Module

From: | Author:Wang | Time :2025-07-16 | 120 visit: | Share:



ABB XO08R1-B4.0 Extended Output Module

Product Overview

The ABB XO08R1-B4.0 extended output module is a key component used in the field of industrial automation to expand the input/output (I/O) capabilities of ABB PLC, which can endow automation control systems with more powerful functions. It demonstrates extremely high reliability and stability with advanced technological architecture, and can operate continuously and stably for a long time, providing solid support for automation control requirements in complex industrial environments.


Core functions

I/O channel expansion: This module provides multiple additional output channels for ABB PLC, specifically with 8 digital output channels, greatly expanding the system's output control points. Through these new channels, it is possible to connect and control more external loads, such as relays, contactors, indicator lights, solenoid valves, and other actuating components, to meet the diverse needs of automation control scenarios. For example, on an automated production line, it may be necessary to control numerous device actions, and the XO08R1-B4.0 module can help PLC easily achieve precise control of more devices.

Signal conversion and amplification: It can convert and amplify the digital signals output by PLC. The signals output by PLC are usually of low power, making it difficult to directly drive some high-power loads. And this expansion module can convert digital signals into output signals with sufficient driving capability to adapt to the working requirements of different loads. For example, it can convert the low-level digital signals output by the PLC into high voltage and high current signals that can drive the contactor coils, ensuring reliable contactor engagement and controlling high-power equipment such as motors.

Protocol communication support: Standard Modbus RTU communication protocol is used for communication. This protocol is widely used in the industrial field, with strong universality and good compatibility. Through this protocol, the XO08R1-B4.0 module can efficiently and stably exchange data with PLCs and other devices that support Modbus RTU protocol. Whether working with a single PLC in a small automation system or collaborating with numerous devices in a large complex industrial network, seamless integration can be achieved through this communication protocol, ensuring the accuracy and timeliness of data transmission.


Technical parameters

Output type: The output type is relay output, and the relay contacts support normally open or normally closed contact forms. This output method has the advantages of good isolation performance and strong load capacity, which can effectively isolate the control circuit from the load circuit, avoid mutual interference, and can withstand large currents and voltages. It is suitable for various types of load control.

Output current: Each channel can carry a maximum current of 2A, which can meet the driving requirements of common industrial loads. Whether it's small indicator lights, buzzers, or slightly high-power relays, solenoid valves, and other devices, they can all work stably within their driving capabilities.

Rated voltage: The rated working voltage is 24V DC, which is a commonly used DC voltage level in industrial automation control systems. It matches the power supply voltage of most PLCs and other industrial equipment, making it easy to configure and connect power in the system.

Power consumption: The power consumption of the module during normal operation is about 5W, which is relatively low. While ensuring efficient operation, it helps to reduce the energy consumption of the entire system and improve energy utilization efficiency.

Protection level: The protection level reaches IP20 (IEC529). This protection level can prevent solid foreign objects larger than 12mm from entering, such as fingers, and also prevent vertical water droplets from affecting the module. It is suitable for general indoor industrial environments. When installed and used in some relatively clean and dry control cabinets, it can effectively protect the internal circuit of the module from external foreign objects and water droplets, ensuring stable operation.

Working temperature range: The working temperature range is -25 ° C to+55 ° C, with a wide temperature adaptability. This enables the module to operate normally in different industrial environment temperatures, whether in factories in cold regions or workshops in hot environments, providing possibilities for the application of industrial automation systems in different regions and working conditions.


Installation and maintenance

Installation method: Supports two common methods: panel installation or DIN rail installation. Panel installation is suitable for situations where there are specific requirements for the installation position and the module needs to be fixed on the control cabinet panel or other positions for easy observation and operation; DIN rail installation is simple and fast to operate. Simply insert the module into the standard DIN rail, which saves space, facilitates centralized installation and layout in the electrical control cabinet, and makes it easy for technicians to install and maintain the equipment.

Maintenance points: During daily maintenance, it is necessary to regularly check the working status of the module. By using the indicator lights on the module, the working status of each output channel can be intuitively judged. If the indicator lights are on or off normally, it indicates that the corresponding channel is working properly; If the indicator light is abnormal, such as not on or constantly on, it may indicate a fault in the channel. In addition, it is necessary to regularly check whether the wiring terminals are loose, ensure that the electrical connections are firm and reliable, and prevent problems such as heating and ignition caused by poor contact, which may affect the normal operation of the module and the entire system. When a module malfunction is detected, its modular design facilitates quick replacement of faulty modules, reduces downtime, and minimizes the impact on production.
