ABB dual power conversion switch

ABB dual power conversion switch

Product Classification and Core Positioning

ABB Dual Power Transfer Switches are divided into two types: PC level and CB level, suitable for scenarios with extremely high requirements for power continuity and reliability, such as high-rise buildings, data centers, hospitals, fire protection systems, industrial production lines, etc. Its core features include:

Three position stable design: supports three stable working positions: I (common power supply), O (dual split), and II (backup power supply), ensuring safe power switching.

Multi operation modes: manual, electric, and automatic, suitable for different scene requirements.

Isolation function: It has a clear fracture surface, meets electrical isolation requirements, and ensures maintenance safety.

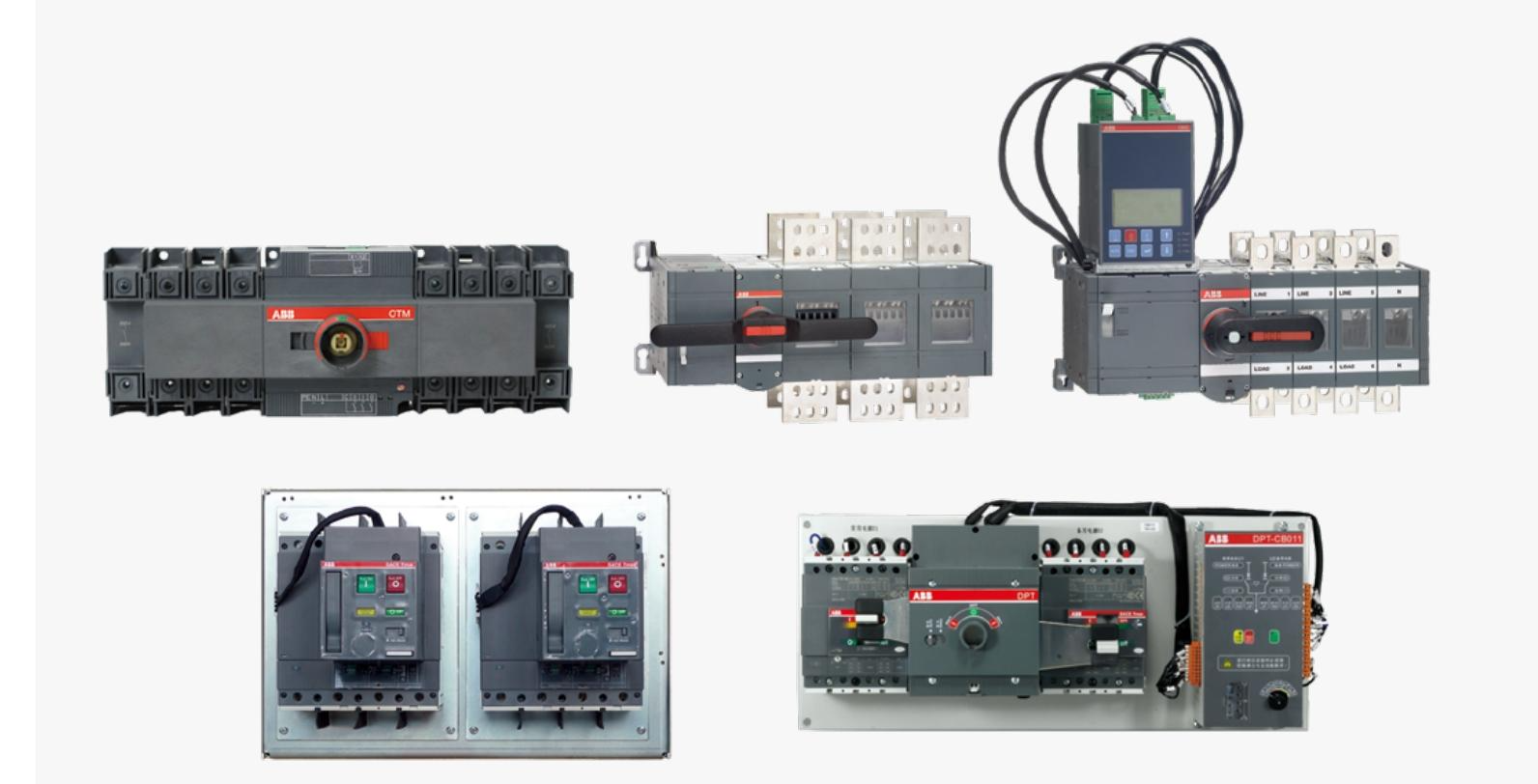

PC level dual power conversion switch (with isolation function as the core)

Product architecture and model series

Execution mechanism: It adopts an isolation switch that can connect and carry current, but does not have the ability to break short-circuit current, and maintains power supply continuity in case of overload.

Main models:

OT_C (manual type):

Model: OT16~2500E-C, rated current 16A~2500A, supports DIN rail installation, visible fracture, mechanical interlocking to prevent misoperation.

Features: The handle can be directly installed on switches or cabinet doors, and the O position supports padlock locking, suitable for communication base stations, power plant split screens, and other scenarios.

OTM-C (electric type):

Model: OTM32~2500E-C, rated current of 32A~2500A, supports electric operation and manual emergency operation.

Features: Equipped with a built-in clutch, manual operation is effortless, suitable for switching diesel generator power supply.

OTM-C_D (automatic type):

Model: Equipped with 20D/21D/21T/8D controllers, rated current of 32A~2500A.

Features: Supports automatic power detection, delayed switching, and communication functions, suitable for scenarios such as building power distribution and fire load.

Key technical parameters

Electrical performance:

Rated insulation voltage: up to 750V, rated impulse withstand voltage 8kV.

Short circuit capability: The rated limiting short-circuit current Ip is up to 100kA (415V), and the short-time withstand current Icw is up to 2.5kA (690V/1s).

Mechanical properties:

Mechanical lifespan: The OT_C series can withstand up to 16000 operations, while the OTM-C_D series can withstand 10000 operations.

Conversion time: Approximately 2.5 seconds without controller delay, meeting the requirement for fast switching.

Detailed explanation of controller functions

20D/21D controller:

Detection function: Voltage loss, undervoltage (0.7~0.95Ue), overvoltage (1.05~1.3Ue), phase loss.

Conversion logic: There are three modes: self switching and self resetting, mutual backup, and self switching but not self resetting, with adjustable delay of 0-30 seconds.

21T controller:

Added Modbus RTU communication interface, supporting remote monitoring and data transmission, suitable for intelligent substations.

8D controller:

Supports frequency detection (50/60Hz ± 10%), phase sequence detection, and bus coupling switching functions, and can record 20 fault messages.

CB level dual power automatic transfer switch (with protection function as the core)

Product architecture and model series

Execution mechanism: using circuit breakers (miniature circuit breakers/molded case circuit breakers), equipped with overcurrent release devices, capable of breaking short-circuit currents and protecting loads.

Main models:

DPT-CB010/011：

Integrated design, rated current 63A~250A, equipped with 010/011 controller, with a maximum breaking capacity of 85kA (220V).

Application: Building power distribution, lighting, and non critical load scenarios.

ATS-CB021：

Integrated design, rated current 400A~630A, equipped with ATS021/022 intelligent controller, with a maximum breaking capacity of 100kA (415V).

Application: High end scenarios such as industrial markets (metallurgy, petrochemicals), high-speed rail, and bus coupling switching.

Core protection function

Differential and grounding protection

Three phase differential protection (87T): including second harmonic/fifth harmonic braking and waveform recognition locking, automatically matching transformer vector group, supporting zero sequence current elimination, preventing misoperation of faults outside the area.

High/Low Impedance Grounding Protection (REF): The high impedance principle does not require a stable resistor, while the low impedance principle supports CT variable ratio inconsistent scenarios, with a sensitivity of up to 5% of the rated current.

Overcurrent and backup protection

Multi stage overcurrent protection (51/50): supports definite time (DT) and inverse time (IDMT) characteristics, with three-stage low setting, two-stage high setting, and instantaneous period, with an action accuracy of ± 2.5%.

Directional overcurrent protection (67): Based on phase voltage/line voltage polarization, it supports forward/reverse action direction and has strong resistance to load intrusion.

Voltage and frequency protection

Overvoltage/undervoltage protection (59/27): three-stage phase voltage protection, residual voltage protection (59N) adapted to ground faults, action time<66ms.

Overexcitation protection (24): Based on U/f ratio monitoring, two-stage alarm/trip to prevent magnetic core saturation.

Auxiliary protection

Thermal overload protection (49T): Dual time constant model, real-time monitoring of winding temperature, supporting RTD input (such as Pt100).

Circuit breaker failure protection (62BF): When detecting refusal to move, quickly trip adjacent circuit breakers with a response time of less than 20ms.

Measurement and monitoring functions

real-time

Support three-phase current/voltage, sequence component, power, frequency, and harmonic analysis (suppression -50dB), with a measurement accuracy of ± 0.5%.

RTD/Analog Module: 8 inputs (6 RTDs+2 mA), used for oil temperature and gear monitoring; 4-channel 0-20mA output, compatible with PLC system.

Fault recording and recording

Disturbance Recorder (MEDREC16): 16 analog signals+16 switch signals, supporting COMTRADE format, with a maximum recording time of 23.3 seconds.

Event and fault records: 512 time stamped events, 32 fault records (including peak/phase angle), non-volatile storage.

Status monitoring

Circuit breaker monitoring: monitoring spring energy storage, SF pressure, travel time, and supporting life prediction.

Circuit monitoring: Continuous monitoring of the tripping circuit, detecting disconnection or poor contact, with a response time of less than 40ms.

Control and Communication

Local and remote control

The front panel supports circuit breaker opening and closing, isolation switch position indication, and can be configured with dynamic single line diagram (HMI).

Remote control supports GOOSE horizontal communication to achieve protection interlocking and status synchronization.

Communication interface and protocol

Serial interface: RS-232/485, supports Modbus RTU/ASCII, DNP 3.0, IEC 60870-5-103.

Ethernet interface: 100Base TX/FX, supports SPA, LON bus, and IEC 61850-8-1 GOOSE (transmission time<3ms).

Time synchronization: SNTP, IRIG-B, with a time scale accuracy of 1ms, ensuring consistency of events across the entire network.
