Honeywell portable gas detection

Product Classification and Overview

This guide covers Honeywell's various portable gas detection products, mainly divided into single gas detectors, multi gas detectors, as well as supporting docking, testing and data management equipment, calibration testing and sampling equipment, aiming to provide safe, compliant and efficient solutions for gas detection in different scenarios.

Single gas detector

BW Clip Series

Gas detection: H ₂ S, CO, O ₂, SO ₂ (2-year warranty); H ₂ S, CO (3-year warranty).

General specifications: Size 1.6 x 2.0 x 3.4 inches, weight 3.2 ounces, typical battery life of 2 years (H ₂ S, CO, SO ₂ or O ₂) or 3 years (H ₂ S or CO).

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; Multiple certifications including Class I, Zone 0, Group IIC, etc.

Warranty: 2 or 3 years (under normal use) after activation, plus 1 year warranty (6 months for some models). The 2-year H ₂ S and CO detectors can be extended up to 3 years (limited to 24 months of detector operation time) when using the sleep function.

Features: Maintenance free operation for up to 3 years, no need for calibration, replacement of sensors and batteries. The 2-year H ₂ S or CO detector can extend its service life through a sleep box and is compatible with MicroDock II and IntelliDoX instrument management systems.

GasAlert Extreme

Detecting gases: H ₂ S, CO, CO-H, O ₂, SO ₂, NH ∝, PH ∝, Cl ₂, ClO ₂, NO, NO ₂, HCN, ETO, O3, etc.

General specifications: Size 1.1 x 2.0 x 3.75 inches, weight 2.9 ounces, typical battery life of 1.5 years.

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; Multiple certifications including Class II, Div. 1, Gr. E, F, G, etc.

Warranty: Full 2-year warranty (including sensors, Cl ₂, NH ∝, O3, ETO, and ClO ₂ sensors for 1 year).

Features: Compact and affordable, capable of monitoring multiple single gas hazards, battery and sensor replaceable on site, multiple tamper proof user options and multilingual display, data recording as standard configuration, easy calibration, compatible with MicroDock II automatic testing and calibration system.

Multi gas detector

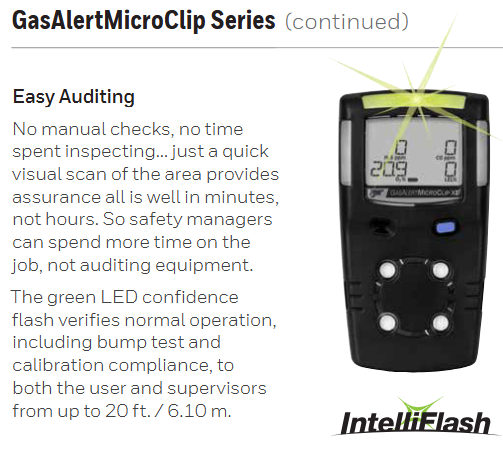

GasAlertMicroClip series

Detecting gases: H ₂ S, CO, O ₂ LEL。

General specifications: Size 4.4 x 2.4 x 1.2 inches, weight 6.7 ounces, operating temperature -4 to+122 ° F, typical battery life of 18 hours (less than 6 hours on charge).

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; ATEX: X g II 1 G Ex ia IIC T4 Ga, etc.

Warranty: GasAlertMicroClip XL comes with a full 2-year warranty (including sensors and batteries); GasAlertMicroClip X3 comes with a 3-year warranty (including all sensors).

Features: Easy to wear, slim and compact, GasAlertMicroClip X3 has longer battery life in cold weather, with green IntelliFlash ™ Blinking, one click operation reduces training time, compatible with MicroDock II and Fleet Manager II software.

BW Clip4

Detecting gases: H ₂ S, CO, O ₂ LEL。

General specifications: Size 4.7 x 2.7 x 1.3 inches, weight 8.2 ounces, operating temperature -4 to+131 ° F, typical battery life of 2 years (continuous operation).

Certification and approval: Class I, Div 1, Group A, B, C, D; Class I, Zone 0, Group IIC, etc.

Warranty: Full 2-year warranty (including all sensors).

Features: Easy to operate, "always on", no need to charge, replace batteries or sensors, low cost of ownership, backed by Honeywell's quality commitment.

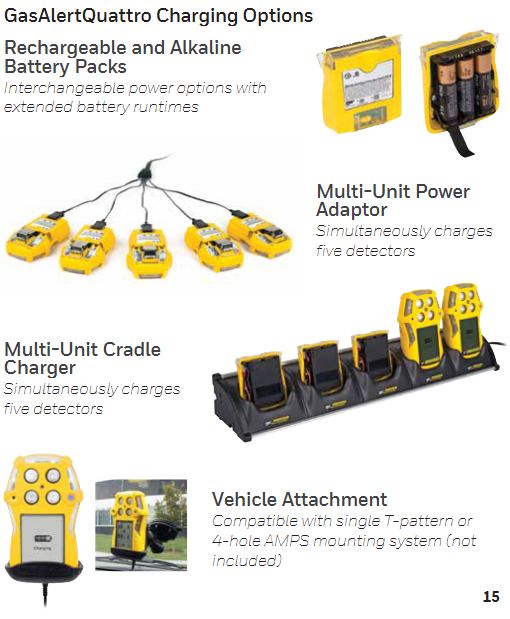

GasAlertQuattro

Detect gases: H ₂ S, CO, O ₂, LEL (1-4 gases).

General specifications: Size 5.1 x 3.2 x 1.9 inches, weight 11.15 ounces (with rechargeable battery pack) or 11.92 ounces (with alkaline battery pack), typical battery life AA alkaline battery 14 hours (+68 to 122 ° F), rechargeable battery 20 hours (+68 to 122 ° F), etc.

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; ATEX: X g II 1 G Ga Ex ia IIC T4 Ga, etc.

Warranty: Full 2-year warranty (including all sensors).

Features: Sturdy and reliable, one click operation, flexible power options, graphic LCD display with easily recognizable icons, IntelliFlash provides continuous visual confirmation, suitable for various industrial applications, compatible with MicroDock II system.

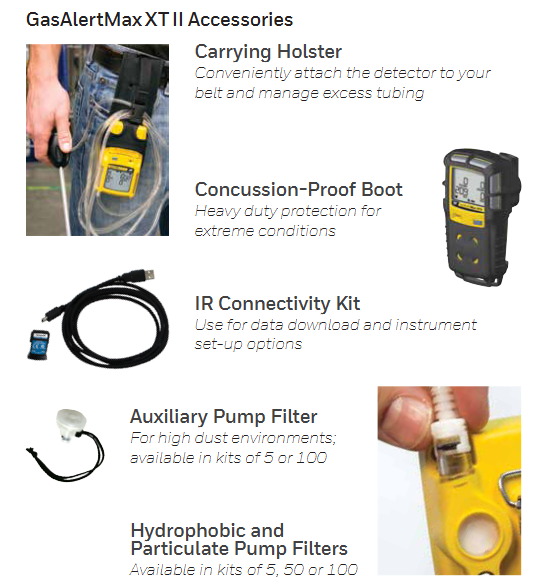

GasAlertMax XT II

Detect gases: H ₂ S, CO, O ₂, LEL (1-4 gases).

General specifications: Size 5.1 x 2.8 x 2.0 inches, weight 11.5 ounces, typical battery life of 13 hours (32 ° F), 8 hours (-4 ° F), and 6 hours of charging.

Certification and approval: IECEx: Ga Ex ia IIC T4; Class I, Div. 1, Gr. A, B, C, D, etc.

Warranty: Full 2-year warranty (including all sensors).

Features: Easy to operate, equipped with SmartSample pump, IntelliFlash flashing LED compliance indicator, reliable monitoring of multiple hazards, compatible with MicroDock II automatic testing and calibration system.

GasAlertMicro 5 Series

Detecting gases: VOCs, CO ₂, LEL, H ₂ S, CO, O ₂, SO ₂, PH ∝, NH ∝, NO ₂, HCN, Cl ₂, ClO ₂, O3, etc. (1-5 gases).

General specifications: Size 5.7 x 2.9 x 1.5 inches, weight 13.1 ounces, operating temperature -4 to+122 ° F (PID 14 to+104 ° F), typical battery life of 20 hours (PID/IR 15 hours).

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; ATEX: X g II 1 G Ga Ex ia IIC T4 *, etc.

Warranty: Full 2-year warranty (including sensors, Cl ₂, HCN, NH ∝, O ∝, ClO ₂, and PID sensors for 1 year).

Features: Compact and lightweight, with diffusion or pump suction capabilities, capable of monitoring and displaying multiple potential atmospheric hazards simultaneously. The GasAlertMicro 5 PID model can identify VOCs that can be detected by PID, and the GasAlertMicro 5 IR uses NDIR sensors to monitor CO ₂ levels. It has multiple on-site options that users can set and is compatible with the MicroDock II system.

Docking、 Testing and data management equipment

IntelliDoX Automatic Instrument Management System

General specifications: Size 5.4 × 14.2 × 4.3 inches (each docking module), weight 4.2 pounds, power supply 12V/8.33A ITE, external interface 1 USB port, 1 Ethernet port, pump flow rate 350 ml/min (each module has an independent pump).

Certification and approval: CSA/UL 61010-1 (3rd Ed), etc.

Warranty: Full 2-year warranty.

Features: Combining intelligent docking module and Fleet Manager II software to achieve automated instrument management, automatic testing and data transmission after placing detectors, fast collision testing, and the ability to combine multiple modules to improve efficiency. It can run online or independently.

MicroDock II Automatic Testing and Calibration Station

General specifications: Size 8.3 × 10.4 × 3.2 inches (base station with one docking module), power supply 6V wall adapter or 4 C-type batteries, external interface USB 2.0 interface, pump flow rate 400 ml/min.

Certification and approval: IEC 61010/C22.2 No. 61010, etc.

Warranty: Full 2-year warranty.

Features: Economical and efficient collision testing, calibration, charging, and record management, no need for computers, portable, expandable to 6 modules, storing and updating calibration records, automatic testing of sound and light alarms, including Fleet Manager II software.

Fleet Manager II software

Function: Provides comprehensive control over detector configuration and reporting, can adjust the activity of IntelliDoX or MicroDock II docking modules, adjust detector settings and alarm points, create reports, view history, archive data, manage records, etc.

Compatible devices: BW Clip series, GasAlert Extreme, GasAlertMicroClip series and other detectors, as well as MicroDock II, IntelliDoX.

Calibration, testing, and sampling equipment

Calibration and testing equipment

Calibration gas: There are various gas types, combinations, cylinder sizes, and concentrations.

Cylinder mounting bracket: available in fixed and adjustable versions, suitable for 34L and 58L gas cylinders.

Regulators: There are various demand flow regulators and calibration gas regulators.

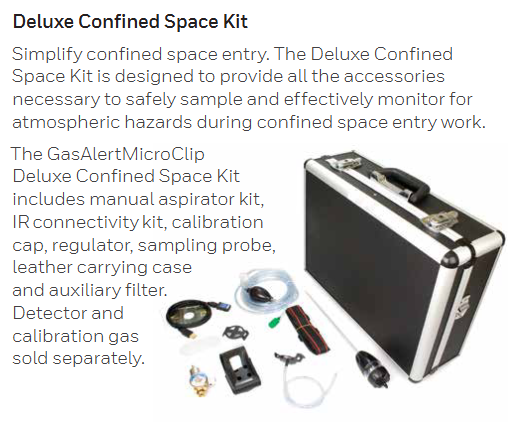

Sample Equipment

Manual suction pump: simplifies remote sampling.

Sampling probes and hoses: available in various styles, options, and lengths.

Sampling float: Sampling above the liquid surface.

Replace filters and parts: Keep the sampling equipment in good condition.
