ABB Kent Morrisey, Business Development Manager – Harmony Evolution NA Harmony Evolution Options For Process Industries Users

From:ABB | Author:Wang | Time :2025-01-03 | 501 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

ABB Kent Morrisey, Business Development Manager – Harmony Evolution NA Harmony Evolution Options For Process Industries Users

Strategy Remains the Same
Evolution Without Obsolescence
ƒNo product will be removed from
active sale until a compatible,
equivalent or superior product is made
available
ƒ Investment Protection
ƒ Intellectual Property
ƒ Capital Equipment

ƒ Incremental, stepwise execution

What has Changed?
Life Cycle Commitment
ƒPrevious Support commitment
Increased from 2025 to indefinitely
ƒ Active investment
ƒ New features and functions at all
levels of the system
ƒIntroduction of Symphony Plus
Product Name


Evolution Planning
On-going collaborative process
ƒIdentifies business needs, goals, and
priorities
ƒ Insight into process/system risk
areas
ƒResults in short and long term
roadmap
ƒ Continuous re-evaluation: business
needs and solutions
ƒ Recognition of new system
functionality and solutions that add
value
ƒ Known timing for evolution action
(2-5 years); assist budgeting process

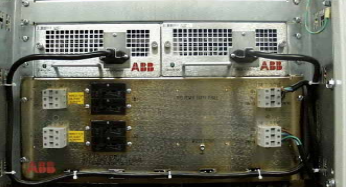

Power Supplies
Harmony Power Supply - MPSIII
ƒ Multi-Voltage DC Power System
ƒ System and Field Power
ƒ 2N and N+1 Configuration
ƒ System Monitoring
ƒ “Slide-in” Design
ƒ Evolution for Network 90,
MPS I (PMU), and MPS II Supplies


Product Family
Remarks
S800
S800 I/O is configured using Composer and standard function
blockware.

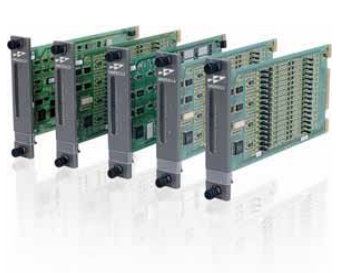

Harmony Rack
Represents the latest version of Harmony Rack I/O and includes:
(IMxxxxx)
IMASI23,IMASO11,IMCIS22,IMDSI13,IMDSI14,IMDSI22,
IMDSM04,IMDSO14, IMDSO15,IMFEC12,IMHSS03,IMQRS22,
IMSED01.&IMSET01.
Harmony Block
Transitioned to Limited in January 2011.Recommend evolution to
S800 I/O.
Exception:P-HB-IOR & P-HB-RMU, & P-HA-REP-RFOare
"active.”
Network 90l/O
Recommend evolution to the latest members of the Harmony Rack
(Nxxxxx)
I/O family(IMxxxxx).


Symphony Harmony
Comprehensive I/O system
ƒ Modular to meet varying I/O requirements
ƒ Local and remote I/O options
ƒ Rack and DIN I/O options
ƒ I/O Types
ƒ Analog Input
ƒ Analog Output
ƒ Pulse Input
ƒ Digital Input
ƒ Digital Output
ƒ Turbine Control
ƒ SOE timestamp resolution of +/- 1 msec across
the entire Harmony system
ƒ Rack Form Factor
ƒ Supports most existing Net 90 and INFI 90
Modules
ƒ Designed for centrally located I/O
ƒ Current version available for most I/O types
ƒ Non Redundant
ƒCabinet Power system required
ƒ Flexible terminations
ƒ DIN Rail Form Factor

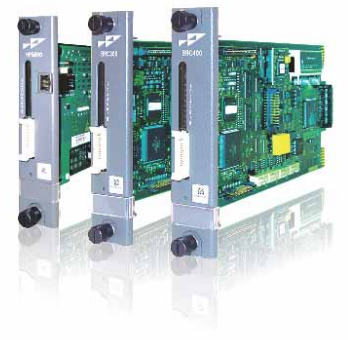

ƒ Functions with BRC controllers and
IOR Gateway
ƒ Ideal for Remote I/O Applications
ƒ Flexibility to Expand I/O Capacity
ƒ Redundant I/O Capability
ƒ 24VDC Power
ƒ Intrinsic safety applications
ƒ Smaller footprint
ƒ Flexible mounting and terminations
ƒ Improved Ability to “Force” I/O
