ABB SYNCHROTACT® upgrade Keep your assets synchronized, safe and productive

From:ABB | Author:Wang | Time :2025-01-06 | 454 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

ABB SYNCHROTACT® upgrade Keep your assets synchronized, safe and productive

e and productive
For more than 50 years,
SYNCHROTACT® has protected
power plant generators and
substations from the potentially
destructive effects of current
surges caused by paralleling in
non-synchronized conditions.
Upgrade to the latest device in the
SYNCHROTACT family to keep the
energy flowing, your equipment
productive and people safe.

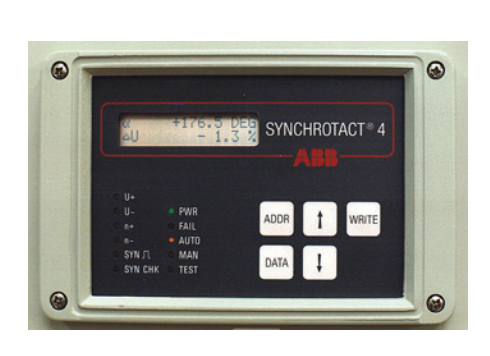

ABB’s SYNCHROTACT 4 device exited production in
2010 and is in the limited phase of its life cycle.
Inventory of spares and device availability cannot be
guaranteed at this stage. Securing the plant life cycle
by retrofitting to the SYNCHROTACT 6 will keep
assets productive, safe and reliable.
Upgrade benefits
• Long-term availability of parts
• Minimum shutdown and commissioning time: the
SYNCHROTACT 6 has similar mechanical
installation dimensions and the same electric
control concept as its predecessor
• Long-term availability of engineering and support
competences, including 24/7 telephone support
Launched at the beginning of 2018, SYNCHROTACT 6
is the sixth generation of ABB’s proven and popular
synchronizing technology. Over 22,000
SYNCHROTACT units have been sold since its
introduction, more than any other synchronizer on
the market.
The SYNCHROTACT portfolio is the most
comprehensive on the market, extending from the
smallest to the largest power requirements and

covering all power generation applications.

Typical applications
• Power plants with machines of any type
up to 2000 MW
• Thermal power plants (diesel, gas, steam),
including combined cycle and nuclear power
• Hydropower plants, including pumped storage
• Industrial plants with own power generation
• Grid paralleling in substations and islanded
power networks
• Large AC motors, soft-started and running above
nominal speed by means of a drive and then
synchronized during coast down

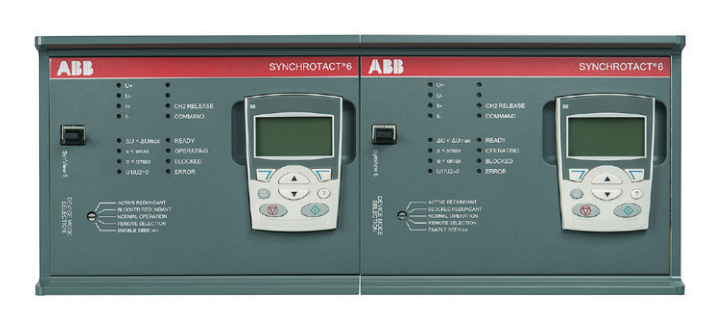

SYNCHROTACT 6 features
• The latest generation has two diversely
constructed channels in the same device. The
channels operate with different hardware and
software, to minimize the danger of a systematic
error. They also monitor each other
• State-of-the-art communication protocols,
including IEC 61850 Ed. 2, offers a choice between
an electrical or optical interface
• IEC 60255-26, IEC 60255-27 and ANSI/IEEE C37.90
product standards for protection and measuring
relays
• The unit’s robust design is in accordance with the
IEC 61508 SIL2 safety integrity level
—

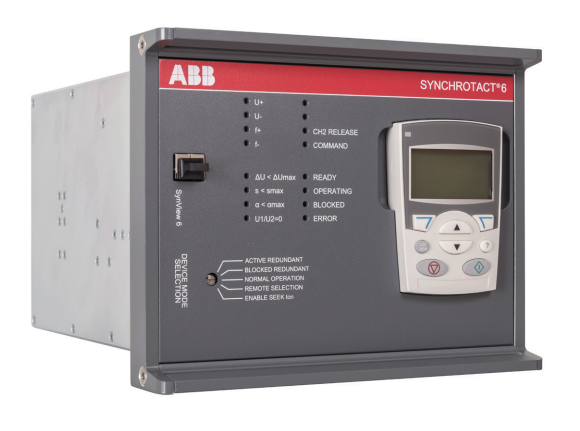

SYNCHROTACT 6
—
We reserve the right to make technical changes
or modify the contents of this document
without prior notice. With regard to purchase
orders, the agreed particulars shall prevail.
ABB AG does not accept any responsibility
whatsoever for potential errors or possible
lack of information in this document.
We reserve all rights in this document
and in the subject matter and illustrations
contained therein. Any reproduction,
disclosure to third parties or utilization
of its contents – in whole or in parts – is
forbidden without prior written consent
of ABB AG.
Copyright© 2018 ABB
All rights reserved
—
ABB Switzerland Ltd
Synchronizing Equipment and
Excitation Systems
Austrasse
CH-5300 Turgi, Switzerland
abb.com/synchrotact
Upgrade today
Electronic devices have a shorter life expectancy
than plant electrical and mechanical equipment,
upgrading your SYNCHROTACT 4 to SYNCHROTACT
6 will keep your valuable production assets safe and
at the highest levels of availability.
In order to know which model of the SYNCHROTACT
6 device is best suited for your application, simply
provide your sales representative with pictures of
the front and back of the SYNCHROTACT 4 and your
plant drawings of the synchronizing system (if
available). We’ll be happy to discuss the upgrade
opportunity and quotation with you.
Contact us for more information!
