ABB Distributed busbar protection REB500

• Low-impedance busbar protection

• Stub and T-zone protection

• High functional reliability due to two independent measurement criteria:

- stabilized differential current algorithm

- directional current comparison algorithm

• Phase-by-phase measurement

• Reduced CT performance requirements

• High through-fault stability even in case of

CT saturation

• Full solid-state busbar replica

• No switching of CT circuits

• Only one hardware version for

- 1 and 5 A rated currents

- all auxiliary supply voltages between

48 V DC and 250 V DC

- nominal frequencies of 50, 60 and

16.7 Hz

• Short tripping times independent of the

plant’s size or configuration

• Centralized layout: Installation of hardware

in one or several cubicles

• Distributed layout: Bay units distributed

and, in the case of location close to the

feeders, with short connections to CTs, isolators, circuit breakers, etc.

• Connections between bay units and central

unit by fiber-optic cables

- maximum permissible length 1200 m

- for distributed and centralized layout

• fiber-optic connections mean interferenceproof data transfer even close to HV power

cables

• Replacement of existing busbar protection

schemes can be accomplished without restrictions (centralized layout) in the case of

substation extensions e.g. by a mixture of

centralized and distributed layout

• Easily extensible

• User-friendly, PC-based human machine

interface (HMI)

• Fully numerical signal processing

• Comprehensive self-supervision

• Binary logic and timer in the bay unit

• Integrated event recording

• Integrated disturbance recording for power

system currents

• A minimum of spare parts needed due to

standardization and a low number of varying units

• Communication facilities for substation

monitoring and control systems via

IEC 61850-8-1, IEC 60870-5-103 and LON

• IEC 62439 standard redundant station bus

communication

• IEC 61850-9-2 LE process bus communication

• Cyber security to support

- User Access Management

- User Activity Logging

Options

• Breaker failure protection (also separately

operable without busbar protection)

• End fault protection

• Definite time overcurrent protection

• Breaker pole discrepancy

• Current and voltage release criteria

• Disturbance recording for power system

voltages

• Separate I0 measurement for impedancegrounded networks

• Communication with substation monitoring

and control system (IEC 61850-8-1 /

IEC 60870-5-103 / LON)

• Internal user-friendly human machine interface with display

• Redundant power supply for central units

and/or bay units

Additional

main features

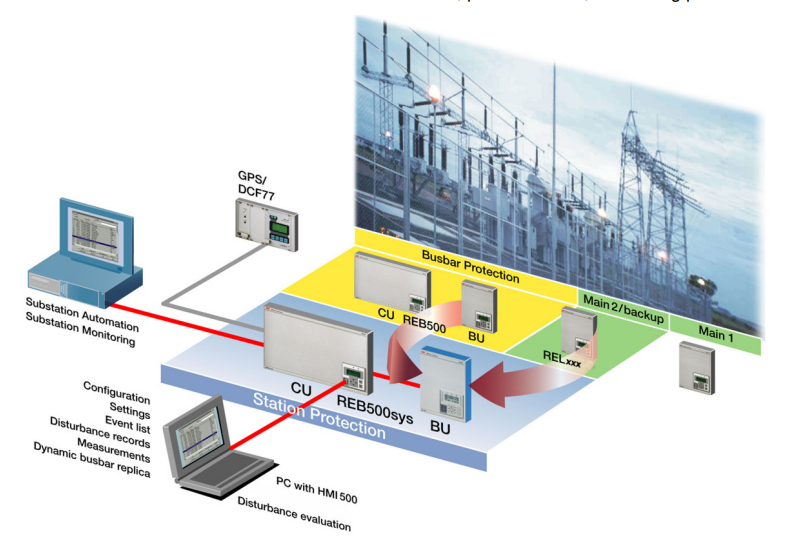

REB500sys combines the well-proven numerical busbar and breaker failure protection

REB500 of ABB with Main 2 or back-up protection for line or transformer feeders. The

Main 2 / Group 1 or back-up protection is

based on the well-proven protection function

library of ABB line and transformer protection

for 50, 60 and 16.7 Hz.

Main 2 / back-up bay protection

• Definite and inverse time over- and undercurrent protection

• Directional overcurrent definite and inverse

time protection

• Inverse time earth fault overcurrent protection

• Definite time over- and undervoltage protection

• Three-phase current and three-phase volt age plausibility

Main 2 / back-up bay protection:

Line protection

• High-speed distance protection

• Directional sensitive earth fault protection

for grounded systems against high resis tive faults in solidly grounded networks

• Directional sensitive earth fault protection

for ungrounded or compensated systems

• Autoreclosure for

- single-pole / three-pole reclosure

- up to four reclosure sequences

• Synchrocheck with

- measurement of amplitudes, phase

angles and frequency of two voltage

vectors

- checks for dead line, dead bus, dead

line and bus

Group 1 / back-up bay protection:

Transformer protection

• High-speed transformer differential protec tion for 2- and 3-winding and auto-trans formers

• Thermal overload

• Peak value over- and undercurrent protec tion

• Peak value over- and undervoltage protec tion

• Overfluxing protection

• Rate of change frequency protection

• Frequency protection

• Independent T-Zone protection with trans former differential protection

• Power protection

Application REB500

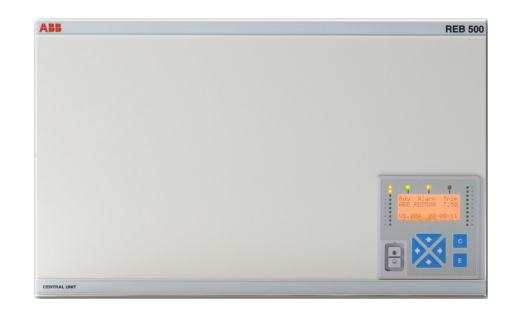

The numerical busbar protection REB500 is

designed for the high-speed, selective protec tion of MV, HV and EHV busbar installations

at a nominal frequency of 50, 60 and 16.7 Hz.

The structure of both hardware and software

is modular enabling the protection to be easily

configured to suit the layout of the primary

system.

The flexibility of the system enables all config urations of busbars from single busbars to

quadruple busbars with transfer buses, ring

busbars and 1½ breaker schemes to be pro tected.

In 1½ breaker schemes the busbars and the

entire diameters, including Stub/T-Zone can

be protected. An integrated tripping scheme

allows to save external logics as well as wir ing.

The capacity is sufficient for up to 60 feeders

(bay units) and a total of 32 busbar zones.

The numerical busbar protection REB500

detects all phase and earth faults in solidly

grounded and resistive-grounded power sys tems and phase faults in ungrounded systems

and systems with Petersen coils.

The main CTs supplying the currents to the

busbar protection have to fulfil only modest

performance requirements (see page 18). The

protection operates discriminatively for all

faults inside the zone of protection and

remains reliably stable for all faults outside the

zone of protection.

REB500sys

The REB500sys is foreseen in MV, HV and

EHV substations with nominal frequencies of

16.7, 50 Hz or 60 Hz to protect the busbars

and their feeders. The bay protection func tions included in REB500sys are used as

Main 2 / Group 1 - or back-up protection.

The system REB500sys is foreseen for all sin gle or double busbar configurations (Line vari ants L-V1 to L-V7 and Transformer variant T V1 to T-V4). In 1½ breaker configurations,

variant L-V5 can be used for the bay level

functions autoreclosure and synchrocheck.

The capacity is sufficient for up to 60 feeders

(bay units) and a total of 32 busbar zones.

The REB500sys detects all bus faults in sol idly and low resistive-grounded power sys tems, all kind of phase faults in ungrounded

and compensated power systems as well as

feeder faults in solidly, low resistive-grounded,

compensated and ungrounded power sys tems.

The protection operates selectively for all

faults inside the zone of protection and

remains reliably stable for all faults outside the

zone of protection.

REB500sys is perfectly suited for retrofit con cepts and stepwise upgrades. The bay unit is

used as a stand-alone unit for bay protection

functions (e.g. line protection, autoreclosure

and synchrocheck or 2- and 3 winding trans former protection or autonomous T-zone pro tection). The central unit can be added at a

later stage for full busbar and breaker failure

protection functionality

the protection philosophy the following protection concepts are generally applied:

• Two main protection schemes per bay

and one busbar protection.

With REB500sys the protection concept

can be simplified. Due to the higher integration of functionality one of the main protection equipment can be eliminated.

• One main protection and one back-up

protection scheme per bay, no busbar

protection.

With REB500sys a higher availability of the

energy delivery can be reached, due to the

implementation of busbar and breaker failure protection schemes where it hasn't

been possible in the past because of economical reasons.

Nine standard options are defined for Main 2/

Group 1 or back-up bay level functions:

Line protection

- Line variant 1 (L-V1)

directional, non-directional overcurrent and

directional earth fault protection

- Line variant 2 (L-V2)

as line variant L-V1 plus distance prot.

- Line variant 3 (L-V3)

as line variant L-V2 plus autoreclosure

- Line variant 4 (L-V4)

as line variant L-V3 plus synchrocheck

- Line variant 5 (L-V5)

as line variant L-V1 plus autoreclosure and

synchrocheck.

- Line variant 6 (L-V6) for 16.7 Hz

non-directional overcurrent, distance protection, autoreclosure.

- Line variant 7 (L-V7) for 16.7 Hz

as line variant L-V6 plus directional earth

fault protection for grounded systems

Transformer protection

- Transformer variant 1 (T-V1)

2- or 3 winding transformer differential protection, thermal overload, current functions;

applicable also as autonomous T-zone protection.

- Transformer variant 2 (T-V2)

2-winding transformer differential protection, thermal overload, current functions,

overfluxing protection, neutral overcurrent

(EF).

- Transformer variant 3 (T-V3)

Distance protection for transformer back-up

or 2-winding transformer differential protection, thermal overload, current functions,

voltage functions, frequency functions,

power function, overfluxing protection.

- Transformer variant 4 (T-V4)

Transformer oriented functions/ back-up

functions -> thermal overload, current functions, voltage functions, frequency functions, power function, overfluxing protection.

上一篇： ABB Vapor ......

下一篇： ABB SYNCHR......

Pilz PZE 9 Safety Relay Industrial Machine Safety Control Module Emergency Stop Monitoring Unit for Automation Protection Systems
Braids PLC-60/75 /E2UK Industrial Control Cable 25 Meters High Performance PLC Wiring Cable for Automation and Control Systems
OMRON C60H-C5DR-DE-V1 Industrial PLC Controller Programmable Logic Control Unit for Factory Automation and Machine Control Systems
TE.CO TFX 4G10 Grey Industrial Power Cable 100m UNEL Rated PVC Sheathed Multi-Core Control Cable for PLC Automation Systems
OMRON FQM1-MMA22 Multi-Axis Motion Control Module Industrial PLC Servo Coordination Unit for Precision Automation Systems
OMRON C120-LK202-EV1 3G2A6-LK202-EV1 PLC Communication Link Module Industrial Automation Network Expansion Interface Unit
Inovance AC810-0122-U0R0 Industrial PLC Controller AC810 Series Automation Control Unit for Advanced Manufacturing Systems
Schneider TSXMRPC007M PLC PCMCIA Memory Card Industrial Program Storage and Data Backup Module for Automation Systems
Schneider BMXNRP0200 Modicon M340 PLC Communication Module Industrial Ethernet Network Expansion Unit for Automation Systems
OMRON Z4M-T30V2 Z4M-H30V Laser Displacement Sensor High Precision Industrial Measurement System for Automation Control
Honeywell EC7850A1080 Programmable Logic Controller Industrial Automation Control Module for Process and System Management
Allen Bradley 1336E-BRF30-AA-EN-HA2-L5 1336 Impact AC Drive Industrial Variable Frequency Drive for Advanced Motor Control
OMRON 3G3MX2-A4110-ZV1 3G3MX2-A4150-ZV1 MX2 Series Inverter Industrial Variable Frequency Drive for Precision Motor Control
PILZ 570640 PSEN SL-1.0P Safety Switch Industrial Guard Monitoring and Machine Protection Device
LMX06-NS05 Industrial Sensor High Precision Detection and Measurement Module for PLC Automation Systems
OMRON NX-SID800 Digital Input Module 8 Channel PNP 24VDC NX Series PLC Industrial Control System
XML2-0060-45-4/S-A DeltaOmega Servo System Industrial Motion Control Engine with BRDE300S 2.5T High Precision Automation Solution
HMS Anybus AB7646-F Gateway Industrial PLC Communication Converter 24VDC Networking Module
OMRON CV2000-CPU01-EV1 SYSMAC PLC CPU Unit Industrial Automation Controller Module
OMRON 3G3HV-A4022-CE Inverter 400V 2.2KW Industrial Variable Frequency Drive for Motor Speed Control
HARRIS 8800-00002-02 Power Control Center Industrial PLC Power Distribution and Automation Control System Module
Allen-Bradley 440R-EM4R2 GSR EM Safety Relay PN-94113 Industrial Machine Safety Control Module
YASKAWA SGMAH-02AAA61D-0Y Servo Motor 200W 200V High Precision Industrial Motion Control Solution
SIEMENS 6GK7243-1BX30-0XE0 Industrial Ethernet Communication Processor for S7-200 PLC Networking and Data Integration
Square D PowerLogic CM4000T Circuit Monitor Industrial Power Quality Analyzer Electrical Energy Monitoring System 240VAC 300VDC PLC Integration Unit
Omron CS1W-V600C12 Industrial Communication Module RFID Data Interface Unit CS1 Series PLC Automation System Expansion Module
Schneider Electric METSEPM8243 Power Meter Industrial Energy Monitoring System PowerLogic Network Analyzer PLC Electrical Measurement Unit
Parker IQAN-XS2 Industrial Controller Module Hydraulic Automation System Mobile Machine Control Electronic PLC Integration Unit
FANUC A16B-3200-0521 CNC Main Board Industrial Control PCB Module Machine Tool Automation System High Precision Motion Controller Unit
Omron Yaskawa R7A-CEA005S Servo Cable SmartStep Industrial Motor Connection Cable PLC Servo Drive Wiring High Precision Motion Control Cable
Siemens 3RT5045-1BB40 Industrial Contactor 3RT Series High Power Motor Control Switching Device Electrical Automation System Module
Square D 8536SCG3V02S Industrial Motor Starter System Heavy Duty Magnetic Starter Control Unit Overload Protection Electrical Automation Device
TE.CO TFX 4G10 Grey Industrial Cable 100m UNEL Certified Power Cable with Reel Control Wiring PLC Industrial Electrical Distribution Cable
Edwards C41901000 24V Valve Control Module Industrial Pneumatic Actuation System PLC Automation Solenoid Valve Driver Unit
Omron CJ1W-PTS51 PLC Temperature Input Module Industrial CJ Series Signal Acquisition Unit Automation Control Expansion Module
Mitsubishi MELSEC A1S PLC System A1S63P A2ASCPU A1SJ71AR21 A1SX81 Industrial Automation Control Rack Module Complete PLC Architecture
Siemens 6SL3210-1SE21-8UA0 PM340 Power Module Industrial Drive System Frequency Converter High Efficiency Motor Control Automation Unit
Samsung CSDJ-10BX2 Servo Drive 220V 1KW Industrial Motion Control Module High Precision PLC Integrated Servo Motor Driver System
Allen-Bradley 100E400E 3P 400A Industrial Power Contactor 220kW High Voltage Electrical Switching PLC Interface Control Unit
Banner DET-Q45U-LIU64-ACR Ultrasonic Sensor Industrial Non-Contact Distance Measurement Detection Device PLC Automation Proximity Control Module
Robosystem IOG4AX-HD-100 Industrial PLC I/O Module High Density Automation Control Interface Board Signal Expansion Unit
Honeywell 30751044-008 PLC Control Board Industrial Automation Control Module ROM Card Industrial Process Control System Unit
Siemens 3TK2834-1BB40 Safety Relay Dual Channel Industrial Machine Protection Safety Control Module 24V DC Automation Safety System Device
Schneider LC1F500P7 Power Contactor 500A Industrial High Current Motor Control Switching Device 230V AC Electrical Distribution Module
Omron CS1G-CPU65-EV1 PLC CPU Unit Industrial Automation Controller CS Series Programmable Logic Control System Core Module
GE Fanuc SGHA36AT0400 Servo Drive Module High Precision Industrial Motion Control System Automation Drive Unit for PLC Applications
General Electric DS3800NEPB1F1E Power Excitation Board Industrial Turbine Control System GE Mark IV Generator Regulation Module
Inductotherm 170-8031 PLC Control Module Industrial Furnace Control System Automation Interface Board 1708031 High Reliability Control Unit
Allen-Bradley 1771-IJ Encoder Counter Module TTL Industrial PLC Motion Feedback and Position Control Interface Unit
IDEC FS1A-C21S Safety Controller Industrial PLC Safety Module for Machine Protection and Automation Safety Systems
HSD PE323 PLC Module Industrial Automation Control Board High Performance Programmable Logic Controller Expansion Unit
Omron NT15S-SF121B-E Industrial HMI Touch Panel Operator Interface for PLC Automation Control Systems
ABB IRB 6700 3HAC046046-003 - Rot. AC Motor Including Power Supply
ABB SDCS-PIN-21 - High-Performance Power Interface Card
ABB DSQC431 3HNA024203-001 - Servo Driver, Advanced Motion Control Module
ABB 3BHE022294R0103 - GFD233 GF D233A - Interface Module, Precision Automation Solution
ABB SDCS-PIN-48 | 3BSE004939R2 - Pulse Transformer Board
ABB DSQC662 3HAC026254001 - Precision Power Distribution Unit for Advanced Control Systems
ABB IRB 6700 - 3HAC055435-001, 3HAC045063-001, 200/150, 3HAC045067-001 - Industrial Robot
ABB PNI800 - Plant Network Interface Module: Industrial Control, High-Performance Networking Solution
ABB FS300R17KE3/AGDR-76 - EUPEC Power Module
ABB SDCS-POW-1 - DCS Module
ABB BDPS-11C | 3AXD50000000051 - Power Supply Module
ABB 86AR 230V-M30 - Inverter, for Industrial Control Applications
ABB NPOW-43C - Industrial Motherboard, High Performance for Factory Automation
ABB CAP-MOTOR - Circuit Board: High-Performance Motor Control Solutions
ABB 83SR11E GKWE8559000200 - High-Performance Industrial Control Module
ABB HIEE305089R0001 UNC4674B - High Performance Local Bus Interface for Industrial Automation
ABB SNAT7640 - 3BSE003195R1 - Advanced Control Interface & Display System
ABB PM590-ETH - Industrial PLC Automation CPU
ABB CI810A - Industrial Automation Module, Precision & Reliability
ABB SPIIT13 - Infi-Net Transfer Module: Advanced Networking Solution for Industrial Automation
ABB PM867K02 3BSE081638R1 - Redundant Processor Unit
ABB 3BHE014658R0101 - High-Performance PC Board for Industrial Automation
ABB DSQC625 3HAC020464-001 - Advanced Computer Power Supply for Industrial Control
ABB A12-30-22 | 1SBL161001R8022 - Contactor, Industrial Control Solutions
ABB 5SHX 19L6010 - Industrial Frequency Converter
ABB SAFT175RDO - Relay Output Board - Advanced Industrial Control Solution
ABB AO523 1SAP250200R0001 - Precise Control Solutions for Industrial Automation
ABB 3HAC021350-001 - Motor with Pinion, Precision Drive System
ABB 3HAC023325-001 - Industrial Control System Module
ABB 1TGE102009R4800 - Basic Modbus TPC+Serial/RS 485 Control Panel
ABB SNAT602TAC - Circuit Board, Control Module for Advanced Automation Systems
ABB SNAT602 TAC - Interface Board - Advanced Automation Solution
ABB IPMON01 - MPSII Power Monitor Module
ABB SCR-1SDA063550R1 - Advanced Shunt Closing Release for Medium Voltage Circuits
ABB 3BHE036290R0001 - Advanced Gate Drive Unit for Industrial Control Systems
ABB TB806 - Bus Inlet - Advanced PLC Module for Industrial Automation
ABB GJR2395400R1010 | 83SR06C-E - Control Module - Advanced Industrial Automation Solution
ABB 3HAC020487-001 - Gear Z4 / 5 Automation Components
ABB INICT03A - Computer Transfer Module: Industrial Automation Solutions
ABB 3HAC028702-001 - Advanced Control Module for Industrial Automation
ABB 7760690157 - Power Supply Module, Industrial Automation
ABB PM902F - Standard CPU Module, for Industrial Control Solutions
ABB NGPS-12 | 857803 & 857804C - Brand New, Designed for High-Efficiency Control Solutions
ABB S200-OE4 - 4-Channel Analog Output Module for Industrial Control Systems
ABB 086363-001 - Control
ABB 3HAC Series - Comprehensive Control Module IRB4600
ABB 3HAC023566-001 - High-Performance Industrial Control Module
ABB SPCJ4D34-AA - Processor Module - Industrial Control Solutions
ABB 3HAC022997-001 - Industrial Control Module
ABB DSQC626 - Modular Input/Output for Industrial Automation
ABB DO820 - High-Precision Digital Output Relay Module for Industrial Control Solutions
ABB REF615E-E - Feeder Protection & Control Relay, Designed for Enhanced Safety and Efficiency
ABB 086363-001 - Control Module: Advanced Automation Solution
ABB MEM86-3*192 - High-Performance CMBMR3 Memory Board
ABB IRB2600 3HAC046601-001 - Industrial Servo Motor
ABB BRC300 PHCBRC30000000 - Bailey Infi 90 Bridge Controller: Advanced Automation for Industrial Applications
ABB PCI2000PFB - High Performance Industrial Control Module
ABB TB511-ETH-XC 1SAP311100R0270 - Terminal Base Detection System
ABB TU532-XC 1SAP417000R0001 - PLC Systems: Advanced Automation Solutions
ABB ACX550-U0-04A1-4+P901 - Motor Drive, High Efficiency & Robust Industrial Automation
ABB 3BHE036342R0101 XD D501 A101 - Main Board for Industrial Automation
ABB CBRC-51 - High-Performance Frequency Converter Accessories, Industrial Control
ABB CI869K01 - Advanced AF100 Communication Interface Module
ABB 81AA10E GJR2370200R1100 - Input Module Universal
ABB IRB7602-33HAC058991-004 IRC5 DSQC601 3HAC12815-1 - Industrial Control Modules
ABB DX571 - Digital I/O Module: Advanced Control Solution for Industrial Automation
ABB 3HAC029030-001 IRB4600 IRB6700, 3HAC043500-003 IRB67003, IRB67003-43, HAC045128-004 - Advanced Robotics Control Solutions
ABB 3HAC020434-001 - Innovative Robot Control Module
ABB 1KHL015107R0001 P4LR - Advanced Industrial Control Module
ABB 3BHL000390P0104 & 5SHX1960L0004 - IGCT MODULE: Advanced Industrial Control Solution
ABB A0810V2 - Analog Output Module, 8 Channels - Precision Control for Industrial Automation
ABB FPR3471100R1002 CS31 NCC485 - Industrial Converter
ABB IPSYS01 - System Power Module: High-Performance Power Solution for Industrial Automation
ABB 3HAC033388-001 IRB6640 | 3HAC057980-007 IRB6640 | 3HAC057980-004 IRB6640 - Industrial Control Modules
ABB DSTA131 57120001-CV/1 - Analog Input Connection Unit for PLC
ABB 3HAB5760-1 - Servo Motor, High Performance, Precision Control
