BENTLY 3500/15 AC and DC Power Supplies

From: | Author:Wang | Time :2025-12-30 | 553 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

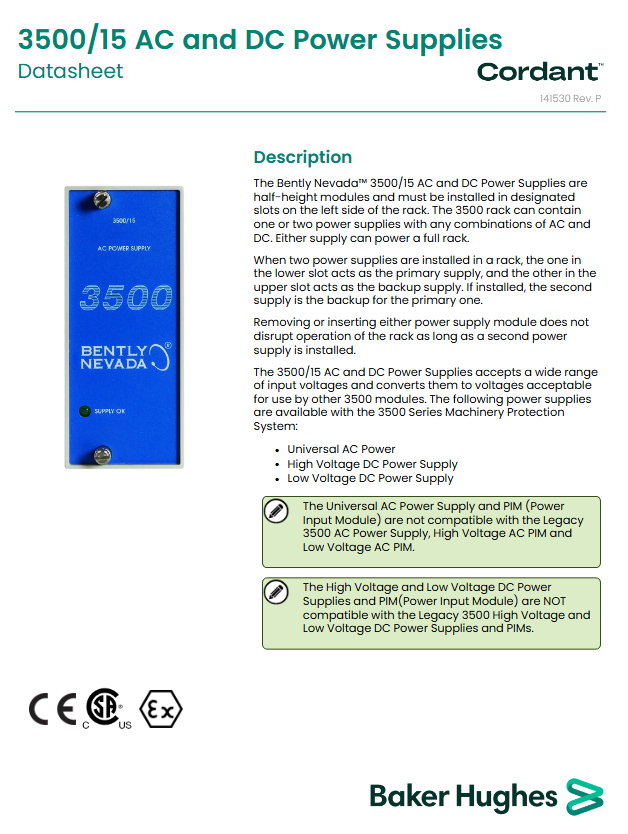

BENTLY 3500/15 AC and DC Power Supplies

Product positioning and core features

Product positioning: The matching power module for Bently Nevada 3500 series mechanical equipment protection system provides stable power supply for other modules in the series and supports single rack full load operation.

Core features:

Installation form: Half height module, to be installed in the designated slot on the left side of the rack, supporting 1 (single power supply) or 2 (redundant) module configurations, with the lower slot module as the main power supply and the upper slot as the backup power supply;

Hot plug compatibility: Under redundant configuration, plugging or unplugging any module will not interrupt the operation of the rack;

Status indicator: The "Supply OK LED" light on the front panel indicates that the power supply is working properly;

Load requirements: No minimum rack load limit, adaptable to different configuration requirements.


Key specification parameters

(1) Input parameter table

Input Type Voltage Range Frequency Range Full Rack Maximum Current

General AC non hazardous area: 85-264 Vac rms; Dangerous zone: 85-250 Vac rms (peak 120-373 Vac) 47-63 Hz 2.8 A rms

High voltage DC 88-140 Vdc -2.5 A

Low voltage DC 20-30 Vdc -11.0 A

(2) Physical and Environmental Parameter Table

Project Power Module Specification Power Input Module (PIM) Specification

Dimensions (height x width x depth) 120.7 mm x 50.8 mm x 251.5 mm (4.75 x 2.0 x 9.9 in) 120.7 mm x 25.4 mm x 114.3 mm (4.75 x 1.0 x 4.5 in)

Weight 1.39 kg (3.06 lb) 0.34 kg (0.75 lb)

Working temperature -30 ° C to+65 ° C (-22 ° F to+150 ° F) is consistent with the power module

Storage temperature -40 ° C to+85 ° C (-40 ° F to+185 ° F) is consistent with the power module

Humidity 95%, non condensing, consistent with power module

(3) Protection function

Undervoltage protection: When the input voltage is below the range, the power module and PIM are not damaged;

Overvoltage protection: When the input voltage exceeds the range, the fuse on the PIM will melt, protecting the equipment;

Status indication: Use the front-end "Supply OK LED" to visually determine the power supply's working status.

Installation and compatibility

Installation requirements:

Power module: There are 2 half height slots on the left side of the rack, which can accommodate 1 module per slot and support redundant configuration;

PIM module: a dedicated half height module that needs to be installed directly behind the corresponding power module and cannot be mismatched;

Compatibility limitations:

New and old models are incompatible: Universal AC power supply/PIM is incompatible with legacy high/low voltage AC units; The new high/low voltage DC power supply/PIM is not compatible with the legacy corresponding unit;

No load limit: No minimum rack load is required for normal operation.

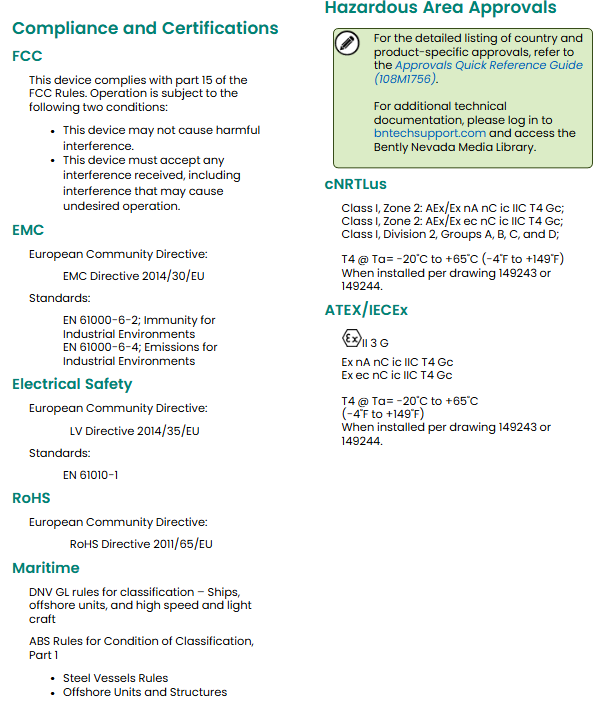

Certification and Compliance

Core certification:

FCC: Compliant with Part 15 regulations, free from harmful interference and tolerant to interference;

EMC: Compliant with EU Directive 2014/30/EU, EN 61000-6-2 (industrial immunity), EN 61000-6-4 (industrial emissions) standards;

Electrical safety: comply with the EU 2014/35/EU Low Voltage Directive and EN 61010-1 standard;

Environmental Protection: Compliant with RoHS 2011/65/EU Directive;

Hazardous areas: ATEX/IECEx certification (II 3 G Ex nA nC ic IIC T4 Gc, etc.), CSA/NRTLus certification (Class I, Zone 2/Division 2);

Maritime/Offshore: Complies with DNV GL and ABS classification society rules.


Ordering and spare parts information

(1) Model coding rules (3500/15-AA-BB-CC)

Encoding segment meaning, optional values, and description

AA slot power supply types 03 (legacy high voltage DC), 04 (legacy low voltage DC), 05 (universal AC), 06 (high voltage DC), 07 (low voltage DC)

BB slot power supply type 00 (no power supply), 03/04/05/06/07 (same as AA option)

CC certification types 00 (no certification), 01 (CSA/NRTL/C, Class 1, Division 2)

(2) Key spare parts list

Spare part name, part number, and remarks

General AC power module 106M1079-01-

Universal AC PIM 106M1081-01-

High voltage DC power module 114M5329-01 non legacy model

Low voltage DC PIM 114M5335-01 non legacy model

Universal AC PIM replacement fuse 120M3877 fast melting, 5A/500Vac, size 6.3 × 32mm

Power module blank front panel 131150-01 with screws, 1 piece installed

PIM replacement connector (DC) 118M0915-02-

Power User Manual 129767 3500/15 Special
