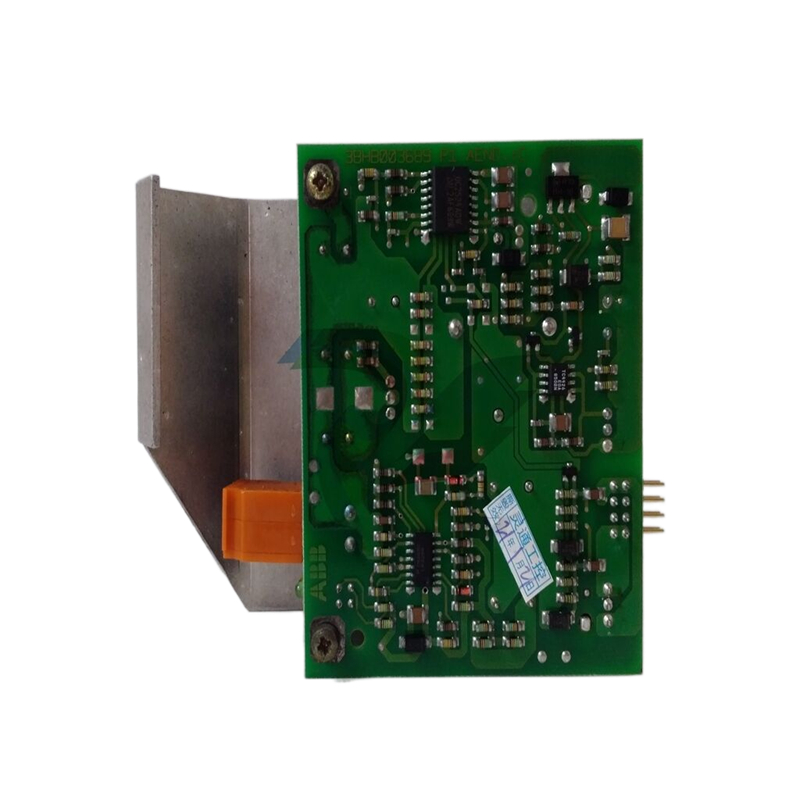

ABB 3BHE021951R0124 High Voltage Inverter Spare Parts

From: | Author:Wang | Time :2024-11-22 | 143 visit: | Share:

ABB 3BHE021951R0124 High Voltage Inverter Spare Parts

Description Requirement Reference
Vibration tests (sinusoidal) Class 2 IEC 60068-2-6 (test Fc)
IEC 60255-21-1
Shock and bump test Class 2 IEC 60068-2-27 (test Ea shock)
IEC 60068-2-29 (test Eb bump)
IEC 60255-21-2
Seismic test Class 2 IEC 60255-21-3
Mechanical durability • 200 withdrawals and
insertions of the plug-in unit
• 200 adjustments of
protection relay's setting
controls
IEEE C37.90-2005
Table 10: Environmental tests
Description Type test value Reference
Dry heat test • 96 h at +55ºC
• 16 h at +85ºC1)2)
IEC 60068-2-2
IEEE C37.90-2005
Dry cold test • 96 h at -25ºC
• 16 h at -40ºC
IEC 60068-2-1
IEEE C37.90-2005
Damp heat test • 6 cycles (12 h + 12 h) at
+25°C…+55°C, humidity
>93%
IEC 60068-2-30
• +55°C, Rh = 95%, 96h IEEE C37.90-2005
Change of temperature test • 5 cycles (3 h + 3 h)
at -25°C...+55°C
IEC60068-2-14
Storage test • 96 h at -40ºC
• 96 h at +85ºC
IEC 60068-2-1
IEC 60068-2-2
IEEE C37.90-2005


Type code
The type code contains information on the specification and configuration of the drive. The first digits from left
show the basic configuration (e.g. DCS880-S01-2000). The optional selections are given thereafter on the name
plate by plus code. The main selections are described below. Not all selections are available for all types.
The technical data and specifications are valid as of going to press. ABB reserves the right to make subsequent
alterations.
The drive's basic type code: DCS880-aab-cccc-ddef + plus code
Product family DCS880
Product type: aa = S0
= R0
= U1
= A0
Standard converter module
Rebuild kit
Upgrade kit
Enclosed converter
Bridge type: b = 1
= 2
Single bridge (2-Q)
2 anti-parallel bridges (4-Q)
Module type: cccc = Rated DC current (IP00)
Rated AC voltage: dd = 04
= 05
= 06
= 07
= 08
= 10
= 12
100 VAC ... 415 VAC
100 VAC ... 500 VAC (IEC), 525 VAC (UL)
270 VAC ... 600 VAC
315 VAC ... 690 VAC
360 VAC ... 800 VAC
450 VAC ... 990 VAC
540 VAC ... 1190 VAC
Power connection: e = X
= L
= R
Standard H1 ... H7
Left side H8
Right side H8
Revision code: f = 0
= A
= B
1st generation
H7: Double fuse
H5/H6: New cooling fan R2E250-RE04-10
Field exciter
configuration:
+0S163 H1 ... H4 without OnBoard field exciter
+S164 H5 and H6 with internal field exciter, supply external
(H5 and H6: 25 A, Rebuild kit: 16 A / 25 A)
Fan voltage:
Standard
Size H4
Fan voltage: 230 V / 1-ph
Application programming: +S551 Memory unit including drive application programming license
SDCS-DSL-H10: +S521 1 DCSLink channel, 0 channels optical power link SDCS-DSL-H10
(H1 ... H4)
Current measurement: +S175 SDCS-CMA-2 (H6 ... H8)
Voltage measurement: +S185 SDCS-PIN-H51 configured for 20 VAC ... 100 VAC (H6 ... H8)
Control panel: +0J404 Without control panel
+J428 Daisy-chain option DPI-H01 kit
+J429 Bluetooth control panel ACS-AP-W
